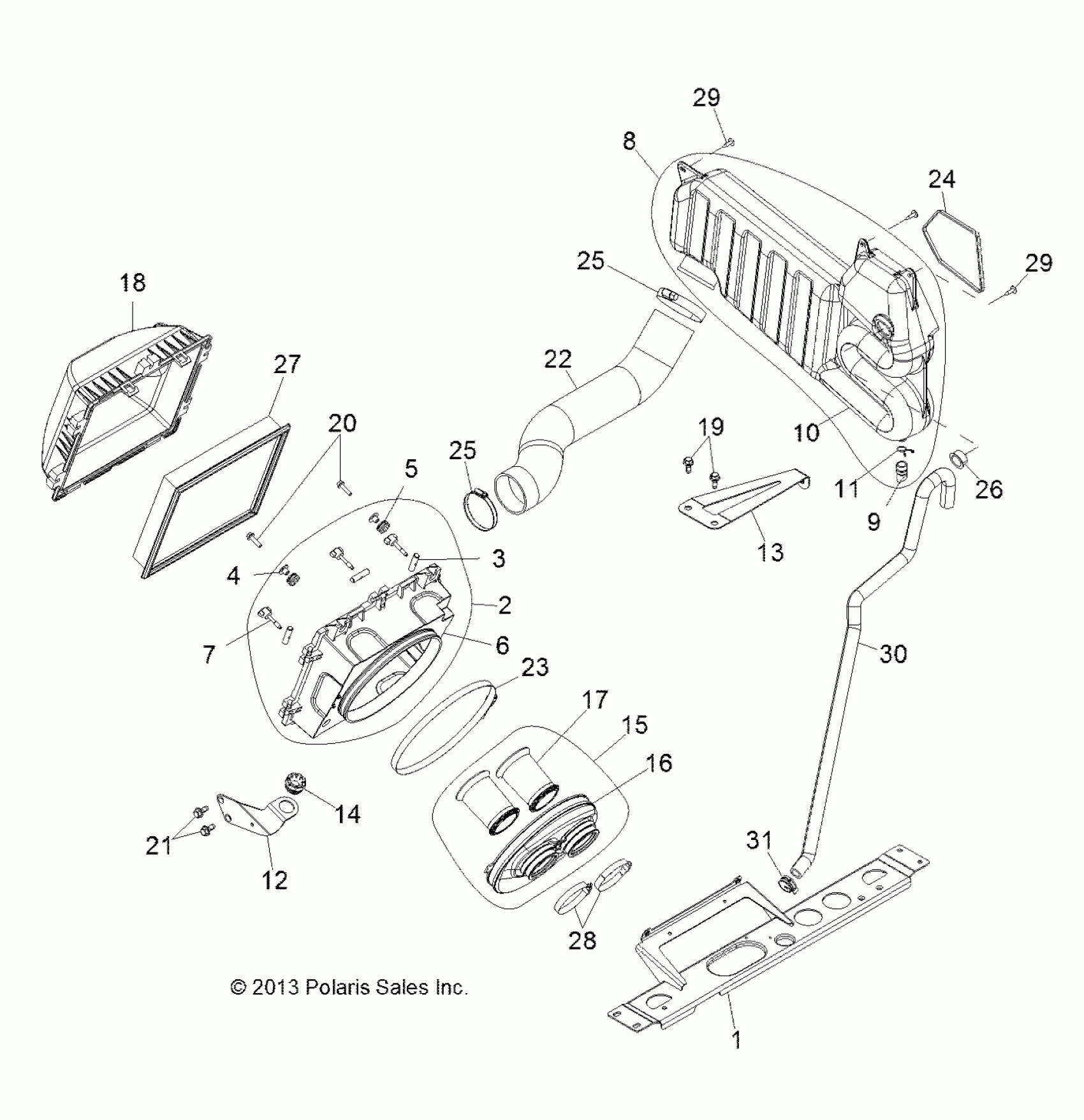

Polaris RZR 900 - Z14JT87AD/9EAO/9EAOL/9EAL ENGINE, AIR INTAKE SYSTEM - Z14JT87AD/9EAO/9EAOL/9EAL (49RGRAIRBOX13RZRXP900) Diagram

#

Description
Price

1

SUPPORT, AIRBOX, BLACK

1017918-329

$151.99

2

ASM., AIR INTAKE, MAIN [INCL. 3-7]

1240698

$95.99

3

ROD, NUT, PIVOT [BUILT 10/16/12 AND AFTER]

5138692

$2.99

4

BUSHING, FLANGE

5137652

$2.39

5

GROMMET, BASE, TOP

5414160

$3.99

6

BASE, AIRBOX

5439632

$67.99

7

KNOB

7081690

$12.79

8

ASM., INTAKE, RESONATOR [INCL. 9-11]

1240634

$151.99

9

Cap, Drain

5412960

$15.19

10

BOX, INTAKE

5438704

Unavailable

11

CLAMP, HOSE

7081488

$6.39

12

BRACKET, MOUNT, AIRBOX, LOWER

5254608

$35.99

13

BRACKET, INTAKE BOX [BUILT 9/01/13 AND BEFORE]

5254859

Unavailable

13

BRACKET, SUPPORT [BUILT 9/02/13 AND AFTER]

5258645

$27.99

14

GROMMET

5412507

$6.39

15

ASM., BOOT, TWIN TB, RND [INCL. 16,17]

5413981

Unavailable

16

BOOT, TWIN TB, RND

5413982

$71.99

17

TUBE, INTAKE

5438562

Unavailable

18

LID, AIRBOX

5438322

$55.99

19

BOLT

7518555

$2.39

20

SCREW

7519342

$1.86

21

BOLT

7518513

$4.79

22

HOSE, INTAKE, LONG

5414284

Unavailable

23

CLAMP, BAND

7081672

$23.99

24

SEAL, INTAKE, FOAM

5813750

$27.99

25

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

25

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

26

BUSHING, PANEL, SNAP

7081697

$2.39

27

ASM., FILTER, INTAKE

7081889

$35.99

28

Clamp, Narrow Band

7080413

$3.19

29

SCREW

7517685

$1.59

29

SCREW

7517685

$1.59

30

LINE, CRANKCASE VENT

5414497

$237.59

31

CLAMP, SPRINGBAND

7080841

$7.19
