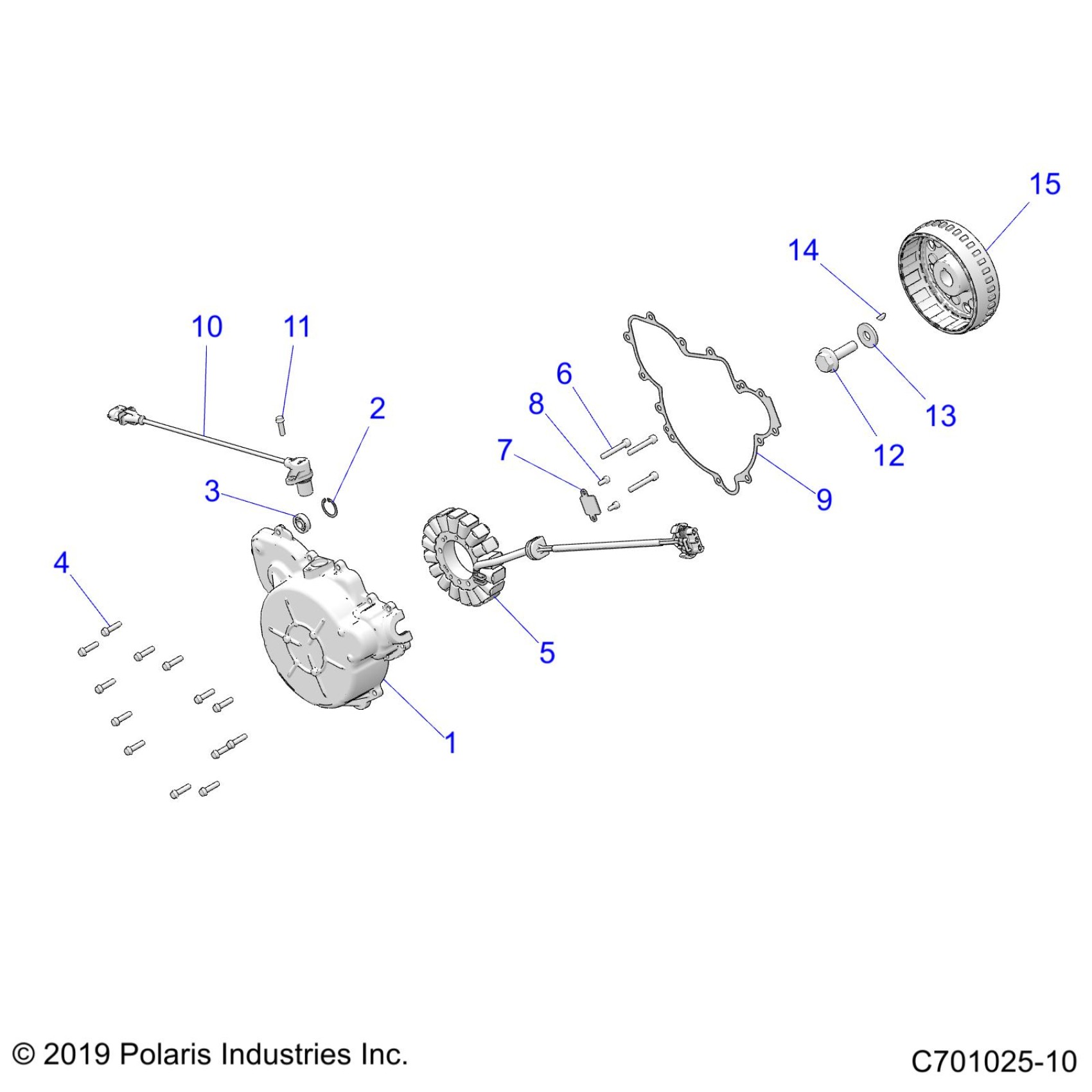

Polaris RZR 900 TRAIL S (R01) - Z23ASA87A2 ENGINE, STATOR and COVER - Z22ASA87A2(C701025-10) Diagram

#

Description

Price

1

ASM-IGN COVER,STARTER BRG [INCL. 2,3]

1206299

$159.75

2

RING-SNAP,DIN472,24X1.2MM

7710654

$23.99

3

BEARING-BALL,9X24X7

3514717

$8.79

4

SCREW-HXFLG,M6X1.0X25,10.9

7519297

$3.99

5

STATOR,560W

4014406

$467.99

6

SCR-M6X1.0X40,HX/SOC/CP-Y/D

7510005

$5.70

7

BRACKET, RETAINER, WIRE

5255473

$7.19

8

SCREW-M5X0.8X10 SOC/CP-D

7517847

$3.19

9

GASKET, COVER, IGNITION

5814160

$39.99

10

SENSOR, CRANK POSITION

2411719

$101.17

11

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.19

12

SCREW-HXFL-M12X1.25X43 12.9

7520178

$27.99

13

WSHR-32X12X4,HARD

7556885

$5.59

14

KEY-WOODRUFF,4X5

7721122

$7.84

15

FLYWHEEL

4014404

$494.99
