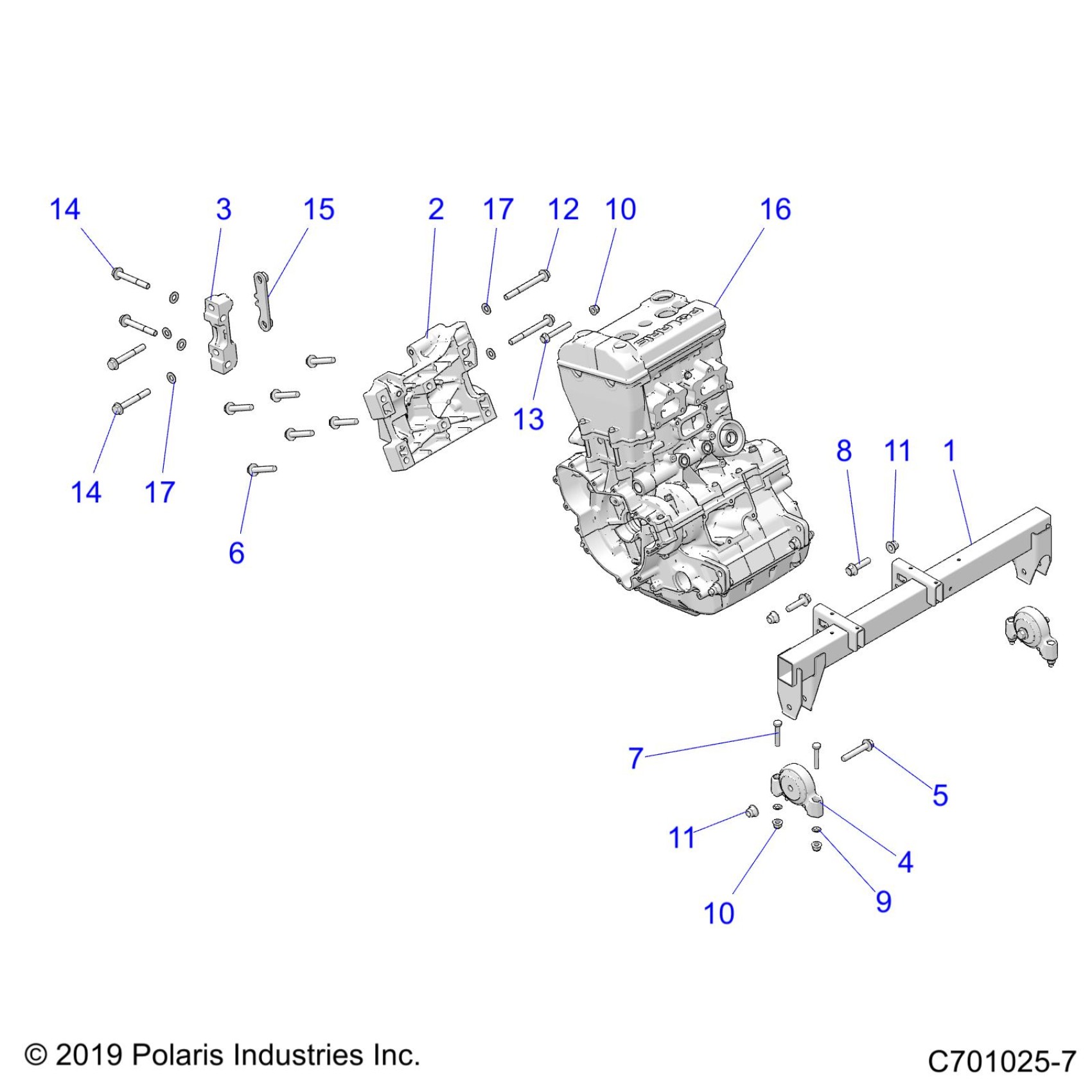

Polaris RZR 900 TRAIL S (R01) - Z23ASA87A2 ENGINE, MOUNTING & LONG BLOCK - Z23ASA87A2(C701025-7) Diagram

WELD-MOUNT,ENGINE,BLK

1018333-329

$153.79

BRKT-TRANSJOINT,MACH

5137795

$174.27

BRACKET, TRANSMISSION JOINT, MACH

5139904

$52.24

MOUNT-ISOLATOR,DRIVELINE

1332955

$72.84

SCR-HXFL-M10X1.25X60 8.8 ZOD

7518563

$3.17

BOLT-M10X1.5X60MM8.8HEXDRILOCK

7520467

$4.76

SCREW-HH M8X1.25X45 8.8 ZOD

7519097

$1.59

SCR-HXFL-M10X1.25X40 8.8 ZOD

7519332

$5.56

NUT-5/16-PAL-Y

7547030

$4.76

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.52

SCR-HXFL-M8X1.25X60 8.8 ZOD

7519298

$3.97

SCR-HXFL-M10X1.25X75 10.9 ZOD

7519286

$7.14

SCR-HXFL-M10X1.25X75 10.9 ZOD

7519286

$7.14

WELD-NUT, PLATE

5259964

$26.17

K-LONG BLOCK 875

2209240

$7,299.99

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98
