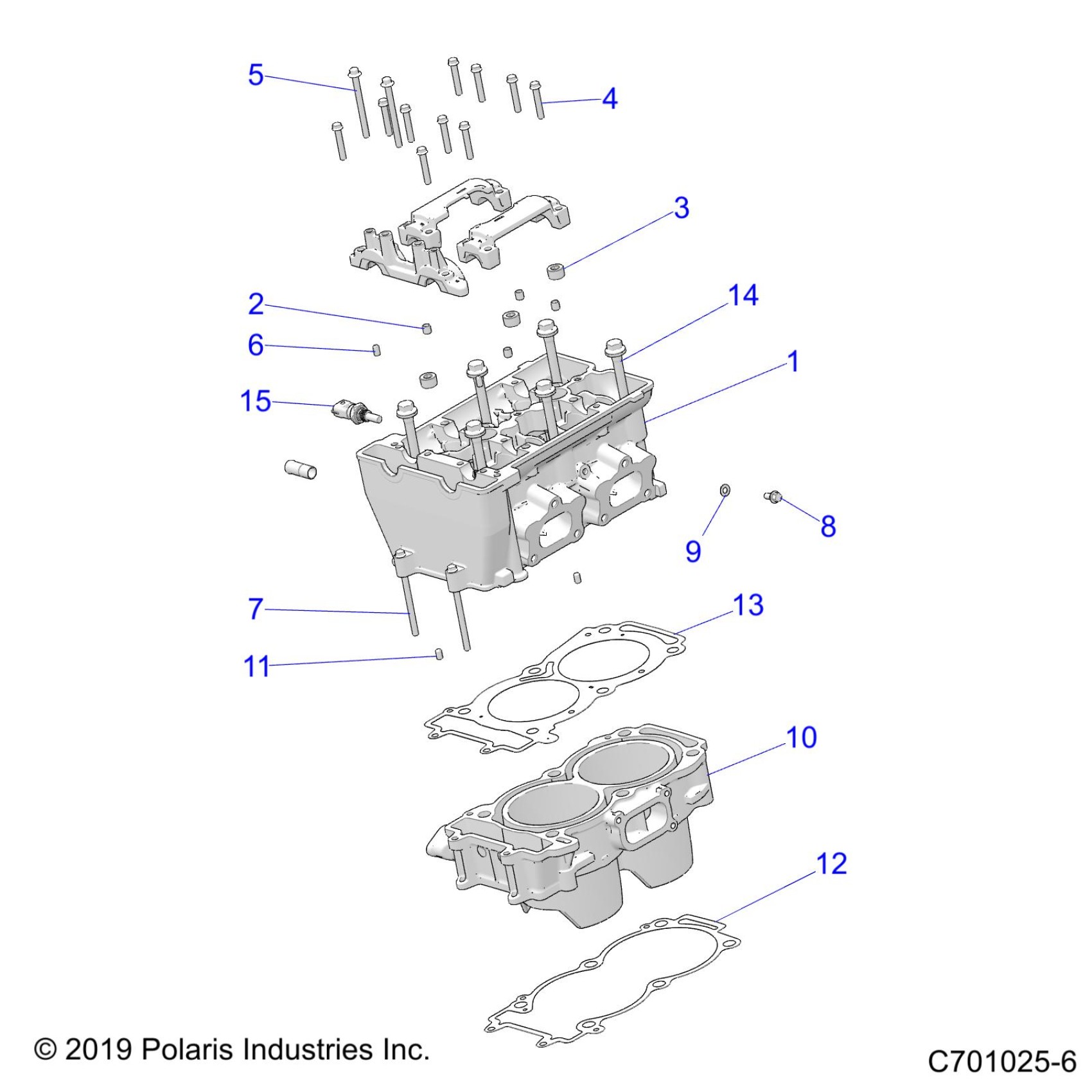

Polaris RZR 900 TRAIL S (R01) - Z23ASA87A2 ENGINE, CYLINDER and HEAD - Z23ASA87A2(C701025-6) Diagram

Description

Price

ASM., CYLINDER HEAD [INCL. 2-6][TO 6/27/2023]

3022798

$1,111.49

ASM-CYLINDER HEAD [INCL. 2-6][FROM 6/27/2023]

3024248

$1,111.49

DOWEL-HOLLOW M8X8

7662247

Unavailable

PLUG-PIPE,M16,DIN

7520284

$24.27

SCREW

7519870

$9.51

SCREW

7519871

$10.32

PIN-DOWEL,M6X10

5137624

$8.99

SCR-HXFLG,M6X1.0X90

7519153

$5.56

SCR-M6X1.0X13,SL/HX/FL-Z,BLEED

7520470

$4.76

WASHER-FLAT,6.15X12X1MM-AL

7555998

$1.19

ASM-CYLINDER,875 [INCL. 11]

3023155

Unavailable

PIN-DOWEL,M6X10

5132835

$2.38

GASKET, BASE, 2 CYL

5253037

$32.37

GASKET, CYLINDER, HEAD

5813737

$72.60

SCR-HXFL,M11X1.25X150 10.9 SEM

7520978

$23.81

SENSOR-THERMISTER

4010644

$91.97
