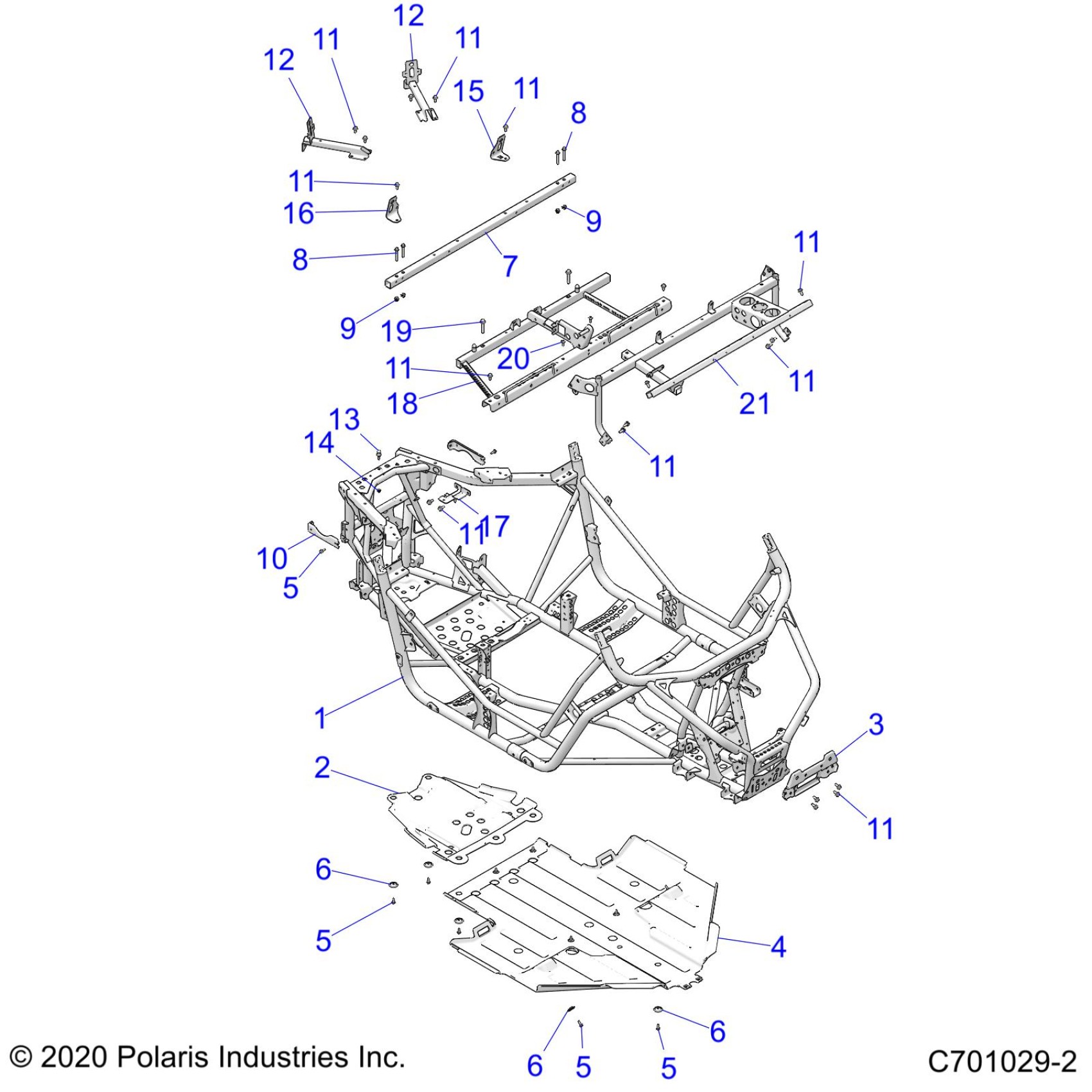

Polaris RZR 900 TRAIL S (R01) - Z23ASA87A2 CHASSIS, MAIN FRAME AND SKID PLATE - Z23ASA87A2(C701029-2) Diagram

#

Description
Price

1

WELD-MAIN FRAME,BLK

1026549-458

$2,626.79

2

PLATE-SKID,REAR,BLK

5456433-070

$175.99

3

BRKT-SUSP MNT,FRT,M.BLK

5259449-458

$51.99

4

PLATE-SKID,BLK

5456434-070

$183.99

5

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

Unavailable

5

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

Unavailable

5

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

Unavailable

5

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

Unavailable

6

WASHER-SKID PLATE

7556065

Unavailable

6

WASHER-SKID PLATE

7556065

Unavailable

6

WASHER-SKID PLATE

7556065

Unavailable

7

ASM-TUBE,TOP FRAME,ECOAT

1024407-329

$83.59

8

SCR-M8X1.25X55,HX/FL-Y

7517281

$8.99

8

SCR-M8X1.25X55,HX/FL-Y

7517281

$8.99

9

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

9

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

10

BRACKET, FASCIA

5259106

$14.39

11

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

Unavailable

11

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

Unavailable

11

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

Unavailable

11

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

Unavailable

11

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

Unavailable

11

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

Unavailable

11

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

Unavailable

11

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

Unavailable

11

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

Unavailable

11

SCR-TFHFL-M8X1.25X20 CHS ZOD

7518555

Unavailable

12

MOUNT, BODY, MATTE BLACK

1020506-458

$59.99

12

MOUNT, BODY, MATTE BLACK

1020506-458

$59.99

13

PLUNGER, BOX, LATCH

5139009

$13.59

14

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

15

TIEDOWN, FRONT, LH, MATTE BLACK

5259103-458

$30.79

16

TIEDOWN,FRONT,RH,BLK

5263590-458

$27.99

17

MOUNT, COIL, MATTE BLACK

5259105-329

$27.99

18

WELD-SEAT BASE,BLK

1020571-329

$195.99

19

SCR-HXFL-M10X1.5X55 8.8 ZY3

7518474

$4.79

20

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.99

21

WELD-DASH,TURBO,S,ECOAT

1024577-329

$307.99
