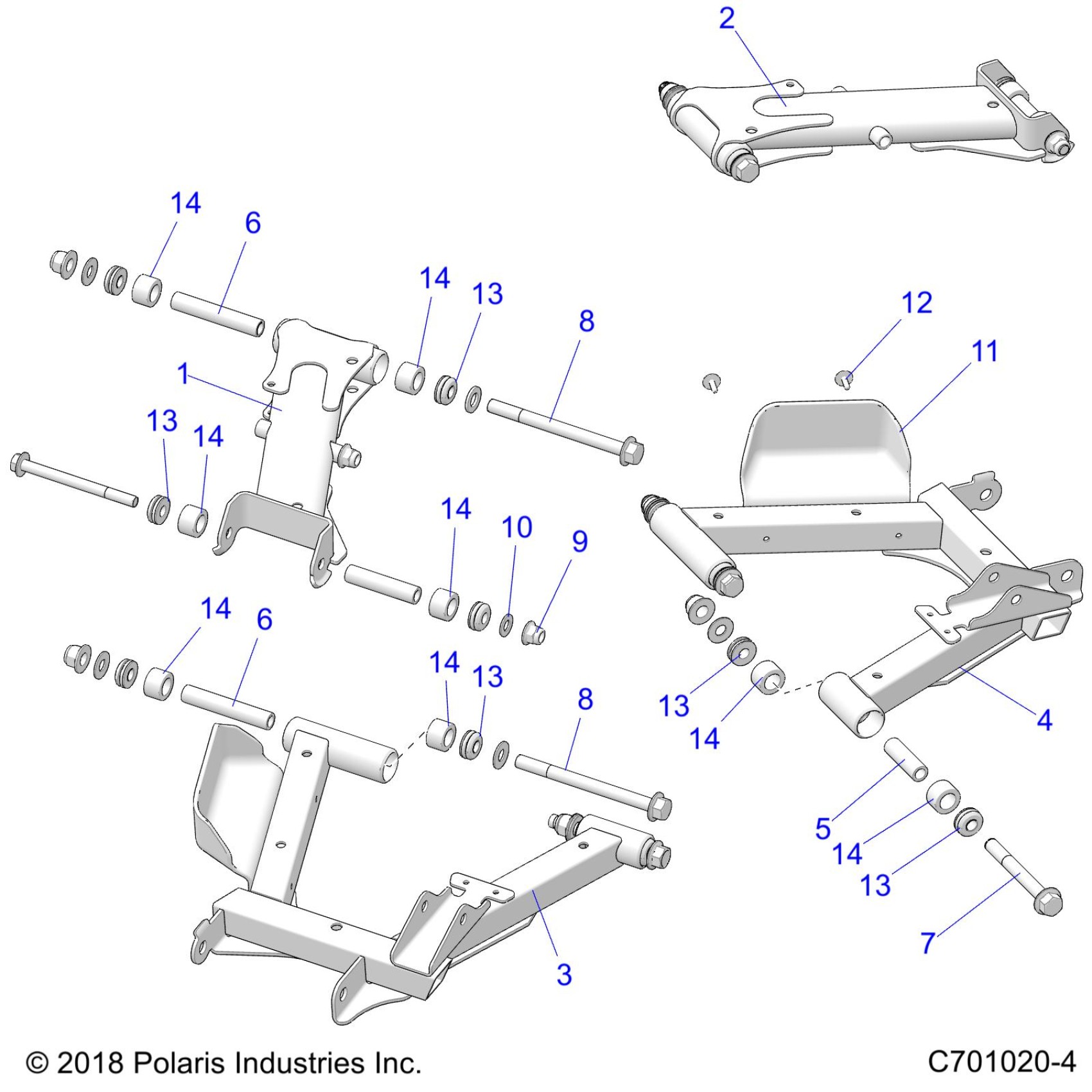

Polaris RZR 900 TRAIL (R02) - Z23A5P87A4/K87A4/A87A2 SUSPENSION, REAR CONTROL ARMS - Z23A5P87A4/K87A4/A87A2(C701020-4) Diagram

WELD-CTRL ARM,UPPER,RR,LH,BL

1021408-458

$121.02

WELD-CTRL ARM,UPPER,RR,RH,BL

1021409-458

$121.02

WELD-CTRL ARM,LWR,RR,LH,BL

1021410-458

$154.90

WELD-CTRL ARM,LWR,RR,RH,BLK

1021411-458

$154.90

SHAFT-PIVOT,SHORT,M10 [TO 2/1/2025]

5139966

$5.65

SHAFT-PIVOT,SHORT,M10 [FROM 2/1/2025]

5144658

$5.65

SHAFT-PIVOT,LONG,M10

5139967

$8.89

SHAFT-PIVOT,LONG,M10

5139967

$8.89

SCR-HXFL-M10X1.25X95 10.9 ZOD

7519043

$9.52

SCR-HH-M10X1.25X140,10.9 ZOD

7519897

$13.49

SCR-HH-M10X1.25X140,10.9 ZOD

7519897

$13.49

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98

GUARD, SHOCK ROD, BLACK

5451898-070

$24.27

RVT-3/16(.251-.375)ST-ST-LF-B

7621467

$1.19

ASM-PIVOT CAP, SEALED, M10

1543611

$5.65

ASM-PIVOT CAP, SEALED, M10

1543611

$5.65

ASM-PIVOT CAP, SEALED, M10

1543611

$5.65

ASM-PIVOT CAP, SEALED, M10

1543611

$5.65

ASM-PIVOT CAP, SEALED, M10

1543611

$5.65

BUSHING-STANDARD, SUSP, M10

5452233

$2.38

BUSHING-STANDARD, SUSP, M10

5452233

$2.38

BUSHING-STANDARD, SUSP, M10

5452233

$2.38

BUSHING-STANDARD, SUSP, M10

5452233

$2.38

BUSHING-STANDARD, SUSP, M10

5452233

$2.38

BUSHING-STANDARD, SUSP, M10

5452233

$2.38

BUSHING-STANDARD, SUSP, M10

5452233

$2.38

BUSHING-STANDARD, SUSP, M10

5452233

$2.38
