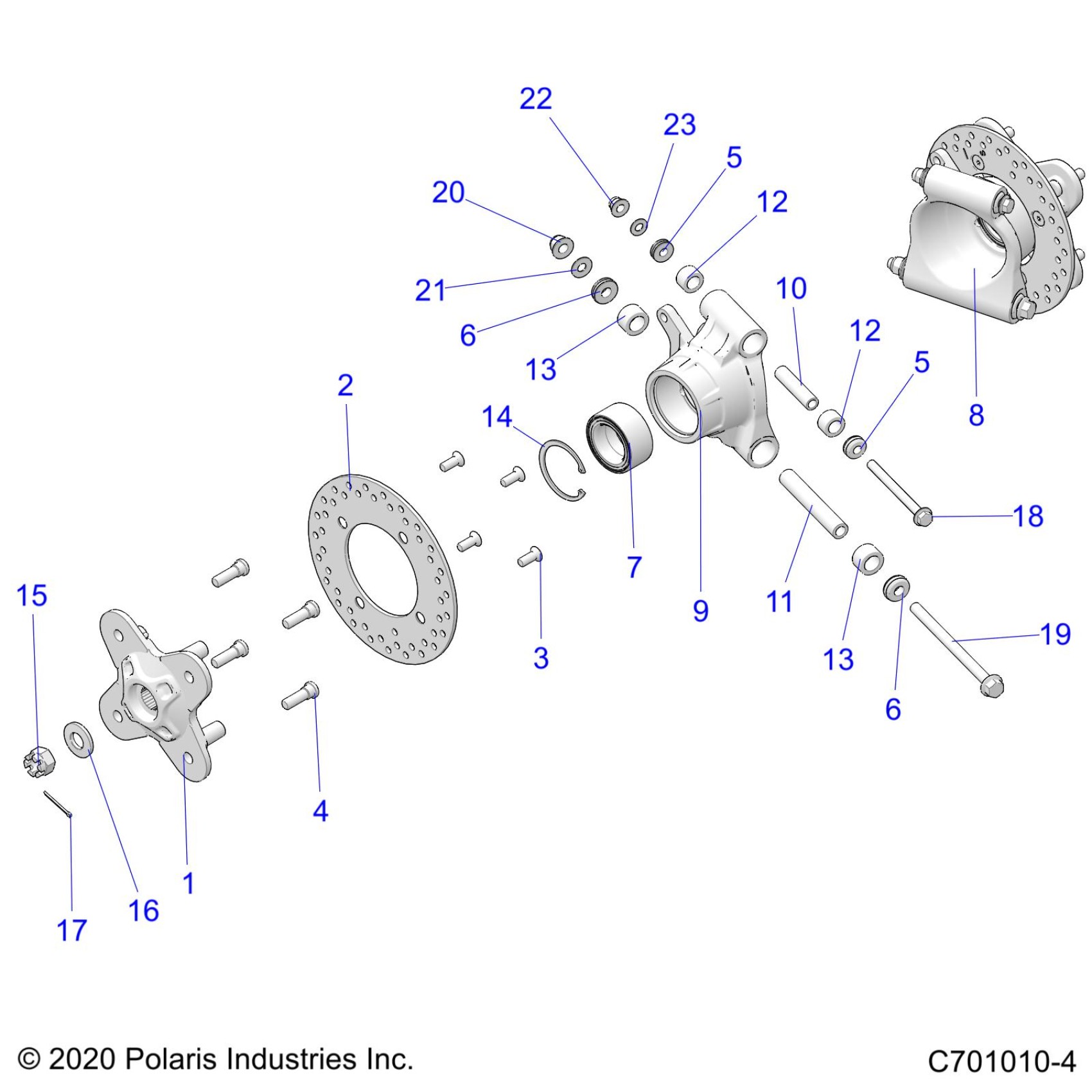

Polaris RZR 900 TRAIL (R02) - Z23A5P87A4/K87A4/A87A2 SUSPENSION, REAR CARRIER - Z23A5P87A4/K87A4/A87A2(C701010-4) Diagram

HUB-WHEEL,MACH,BLK

5142019-458

Unavailable

ROTOR,BRAKE

5263266

$67.99

SCR-M10X1.5X20 8.8 TXCS FL ZOD

7518978

$3.99

STUD-WHEEL,M12-1.5

7519753

$4.79

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

ASM-PIVOT CAP, SEALED, M12

1543612

$5.59

ASM-PIVOT CAP, SEALED, M12

1543612

$5.59

BEARING-BALL,SEALED,44X72X33.1

3514924

$39.99

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.99

CARRIER, BEARING, WHEEL, LH

5139979

$99.99

CARRIER, BEARING, WHEEL, RH

5139980

$99.99

SHAFT-PIVOT, SHORT, M10

5139990

$5.59

SHAFT-PIVOT, LONG, M12

5139991

$8.79

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

BUSHING-STANDARD, SUSP, M12

5452271

$3.19

BUSHING-STANDARD, SUSP, M12

5452271

$3.19

RING-RETAINING,2.875,INTERNAL

7710440

$10.39

NUT-M18X1.5,CASTLE,ZINC/YELLOW

7547337

$1.99

WSHR-AXLE,M18,42X4.5

7557134

$7.99

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.79

SCR-HXFL-M10X1.25X115 10.9 ZOD

7519365

$13.59

SCR-HXFL-M12X1.5X170 10.9 ZOD

7520294

$11.19

NUT-M12X1.5, FLG, NYLOC-OLIVE D

7547334

$4.79

WASHER-7/16 SAE,STF,THRU-HRD-Y

7556212

$8.79

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99
