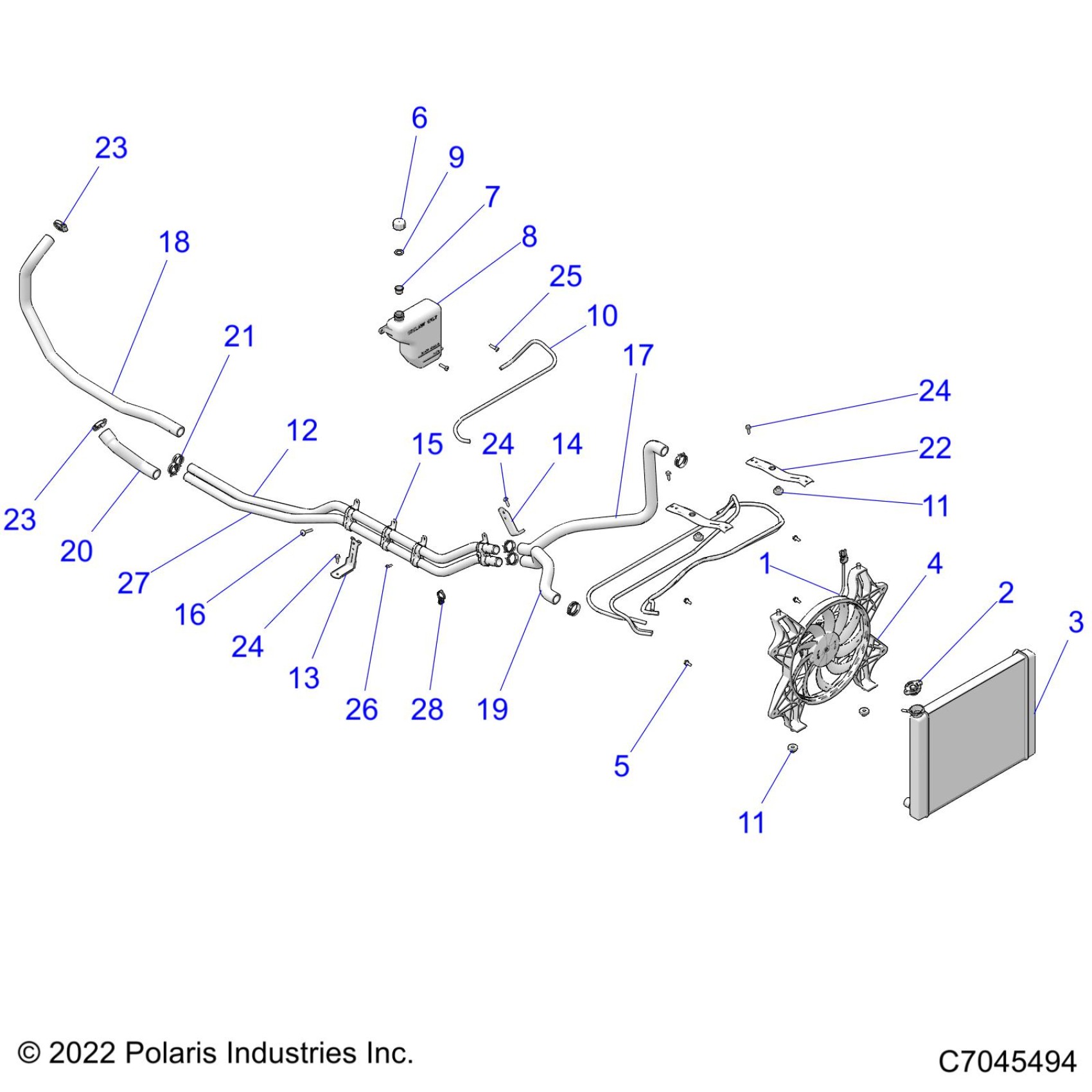

Polaris RZR 900 TRAIL (R02) - Z23A5P87A4/K87A4/A87A2 ENGINE, COOLING SYSTEM - Z23A5P87A4/K87A4/A87A2(C7045494) Diagram

#

Description
Price

1

ASM., RADIATOR [INCL. 2-5]

1240712

$545.99

2

CAP

1240694

$39.99

3

ASM., RADIATOR, CORE

1240745

$440.69

4

FAN-ASSEMBLY

2412447

$239.99

5

BOLT, M6X15MM

7519585

$9.59

6

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

7

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

8

TANK-SURGE

5439202

$91.99

9

GASKET-OVERFLOW CAP

5810279

$2.41

10

FUEL LINE-95 CENTIMETERS

8450003-95

Unavailable

11

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.39

11

GROMMET-FLANGED,.36X.56X1.06

7052028

$6.39

12

TUBE-COOLANT,1"

5141611

$53.24

13

BRACKET, COOLANT TUBE, BLACK

5259433-329

$27.99

14

BRACKET, COOLANT TUBE, BLACK

5260766-329

$27.99

15

BRACKET-COOLANT TUBE

5451221

$8.79

16

SCR-TXTH-M6X1.0X50, 8.8, ZPB

7519001

$3.99

17

HOSE, UPPER, RADIATOR

5414528

$63.99

18

HOSE, ENGINE OUTLET, REAR

5415451

$43.99

19

HOSE, LOWER, RADIATOR, LONG

5414532

$43.99

20

HOSE, ENGINE INLET, REAR

5414533

$31.99

21

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

22

BRKT-UPR RAD MNT [FROM 12/15/2024]

5276397

$31.99

22

BRACKET, UPPER RADIATOR MOUNT, BLACK [TO 12/15/2024]

5256879-329

$31.99

23

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

23

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

24

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

24

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

24

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

25

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.79

26

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

27

TUBE-COOLANT,1"

5141612

$62.92

28

CLIP- EDGE, 1-3MM THICKNESS

7082427

$5.59
