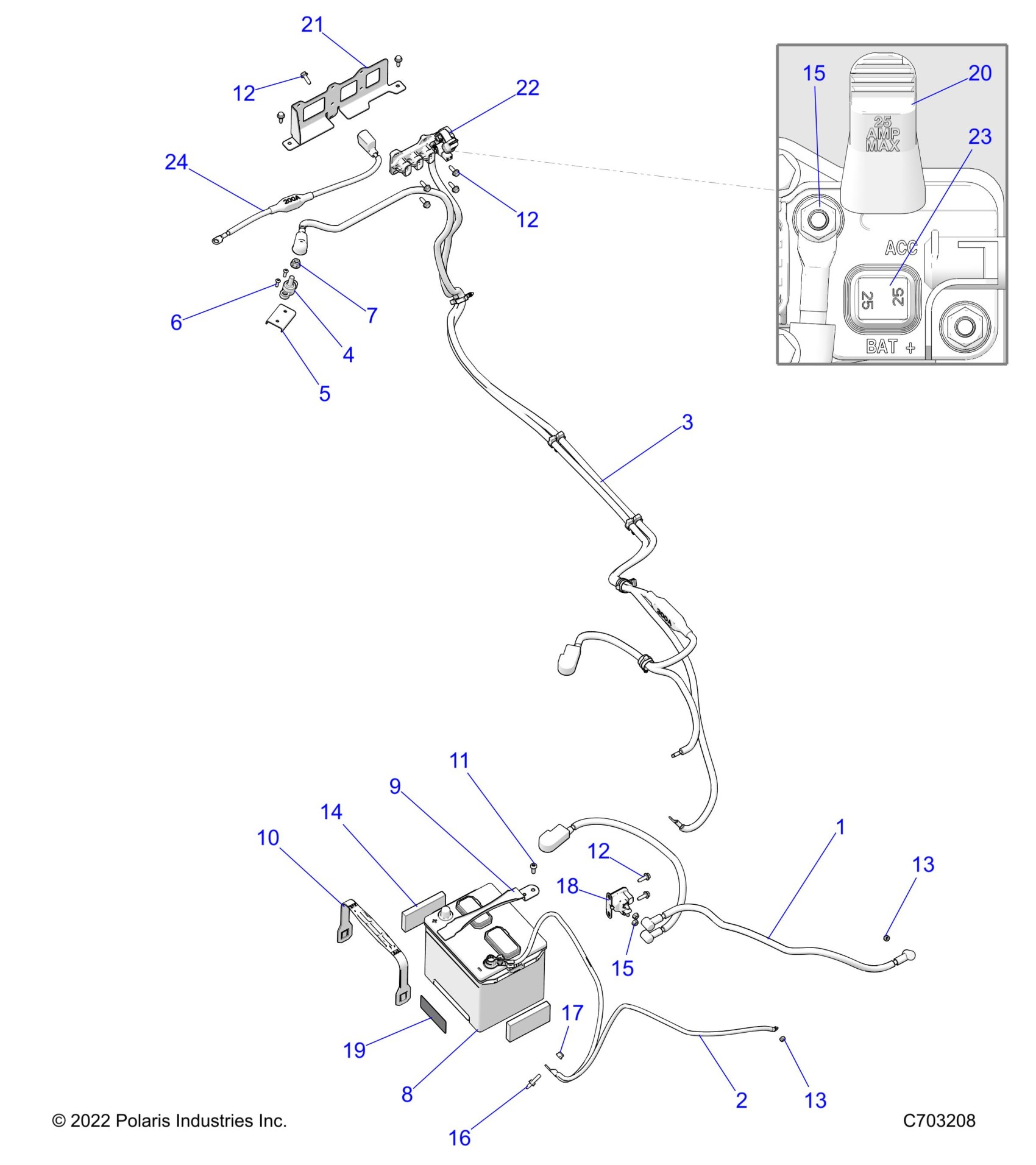

Polaris RZR 900 TRAIL (R02) - Z23A5P87A4/K87A4/A87A2 ELECTRICAL, BATTERY - Z23A5P87A4/K87A4/A87A2(C703208) Diagram

CABLE, START TO SOLENOID

4015500

$43.99

CABLE, GROUND

4015498

$43.99

CABLE-SET,PRI PWR,FUSED

4019181

$171.99

BLOCK-JUNCTION

4011615

$27.99

BRKT-MTG,B+ POST,BLK

5264769-329

$11.99

SCR-#10-24X5/8PN/TR-RDTORX-Y

7517756

$1.49

NUT-FLANGED,3/8-16 NYLON-Z

7547180

$2.39

BATTERY-575 CCA,FLOODED,FILLED

4014132

Unavailable

BATTERY-HD,AGM,SEALED,R2 [HD OPTION]

4081855

$183.99

STRAP, BATTERY, MAIN, BLACK

5257312-329

$19.99

STRAP, BATTERY, LIFT

5450916

$5.59

SCR-TXPH-#14 X .75 HI-LO RIE

7519731

$3.99

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

Unavailable

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

Unavailable

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

Unavailable

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

PAD, BATTERY, FOAM

5814037

Unavailable

NUT-HXFLGHD, M6, SERRATED

7547270

$3.99

NUT-HXFLGHD, M6, SERRATED

7547270

$3.99

STUD-M6X1.0X19-M6 TAPTITE

7519333

$7.99

NUT-M6 FLANGE,NYLOC

7547274

$1.49

SOLENOID-STARTER,SEALED

4014655

$49.99

DECAL-BATTERY,POLARIS

7177052

$4.79

COVER,TB,25A,JCASE

5456244

$12.79

BRKT-MOUNT,PULSE,BLK

5270242-458

$43.99

BLOCK-TERMINAL,3 POS

4018346

$43.99

FUSE-CARTRIDGE,25A

4018635

$8.79

CABLE-JUMPER,ACCY,FUSED

4080116

$63.99
