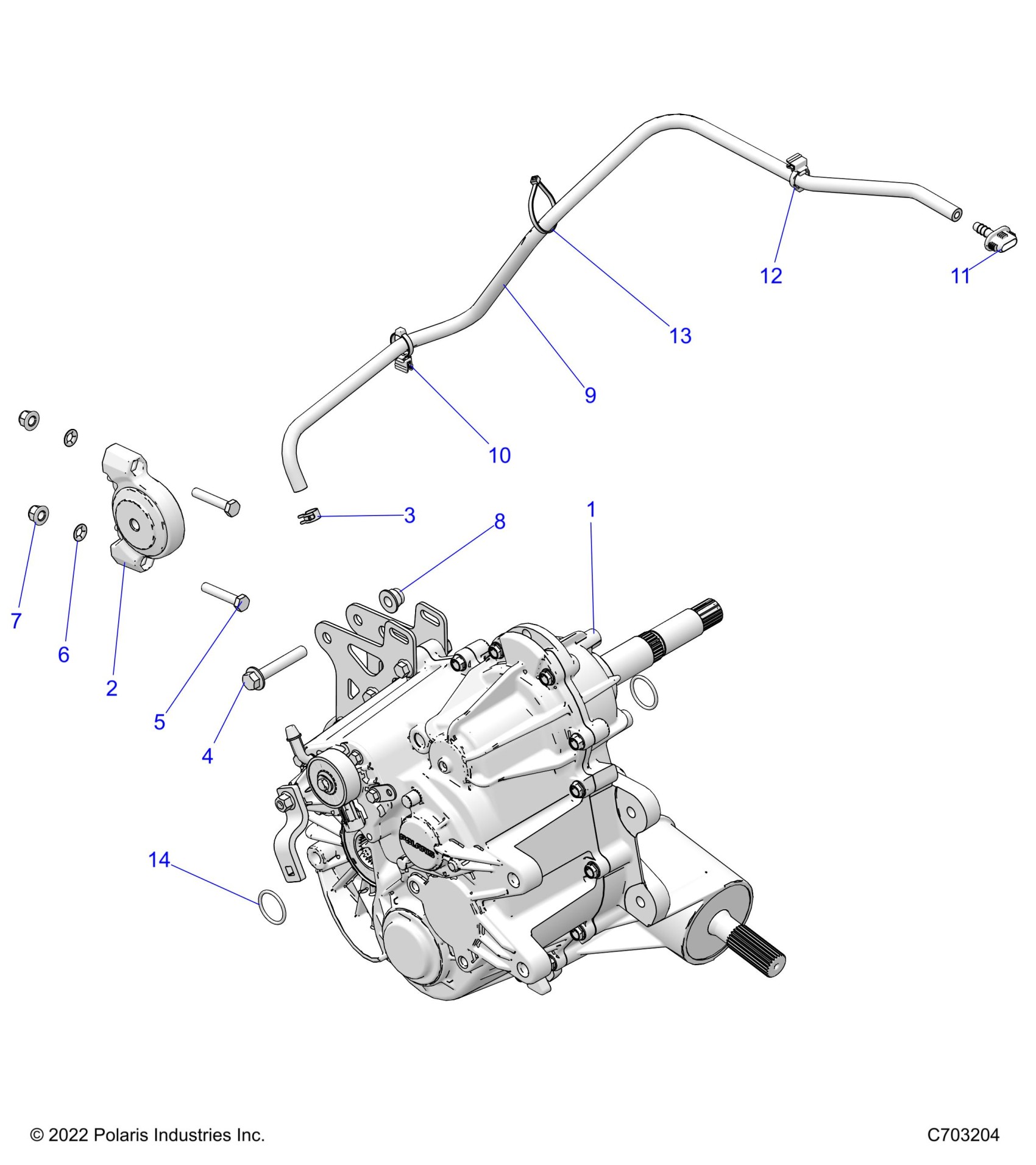

Polaris RZR 900 TRAIL (R02) - Z23A5P87A4/K87A4/A87A2 DRIVE TRAIN, MAIN GEARCASE MOUNTING - Z23A5P87A4 (C703204) Diagram

#

Description

Price

1

ASM-GEARCASE,COMPLETE

-------

Unavailable

2

MOUNT-ISOLATOR,DRIVELINE

1332955

$71.99

3

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

4

SCR-HXFL-M10X1.25X60 8.8 ZOD

7518563

$3.19

5

SCREW-HH M8X1.25X45 8.8 ZOD

7519097

$1.59

6

NUT-5/16-PAL-Y

7547030

$4.79

7

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

8

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

9

FUEL LINE 1/4" SAE #30R7, 100CM

8450040-100

Unavailable

10

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

11

FITTING-VENT LINE

5453465

$5.59

12

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

13

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

14

O-RING,28.24X2.62,VITON,60A [K87A4]

5143247

$5.60
