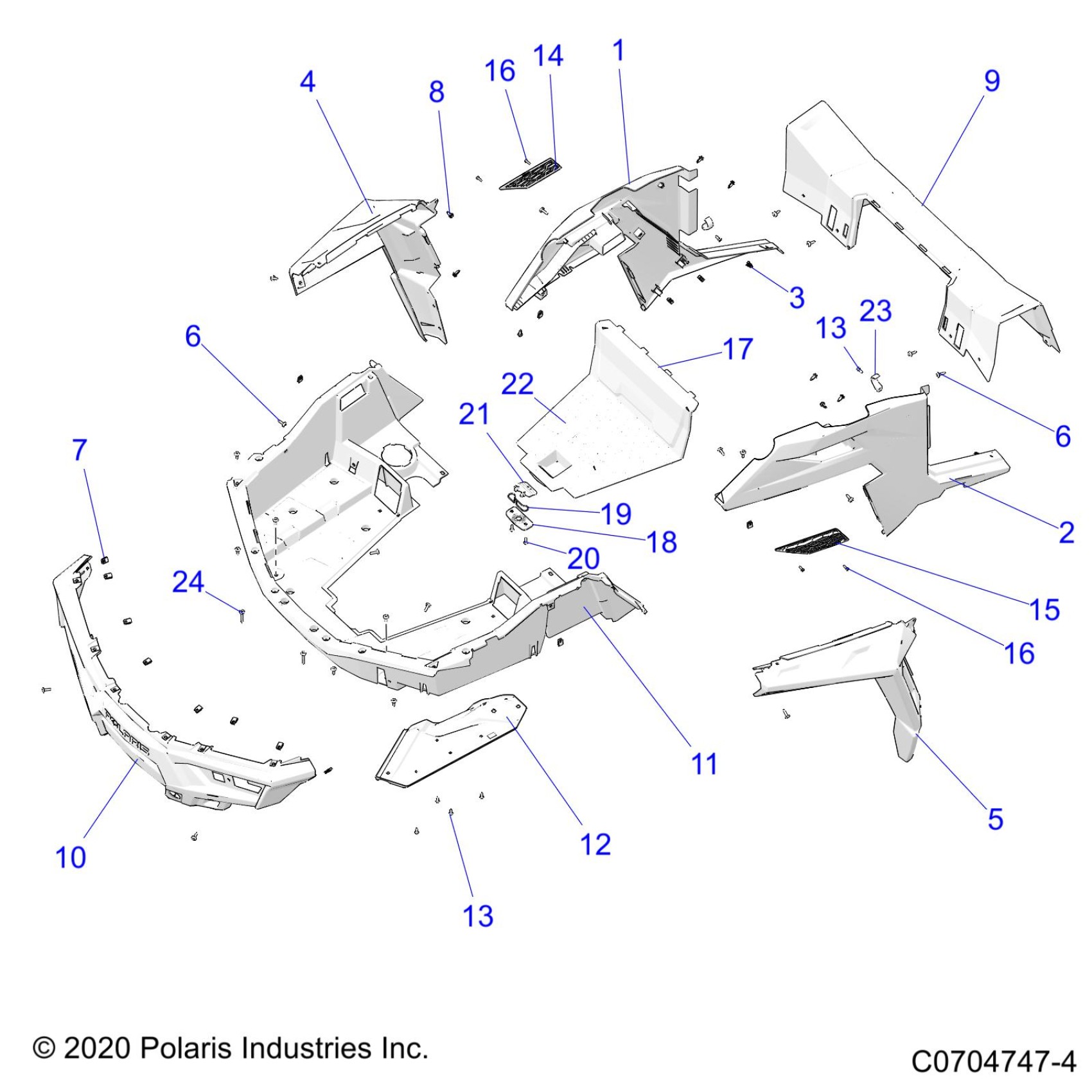

Polaris RZR 900 TRAIL (R02) - Z23A5P87A4/K87A4/A87A2 BODY, REAR RACK AND FENDERS - Z23A5P87A4/K87A4/A87A2(C0704747-4) Diagram

#

Description
Price

1

ASM-FNDR,RR,CLIP,LH,NYL,G.GRY [P87A4] [K87A4] [INCL. QTY 3 OF 3] [GHOST GRAY]

2638059-728

Unavailable

1

ASM-FENDER,REAR,CLIP,LH,NYLWHT [A87A2] [INCL. QTY 3 OF 3] [WHITE LIGHTING]

2638059-599

Unavailable

2

ASM-FNDR,RR,CLIP,RH,NYL,G.GRY [P87A4] [K87A4] [INCL. QTY 3 OF 3] [GHOST GRAY]

2638060-728

Unavailable

2

ASM-FENDER,REAR,CLIP,RH,NYLWHT [A87A2] [INCL. QTY 3 OF 3] [WHITE LIGHTING]

2638060-599

Unavailable

3

CLIP-DASH,TRIM,METAL

7519806

$3.99

4

FENDER, REAR FLAIR, LH, BLACK

5439776-070

$43.99

5

FENDER, REAR FLAIR, RH, BLACK

5439777-070

$43.99

6

SCR-TXTH-M6X1.0X25 ZFB

7519650

Unavailable

6

SCR-TXTH-M6X1.0X25 ZFB

7519650

Unavailable

7

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

Unavailable

8

RIVET-TUFLOK,.315-.325X.787

7661855

Unavailable

9

HOUSING, AIR INTAKE, BLACK

5454276

$131.99

10

FASCIA, REAR, BLACK

5451117-070

$401.69

10

FASCIA-REAR,ROUTER,BLK [K87A4]

5456463-070

Unavailable

11

ASM-REAR BOX,BLK [INCL. 13-14]

2637552

Unavailable

12

SHIELD-BOX MOUNT,INNER

5263555

$39.99

13

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

13

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

14

GRILL-INTAKE COVER,LH,BLK

5457514-070

$7.99

15

GRILL-INTAKE COVER,RH,BLK

5457515-070

$7.99

16

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

16

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.49

17

ASM-PANEL-BOX,ACCESS [INCL. 18-22, WARNING DECAL]

2636748

$103.99

18

LATCH, COVER PLATE, BLACK

5450510-070

$4.79

19

SPRING-LATCH,SEAT

7082653

$33.43

20

SCR-TXPH-#14X3/4 HI/LO CLR

7519290

$3.99

21

HANDLE-SEAT BASE LATCH

5437121

$4.84

22

PANEL-BOX,ACCESS

5454275

$91.99

23

BRKT-J MOUNT,INJ,RZN

5451472

$15.99

24

SCR-TXTH-M6X1.0X50 RIE

7519841

$2.39
