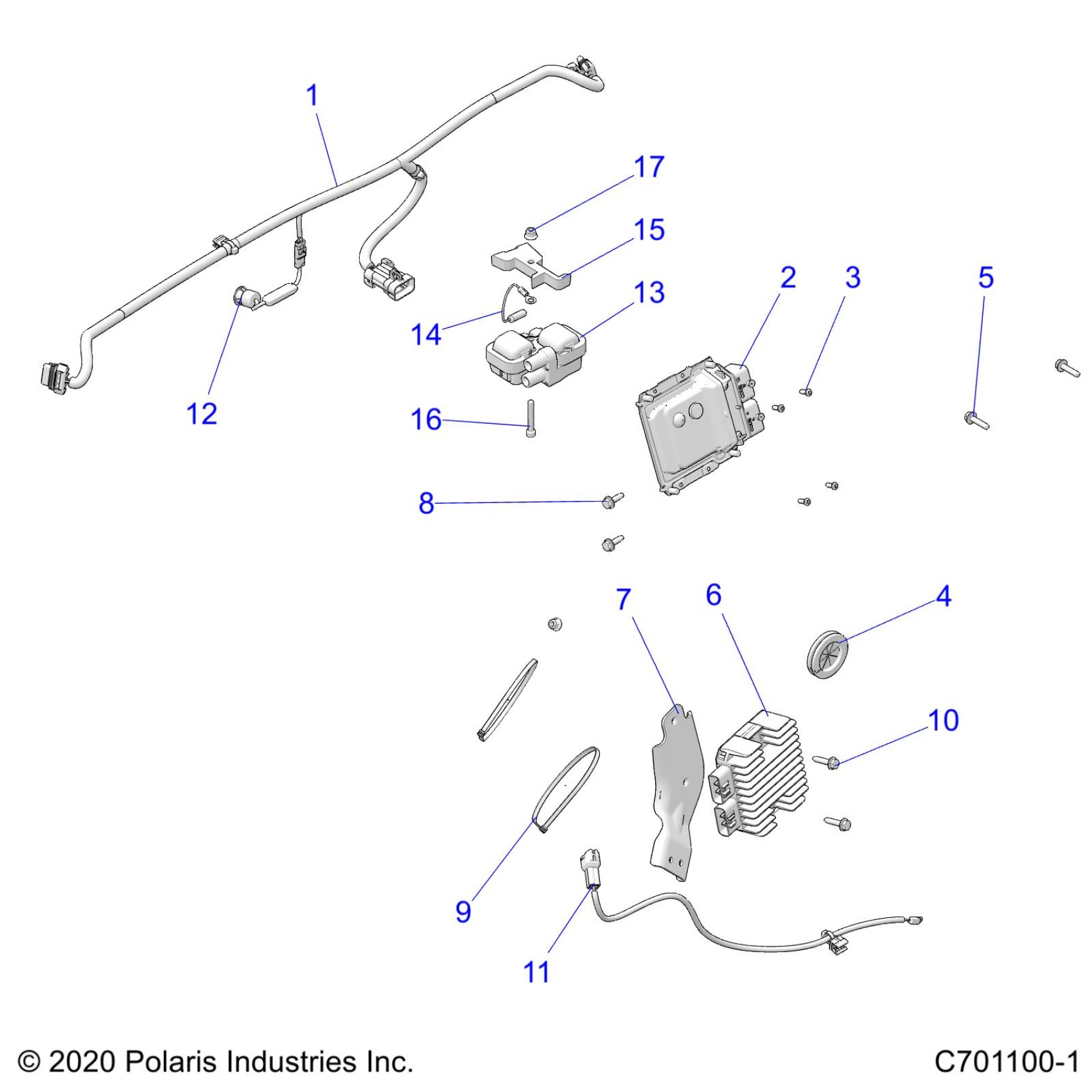

Polaris RZR 900 EPS RC (R04) - Z20A5K87BG ELECTRICAL, ECM, REGULATOR - Z20A5K87BG (C701100-1) Diagram

#

Description
Price

1

HARNESS-BOX,RZR,64,CAMERA

2415211

$79.99

2

ECM-HARD,ME17,2CYL,250K

4014125

$749.99

3

SCR-#10X1/2-HI/LO-PN-T25, TRX-M

7519091

$3.17

4

GROMMET, ELECTRICAL, CAB

5414440

$7.14

5

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

6

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$156.74

7

BRKT-MOUNT,REGULATOR,ECOAT

5264572-329

$44.99

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

9

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

10

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.99

11

HARNESS-TEMP SENSOR

2413743

$74.99

12

CAM-MIRROR,CAMERA,APX

4015873

$251.74

13

COIL-EFI

4010425

$242.84

14

JUMPER, COIL GROUND

4014422

$32.37

15

SPACER-COIL MOUNT

5436577

$3.97

16

SCR-M6X1.0X40,HX/SOC/CP-B

7518780

$3.97

17

NUT-M6 FLANGE,NYLOC

7547274

$1.19
