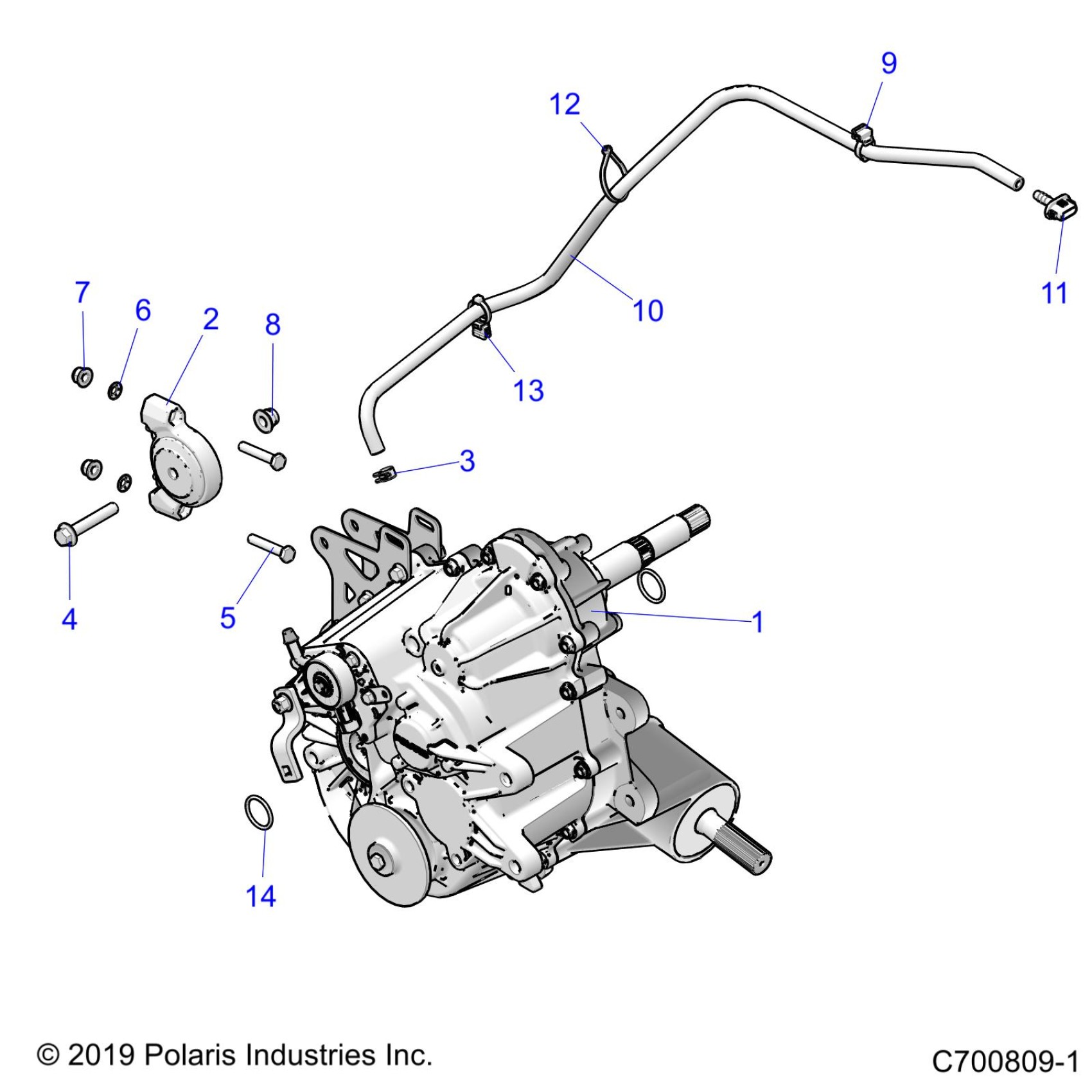

Polaris RZR 900 EPS RC (R04) - Z20A5K87BG DRIVE TRAIN, MAIN GEARCASE MOUNTING - Z20A5K87BG (C700809-1) Diagram

ASM., GEARCASE, COMPLETE

-------

Unavailable

MOUNT-ISOLATOR,DRIVELINE

1332955

$71.99

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

SCR-HXFL-M10X1.25X60 8.8 ZOD

7518563

$3.19

SCREW-HH M8X1.25X45 8.8 ZOD

7519097

$1.59

NUT-5/16-PAL-Y

7547030

$4.79

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

FUEL LINE 1/4" SAE #30R7, 100CM

8450040-100

$59.99

FITTING-VENT LINE

5453465

$5.59

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

CLIP, EDGE, HARNESS [NOT ILLUSTRATED]

7081890

$10.39

O-RING,28.24X2.62,VITON,60A

5143247

$5.60
