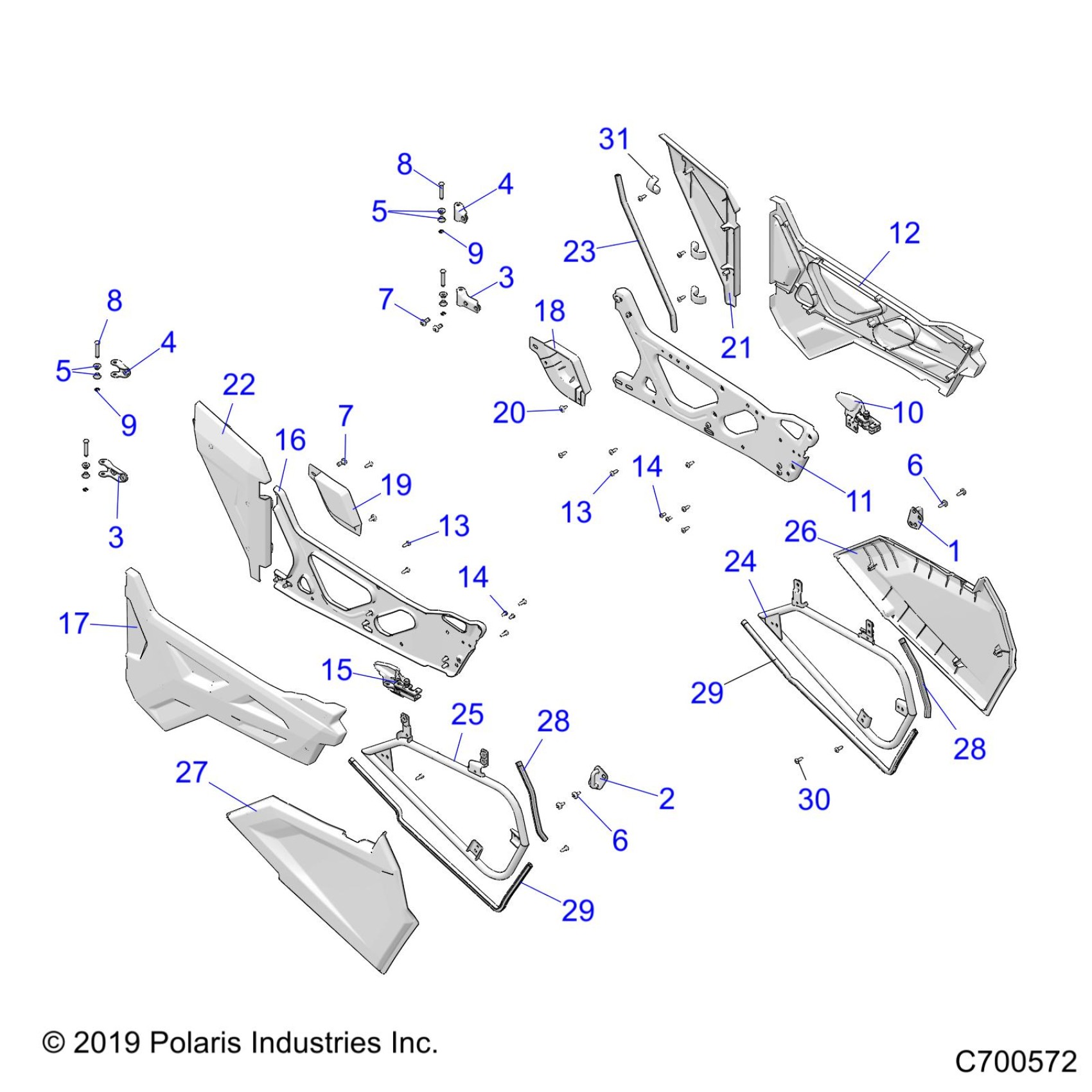

Polaris RZR 900 EPS RC (R04) - Z20A5K87BG BODY, DOORS - Z20A5K87BG (C700572) Diagram

#

Description
Price

1

ASM., STRIKER, LH

1021237

$39.99

2

ASM., STRIKER, RH

1021238

$39.99

3

BRACKET, DOOR, HINGE

5258008

Unavailable

3

BRACKET, DOOR, HINGE

5258008

Unavailable

4

BRACKET, DOOR HINGE, UPPER

5259048

$11.19

4

BRACKET, DOOR HINGE, UPPER

5259048

$11.19

5

BUSHING, DOOR, PIVOT

5450592

$2.39

5

BUSHING, DOOR, PIVOT

5450592

$2.39

6

SCREW-TXTH-M6X1.0X20 T40 ZPB

7519112

$3.19

6

SCREW-TXTH-M6X1.0X20 T40 ZPB

7519112

$3.19

7

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

7

SCR-TXTH-M8X1.25X20 8.8 ZB3 P3

7519997

$3.99

8

PIN, DOOR, HINGE

7662138

$4.79

8

PIN, DOOR, HINGE

7662138

$4.79

9

E-CLIP,M6, DIN 6799

7710466

$3.19

9

E-CLIP,M6, DIN 6799

7710466

$3.19

10

ASM-LATCH,DOOR,LH

2637286

$71.99

11

STAMPING-DOOR FRAME,50,LH,BLK

5263220-458

$107.99

12

DOOR, SKIN, LH

5453466

$119.99

13

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

13

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.19

14

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

14

SCREW-TXBH-M6X1.0X12 8.8 ZPB D20

7519063

$3.99

15

ASM-LATCH,DOOR,RH

2637287

$71.99

16

STAMPING-DOOR FRAME,50,RH,BLK

5263221-458

$107.99

17

DOOR, SKIN, RH

5453467

$119.99

18

DOOR SKIN EXTENDER,LH

5453052

$11.99

19

DOOR SKIN EXTENDER,RH

5453053

$11.99

20

SCR-M6X1X16 TR/TX-M

7518936

$3.99

21

ASM., BOLSTER, LH

2635693

$79.99

22

ASM., BOLSTER, RH [INCL. 23]

2635694

$79.99

23

SEAL-WTHRSTRP,BOLSTER,RZN

5522024-450

$43.99

24

WELD-MNT,DOOR,LWR,LH,50,APX

1020598

$89.59

25

WELD-MNT,DOOR,LWR,RH,50,APX

1020599

Unavailable

26

PNL-DOOR,POLY,LWR,LH,50,APX

5451343

$203.19

27

PNL-DOOR,POLY,LWR,RH,50,APX

5451344

$203.19

28

SEAL-WTHRSTRP,LWR,DR,50,APX

5522024-221

Unavailable

28

SEAL-WTHRSTRP,LWR,DR,50,APX

5522024-221

Unavailable

29

SEAL-WTHRSTRP,LWR,DR,50,APX

5522024-778

$47.99

29

SEAL-WTHRSTRP,LWR,DR,50,APX

5522024-778

$47.99

30

SCREW-HXBH-M8X1.25X16 10.9 ZPB

7517484

$4.79

31

BRKT-J MOUNT,INJ,RZN

5451472

$15.99
