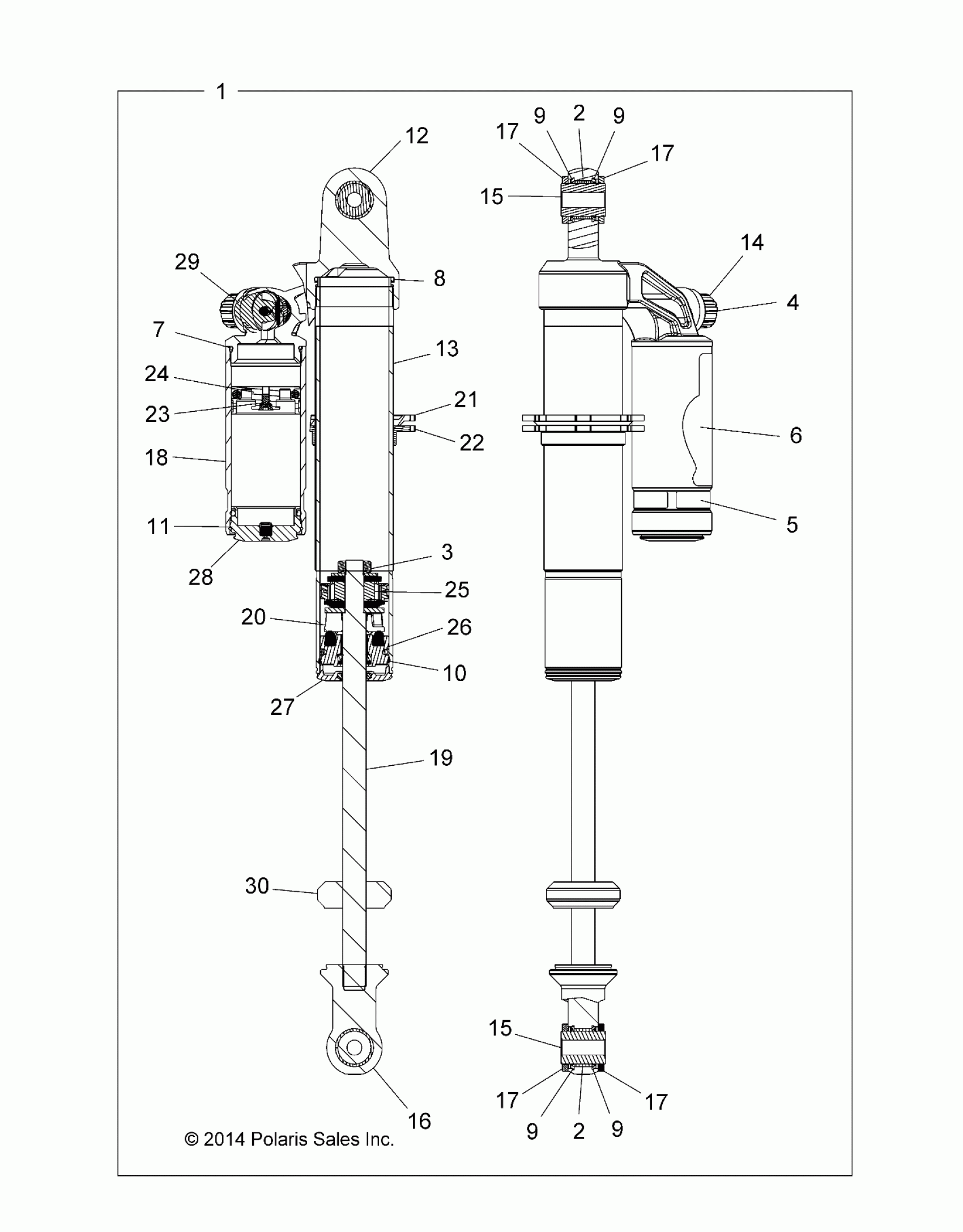

Polaris RZR 900 60 INCH ALL OPTIONS - Z15VBA87AJ/LJ/E87AK/AM/AT/LT/AL/AV SUSPENSION, REAR SHOCK - Z15VBA87AJ/LJ/E87AK/AM/AT/LT/AL/AV (49RGRSHOCKRR7044208) Diagram

#

Description
Price

-

K-SEAL REBUILD

1501210

$94.99

1

SHOCK, REAR, PIGGY BACK [INCL. ALL]

7044243

$899.99

1

SHOCK, REAR, PIGGY BACK [INCL. ALL]

7044208

$899.99

2

BUSHING, EYELET

1501010

$19.84

2

BUSHING, EYELET

1501010

$19.84

3

NUT, CONTROL LOCK

1500871

$23.81

4

SCREW

1501011

$13.49

5

DECAL, PERFORMANCE SERIES

1501012

$15.37

6

DECAL, RESERVOIR

1501013

$11.32

7

O-RING,.103W-1.737ID

1500623

$6.46

8

O-RING

1500510

$6.46

9

SEAL, WEATHER

1501014

$8.89

9

SEAL, WEATHER

1501014

$8.89

9

SEAL, WEATHER

1501014

$8.89

9

SEAL, WEATHER

1501014

$8.89

10

RING, RETAINING

1500236

$9.52

11

RING-RETAINING, WIRE 2.050

1501015

$9.52

12

BODY, CAP, PIGGY BACK

1501017

$244.99

13

BODY

1501018

$79.99

14

KNOB, LOW SPEED

1501019

$11.32

15

SLEEVE

1501020

$44.51

15

SLEEVE

1501020

$44.51

16

EYELET, SHAFT

1501021

$48.87

17

EYELET, SPACER

1501022

$6.35

17

EYELET, SPACER

1501022

$6.35

17

EYELET, SPACER

1501022

$6.35

17

EYELET, SPACER

1501022

$6.35

18

RESEVOIR, 5' THD

1501023

$64.99

19

SHAFT

1501024

$118.74

20

SPACER, SHAFT

1501025

$9.70

21

RING, PRELOADED, BACK

1500872

$48.56

22

RING, PRELOAD

1500873

$52.60

23

SCREW, W/O-RING

1500161

$44.99

24

ASM., PISTON, FLOAT

1501026

$54.99

25

ASM., VALVING

----

Unavailable

26

ASM., BEARING

1500940

$114.99

27

ASM., BEARING, CAP

1500835

$109.99

28

ASM., END CAP

1501027

$114.99

29

ASM., DAMPING, ADJUSTER LSC

1501006

Unavailable

30

BUMPER, BLACK

1500866

$32.37
