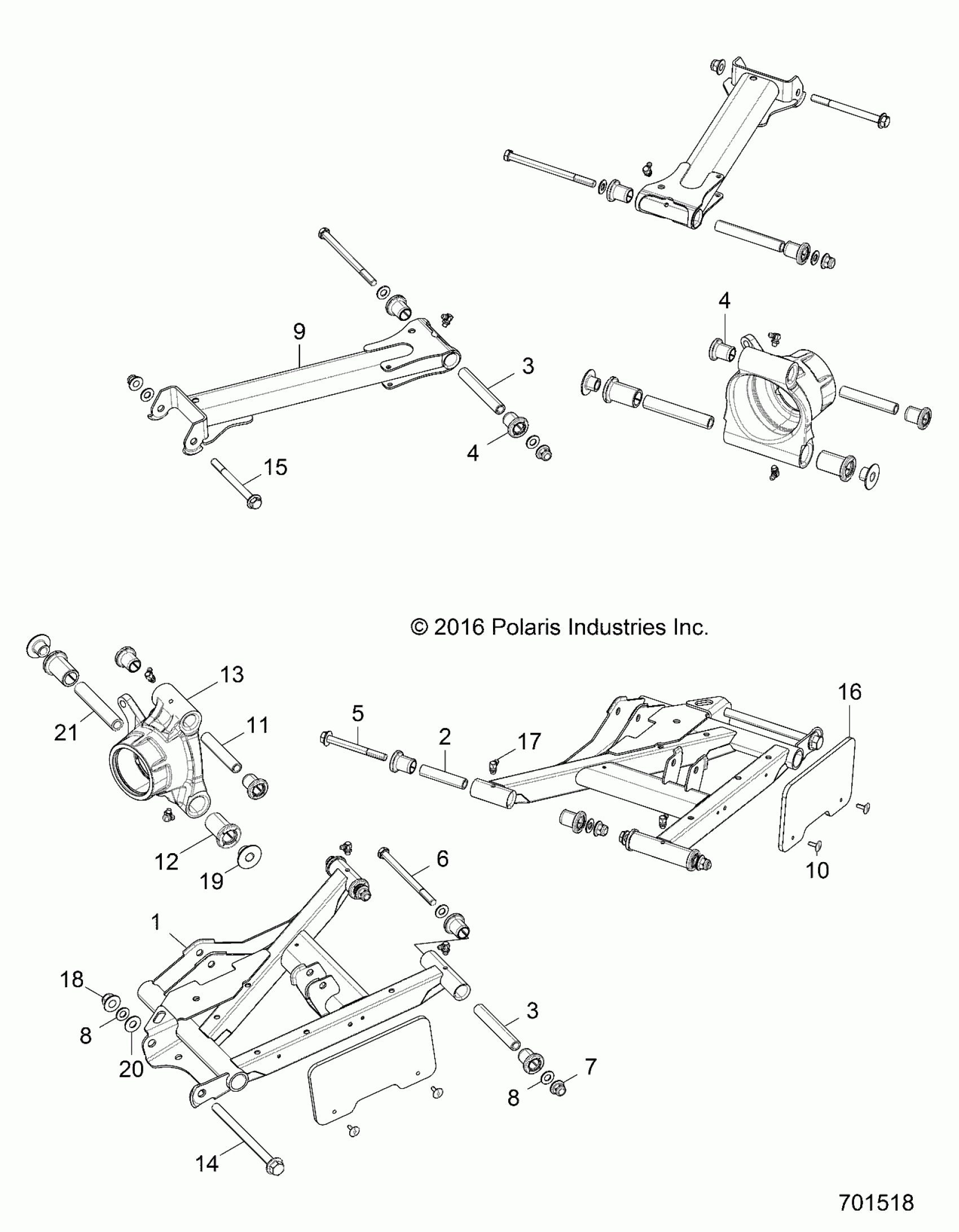

Polaris RZR 900 60 INCH ALL OPTIONS - Z15VBA87AJ/LJ/E87AK/AM/AT/LT/AL/AV SUSPENSION, REAR CONTROL ARMS - Z15VBA87AJ/LJ/E87AK/AM/AT/LT/AL/AV (701518) Diagram

#

Description
Price

1

A-ARM, REAR, LOWER, RH, 60, MATTE BLACK [AT][LT][AV][IF BUILT BEFORE 3/1/15]

1018823-458

$175.99

1

A-ARM, REAR, LOWER, LH, 60, MATTE BLACK [AJ][AK][AM][AL][LJ][IF BUILT BEFORE 3/1/15]

1018822-458

Unavailable

1

A-ARM, REAR, LOWER, LH, 60, CLOUD SILVER [AT][LT][AV][IF BUILT BEFORE 3/1/15]

1018822-385

Unavailable

1

A-ARM, REAR, LOWER, RH, 60, CLOUD SILVER [AJ][AK][AM][AL][LJ][IF BUILT BEFORE 3/1/15]

1018823-385

Unavailable

1

A-ARM, REAR, LOWER, LH, 60, MATTE BLACK [AT][LT][AV][IF BUILT AFTER 3/2/15]

1021287-458

$228.79

1

A-ARM, REAR, LOWER, RH, 60, MATTE BLACK [AJ][AK][AM][AL][LJ][IF AFTER BEFORE 3/2/15]

1021288-458

$228.79

1

A-ARM, REAR, LOWER, LH, 60, CLOUD SILVER [AT][LT][AV][IF BUILT AFTER 3/2/15]

1021287-385

Unavailable

1

A-ARM, REAR, LOWER, RH, 60, CLOUD SILVER [AJ][AK][AM][AL][LJ][IF AFTER BEFORE 3/2/15]

1021288-385

$228.79

2

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$8.79

3

SHAFT, PIVOT

5138798

$28.32

3

SHAFT, PIVOT

5138798

$28.32

4

BUSHING-STANDARD,ORV

5439874

$2.39

4

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONL]

1543367

$10.39

4

BUSHING-STANDARD,ORV

5439874

$2.39

4

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONL]

1543367

$10.39

5

SCREW, HEX FLANGE

7519043

$9.59

6

SCREW

7519897

$13.59

7

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

8

WASHER

7556153

$1.99

8

WASHER

7556153

$1.99

9

A-ARM, REAR, UPPER, RH, 60, MATTE BLACK [AJ][AK][AM][LJ][AL]

1018821-458

Unavailable

9

A-ARM, REAR, UPPER, LH, 60, MATTE BLACK [AJ][AK][AM][LJ][AL]

1018820-458

Unavailable

9

A-ARM, REAR, UPPER, LH, 60, CLOUD SILVER [AT][LT][AV]

1018820-385

Unavailable

9

A-ARM, REAR, UPPER, RH, 60, CLOUD SILVER [AT][LT][AV]

1018821-385

Unavailable

10

RIVET

7621467

$1.49

11

SHAFT, PIVOT

5138794

$5.59

12

BUSHING-LCA,0.75" ID [IF BUILT AFTER 3/2/15]

5437651

$6.39

12

BUSHING-STANDARD,ORV [IF BUILT BEFORE 3/1/15]

5439874

$2.39

13

CARRIER, BEARING, WHEEL, LH [IF BUILT BEFORE 3/1/15]

5139770

Unavailable

13

CARRIER, BEARING, WHEEL, RH [IF BUILT BEFORE 3/1/15]

5139771

Unavailable

13

CARRIER-BEARING,WHEEL,LH [IF BUILT AFTER 3/2/15]

5139953

Unavailable

13

CARRIER-BEARING,WHEEL,RH [IF BUILT AFTER 3/2/15]

5139954

Unavailable

14

SCREW, HEX FLANGE [IF BUILT BEFORE 3/1/15]

7519042

$9.59

14

SCR-HXFL-M12X1.5X170 10.9 ZOD [IF BUILT AFTER 3/2/15]

7520294

$11.19

15

SCREW, HEX FLANGE

7519365

$13.59

16

SHIELD, CV, REAR, BLACK

5451336-070

$27.99

17

FITTING, ZERK [QTY. 10 FOR LJ,LT.AL,AV]

7080510

$5.59

18

NUT-HXFL M10X1.25 8 ZTB NYL [IF BUILT BEFORE 3/1/15]

7547333

$1.59

18

NUT-M12X1.5,FLG,NYLOC-OLIVE D [IF BUILT AFTER 3/2/15]

7547334

$4.79

19

BUSHING, PIVOT, WEAR [IF BUILT BEFORE 3/1/15]

5136102

$10.39

19

BUSHING-PIVOT,WEAR,12.24 ID [IF BUILT AFTER 3/2/15]

5139952

$12.79

20

WASHER [AL][AV][BUILT 1/3/15 AND AFTER]

7556212

$8.79

21

SHAFT-PIVOT,107.26MM,19.05OD

5139951

$8.79
