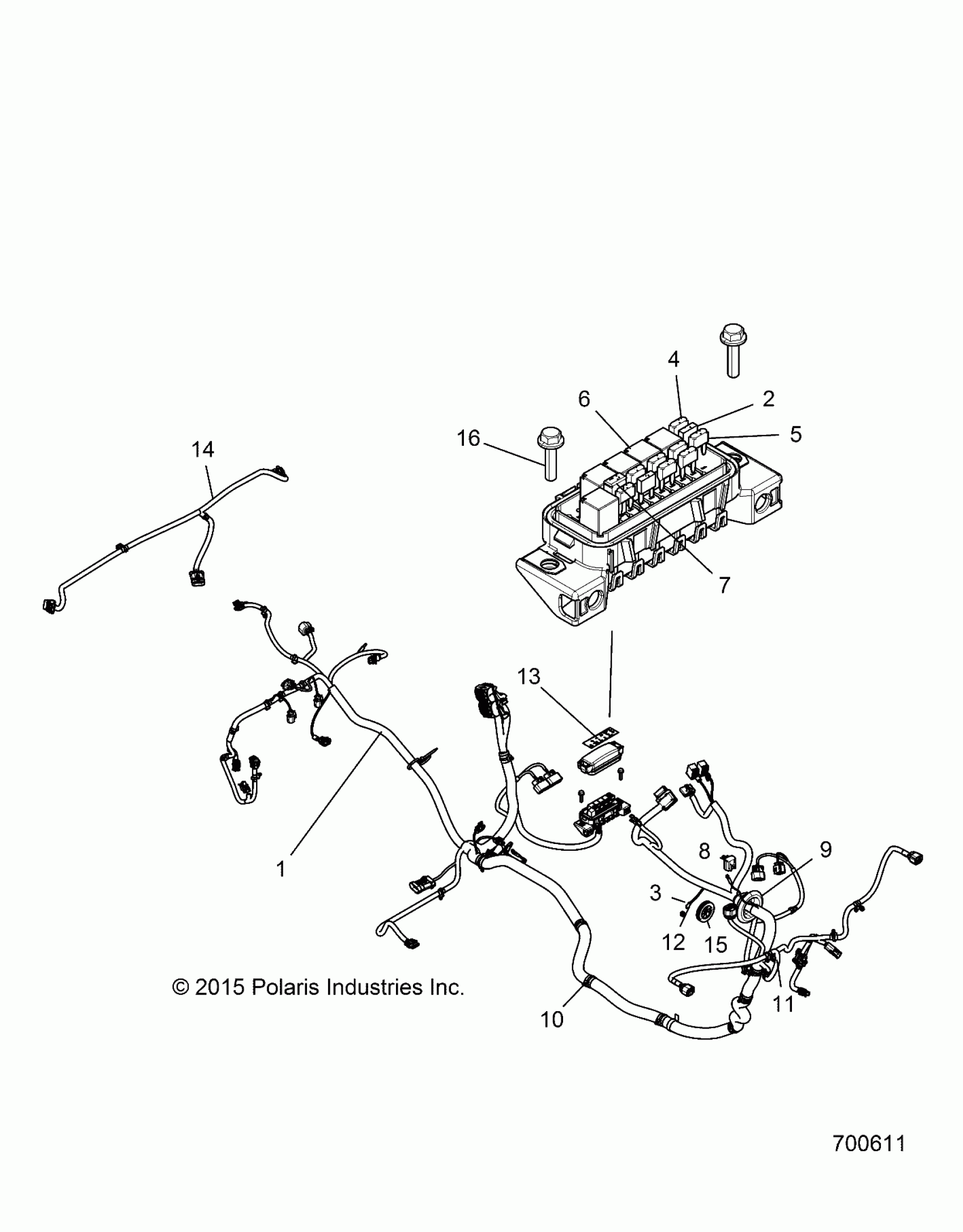

Polaris RZR 900 60 INCH ALL OPTIONS (R18) - Z16VBA87A2/AB/L2/E87AB/AR/LB/AE/AS ELECTRICAL, WIRE HARNESS - Z16VBE87AB/AR/LB/AE/AS (700611) Diagram

Description

Price

HARNESS-CHASSIS,RZR,900,EPS [INCL 2-13]

2413110

$1,016.39

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

LED-PANEL MNT,12V,BLUE

2413217

$51.99

FUSE-IGNITION,10 AMP

2434016

$4.79

FUSE-PARK,20 AMP

2434017

Unavailable

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

GROMMET-65MM,BLK

5813954

$7.19

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

CLIP-ROUTING,DIN BOX

7082020

$5.59

LABEL-FUSE BOX

7179870

Unavailable

HARNESS, BOX

2412287

$51.99

GROMMET

5414440

$7.19

BOLT, FLANGE, BLACK

7518576

$3.19
