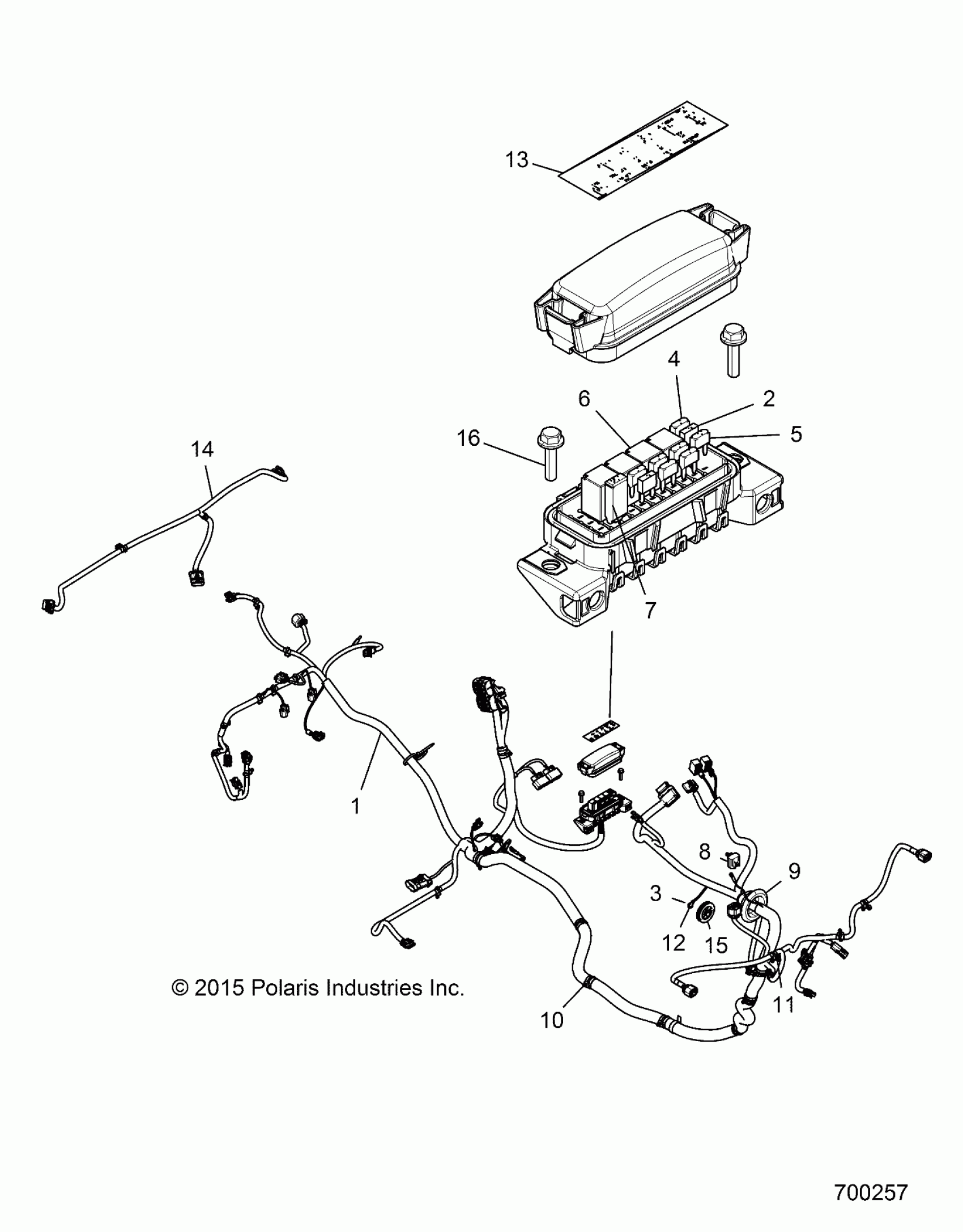

Polaris RZR 900 60 INCH ALL OPTIONS (R18) - Z16VBA87A2/AB/L2/E87AB/AR/LB/AE/AS ELECTRICAL, WIRE HARNESS - Z16VBA87A2/AB/L2 (700257) Diagram

Description

Price

HARNESS, CHASSIS [INCL. 2-13]

2413108

$1,299.99

FUSE-MINI BLADE,15 AMP

2410280

$8.08

LED-PANEL MNT,12V,BLUE

2413217

$52.60

FUSE-IGNITION,10 AMP

2434016

$5.65

FUSE-PARK,20 AMP

2434017

$8.08

RELAY-SPST,SERIES 303,SEALED

4011283

$36.41

BREAKER-CIRCUIT,20 AMP

4011372

$44.51

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

GROMMET-65MM,BLK

5813954

$8.99

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.84

CLIP-ROUTING,DIN BOX

7082020

$5.56

LABEL-FUSE BOX

7179870

Unavailable

HARNESS, BOX

2412287

$67.76

GROMMET

5414440

$7.14

BOLT, FLANGE, BLACK

7518576

$3.17
