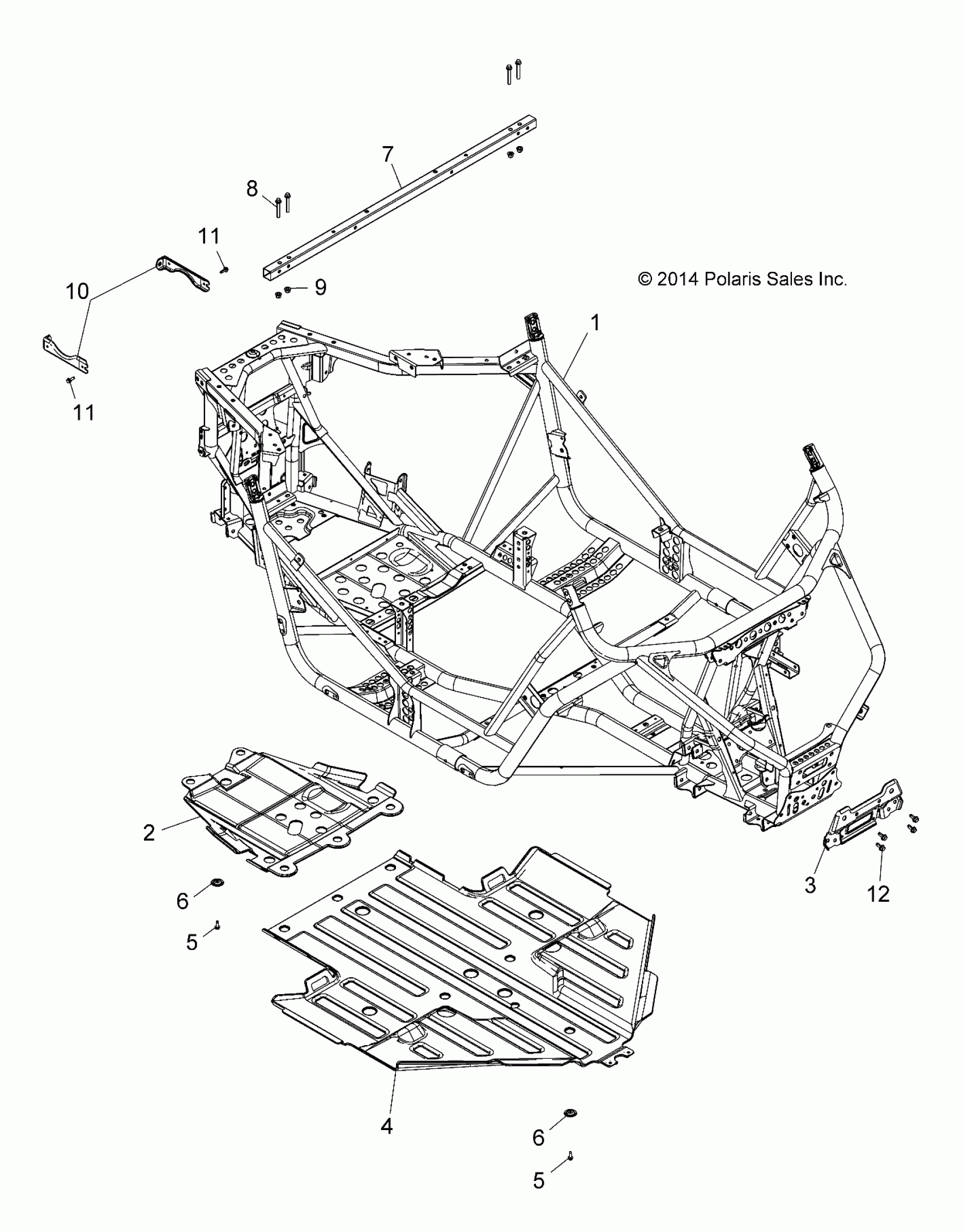

Polaris RZR 900 60 INCH ALL OPTIONS (R18) - Z16VBA87A2/AB/L2/E87AB/AR/LB/AE/AS CHASSIS, MAIN FRAME AND SKID PLATE - Z16VBA87A2/AB/L2/E87AB/AR/LB/AE/AS (49RGRFRAME15RZR900) Diagram

#

Description

Price

1

FRAME, MAIN, BLACK

1021423-458

$3,049.19

2

PLATE, SKID, REAR, BLACK

5450706-070

Unavailable

3

BRKT-SUSP MNT,FRT,M.BLK

5259449-458

$51.99

4

PLATE, SKID, BLACK

5451171-070

Unavailable

5

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

5

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

6

WASHER-SKID PLATE

7556065

$4.79

6

WASHER-SKID PLATE

7556065

$4.79

7

ASM., TUBE, TOP FRAME, BLACK

1021506-329

$83.59

8

SCREW

7517281

$8.99

9

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

10

BRACKET, FASCIA

5259106

$14.39

11

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

11

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

12

BOLT

7518555

$2.39
