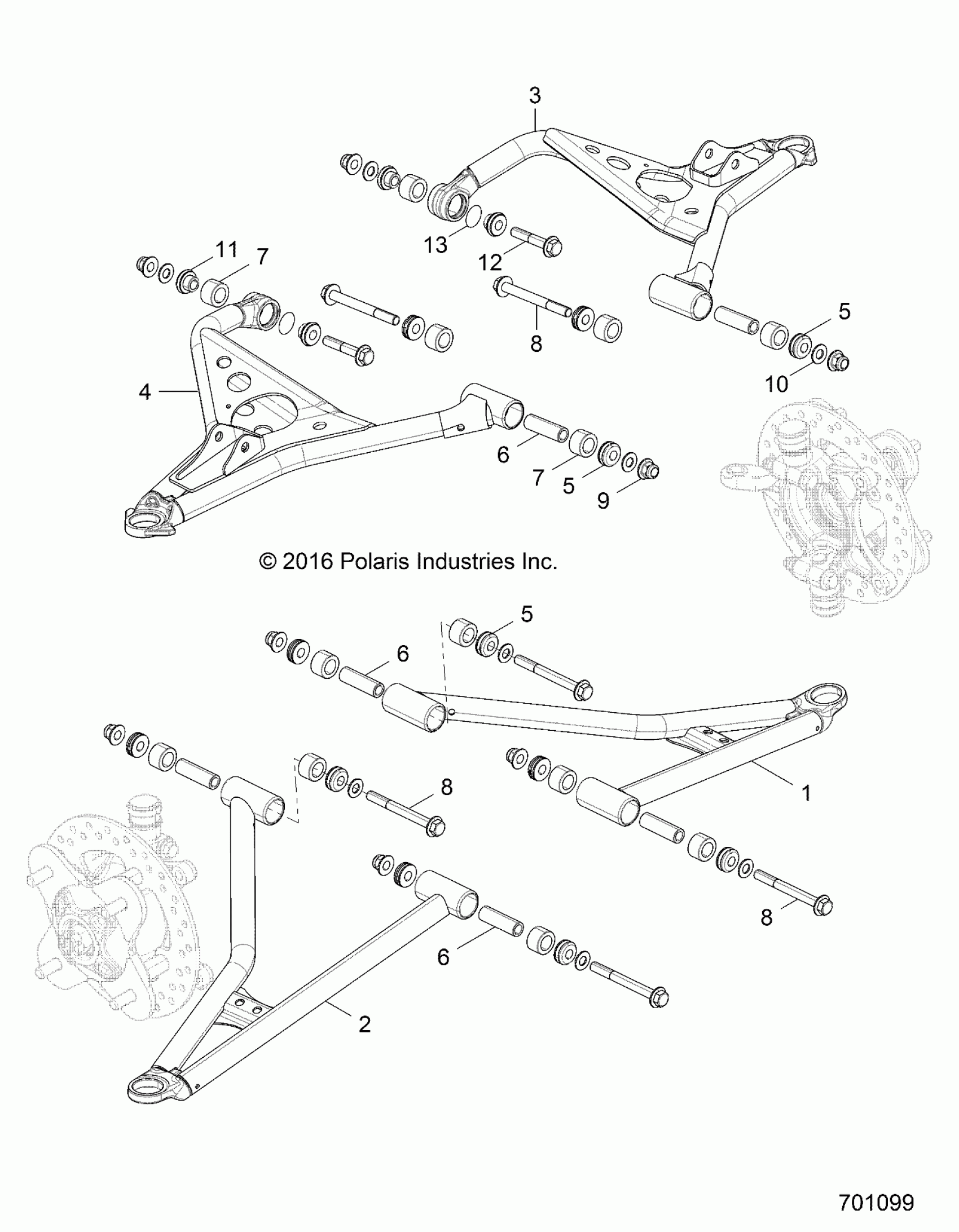

Polaris RZR 900 60 INCH ALL OPTIONS (R11) - Z17VBA87A2/E87AB/AK/AM/LK SUSPENSION, FRONT CONTROL ARMS - Z17VBA87A2/E87AB/AK/AM/LK (701099) Diagram

WELD-CTRL ARM,LWR,FRT,LH,60,BL

1021416-458

$127.99

WELD-CTRL ARM,LWR,FRT,RH,60,BL

1021417-458

$127.99

WELD-CTRL ARM,UPR,FRT,LH,60,BK [AB][AK][LK][AM]

1022425-458

Unavailable

WELD-CTRL ARM,UPR,FRT,LH,60,BK [A2]

1022797-458

Unavailable

WELD-CTRL ARM,UPR,FRT,RH,60,BK [AB][AK][LK][AM]

1022426-458

Unavailable

WELD-CTRL ARM,UPR,FRT,RH,60,BK [A2]

1022798-458

Unavailable

ASM-PIVOT CAP,SEALED,M10

1543611

$5.59

ASM-PIVOT CAP,SEALED,M10

1543611

$5.59

ASM-PIVOT CAP,SEALED,M10

1543611

$5.59

SHAFT-PIVOT,SHORT,M10

5139966

$5.59

SHAFT-PIVOT,SHORT,M10

5139966

$5.59

SHAFT-PIVOT,SHORT,M10

5139966

$5.59

BUSHING-STANDARD,SUSP,M10

5452233

$2.39

BUSHING-STANDARD,SUSP,M10

5452233

$2.39

SCREW, HEX FLANGE

7519043

$9.59

SCREW, HEX FLANGE

7519043

$9.59

SCREW, HEX FLANGE

7519043

$9.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER

7556153

$1.99

ASM-PIVOT CAP,SEALED,SLIM,M10

1543735

$13.59

SCREW, HEX FLANGE

7519285

$2.39

28MM SPIRAL RING,STEEL

7710845

$3.59
