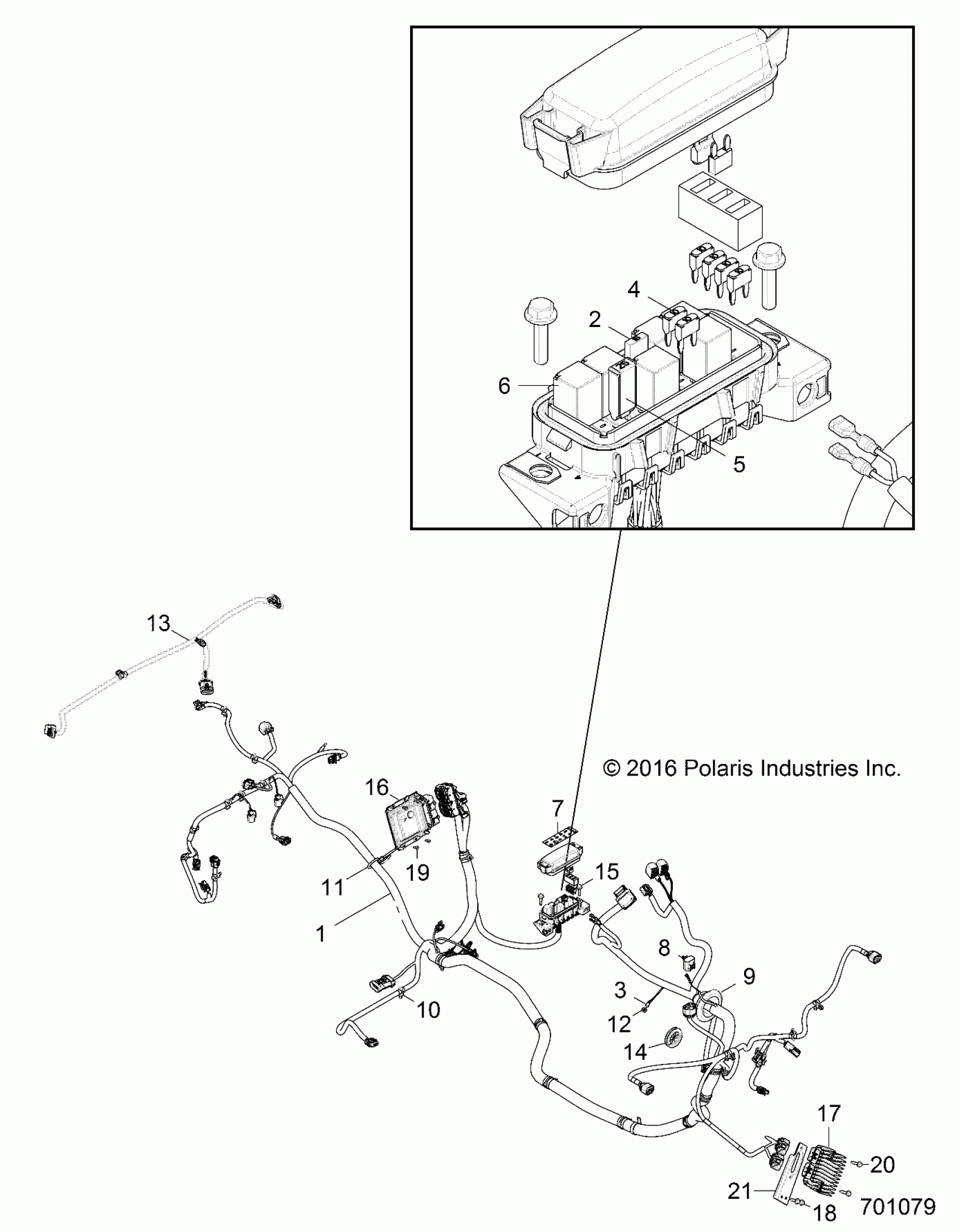

Polaris RZR 900 60 INCH ALL OPTIONS (R11) - Z17VBA87A2/E87AB/AK/AM/LK ELECTRICAL, WIRE HARNESS - Z17VAB87A2 (701079) Diagram

#

Description
Price

1

HARNESS, CHASSIS [INCL. 2-12]

2413489

$991.19

2

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

3

LED-PANEL MNT,12V,BLUE

2413217

$51.99

4

FUSE-IGNITION,10 AMP

2434016

$4.79

5

BREAKER, CIRCUIT, 25 AMP

4015771

$63.99

6

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

7

LABEL-FUSE BOX

7184204

Unavailable

8

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

9

GROMMET-65MM,BLK

5813954

$7.19

10

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

11

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

12

CLIP-ROUTING,DIN BOX

7082020

$5.59

13

HARNESS, BOX

2412287

$51.99

14

GROMMET

5414440

$7.19

15

BOLT, FLANGE, BLACK

7518576

$3.19

16

ECM, NO START

4014125

$694.99

17

REGULATOR-3PH,50A,SERIES,HISPD

4014856

Unavailable

18

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

19

SCREW

7519091

$3.19

20

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

21

BRKT-MOUNT,REGULATOR,BLK

5262740-329

$31.99
