Partiron

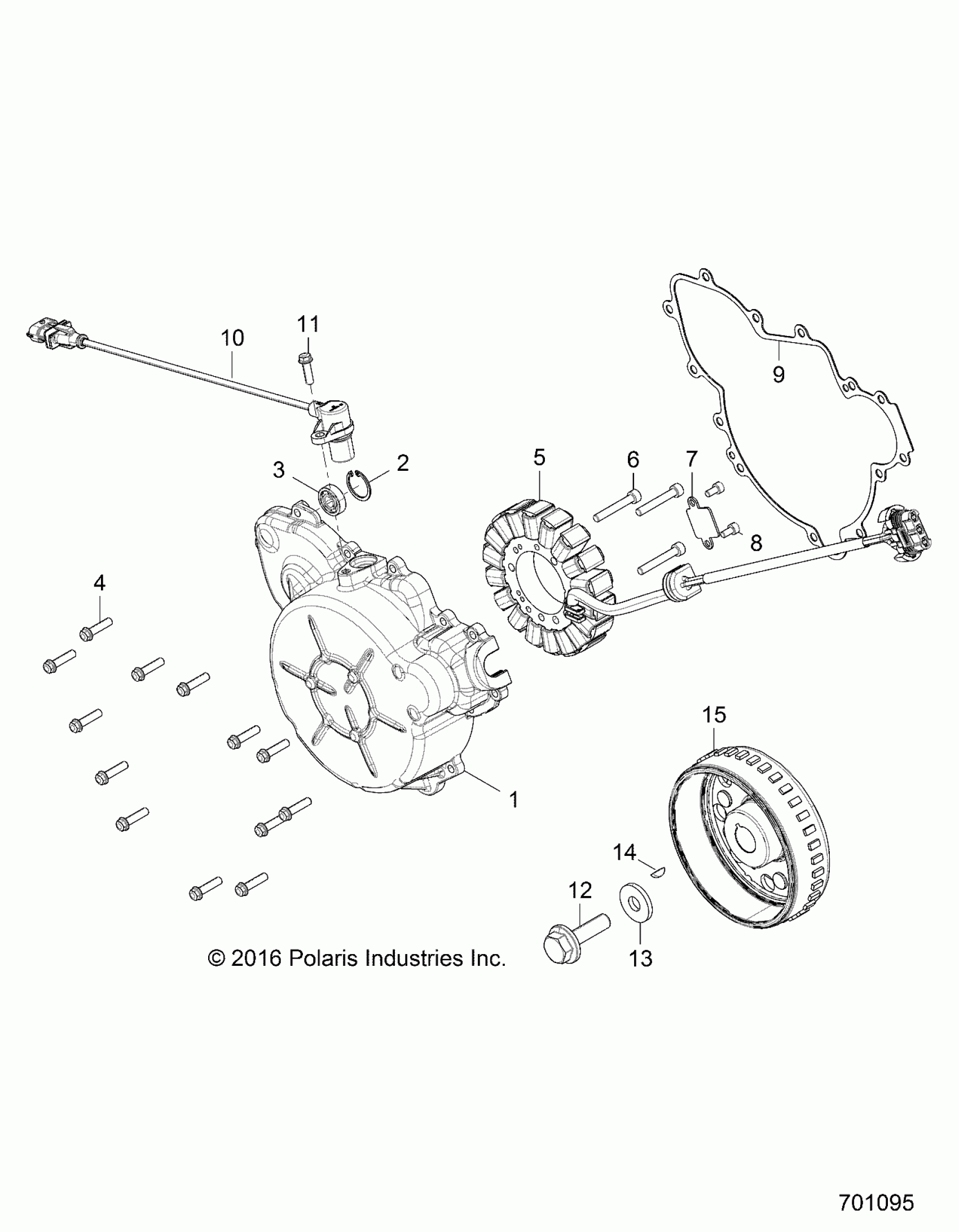

Polaris RZR 900 60 INCH ALL OPTIONS (R06) - Z19VBA87A2/E87AG/AK/LG ENGINE, STATOR and COVER - Z19VBA87A2/E87AG/AK/LG (701095) Diagram

#

Description
Price

1

ASM., IGNITION COVER, STARTER BEARING [INCL. 2,3]

1204518

$159.75

2

RING, SNAP

7710654

$23.99

3

BEARING, BALL

3514717

$8.79

4

SCREW

7519297

$3.99

5

STATOR,560W

4014406

$467.99

6

SCREW

7510005

$5.70

7

BRACKET, RETAINER, WIRE

5255473

$7.19

8

SCREW

7517847

$3.19

9

GASKET, COVER, MAG

5814160

$39.99

10

SENSOR, CRANK POSITION

2411719

$101.17

11

SCREW

7518576

$3.19

12

SCREW

7520178

$27.99

13

WSHR-32X12X4,HARD

7556885

$5.59

14

KEY-WOODRUFF,4X5

7721122

$7.84

15

FLYWHEEL

4014404

$494.99
