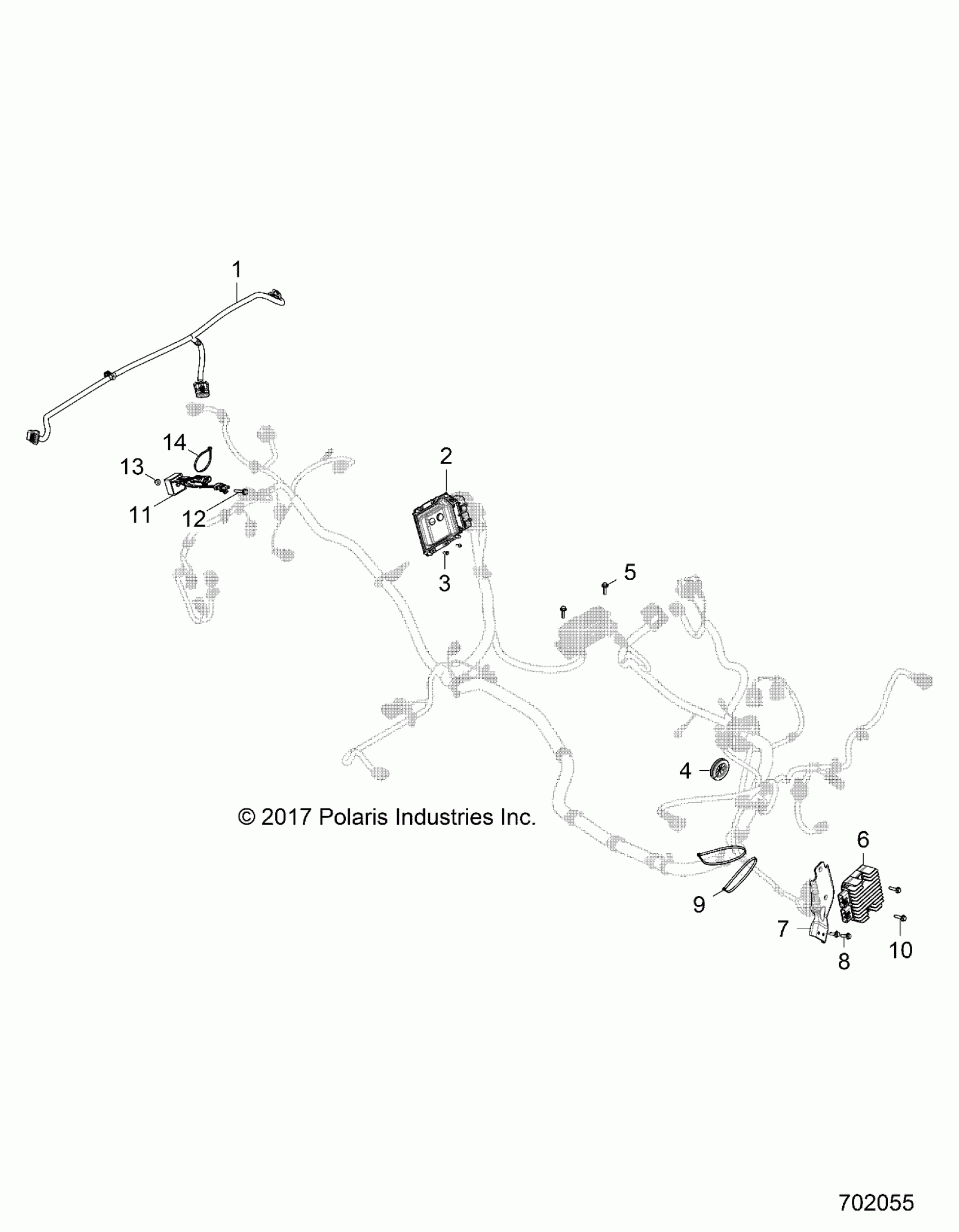

Polaris RZR 900 50 INCH (R07) - Z18VAA87B2/E87BM/BW ELECTRICAL, ECM, REGULATOR - Z18VAA87B2/E87BM/BW (702055) Diagram

#

Description

Price

1

HARNESS-BOX,RZR

2412287

$67.76

2

ECM-NO START,ME17

4014125

$749.99

3

SCR-#10X1/2-HI/LO-PN-T25,TRX-M

7519091

$3.17

4

GROMMET-ELECTRICAL,CAB

5414440

$7.14

5

SCR-HXFL-M6X1.0X25 8.8 RIE

7518576

$3.17

6

REGULATOR-3PH,50A,SERIES,HISPD

4016868

$156.74

7

BRKT-MOUNT,REGULATOR,ECOAT

5264572-329

$44.99

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

9

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

10

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.99

11

RELAY, SOLID STATE,9A,LONG LD [BM][BW]

4012829

$94.99

12

SCR-HXFL-M6X1.0X35 8.8 ZOD [BM][BW]

7518612

$4.76

13

NUT- M8X1.25, FLG, NYLOC-OLIVE D [BM][BW]

7547332

$3.97

14

CABLE-TIE,DIA12-50MM,WTHR-RES. [BM][BW]

7080138

$2.41
