- RZR 900 50 INCH (R03) - Z20A5A87B2/E87BP/BK/BX
SUSPENSION, FRONT CONTROL ARMS - Z20A5A87B2/E87BP/BK/BX (C701021-3)

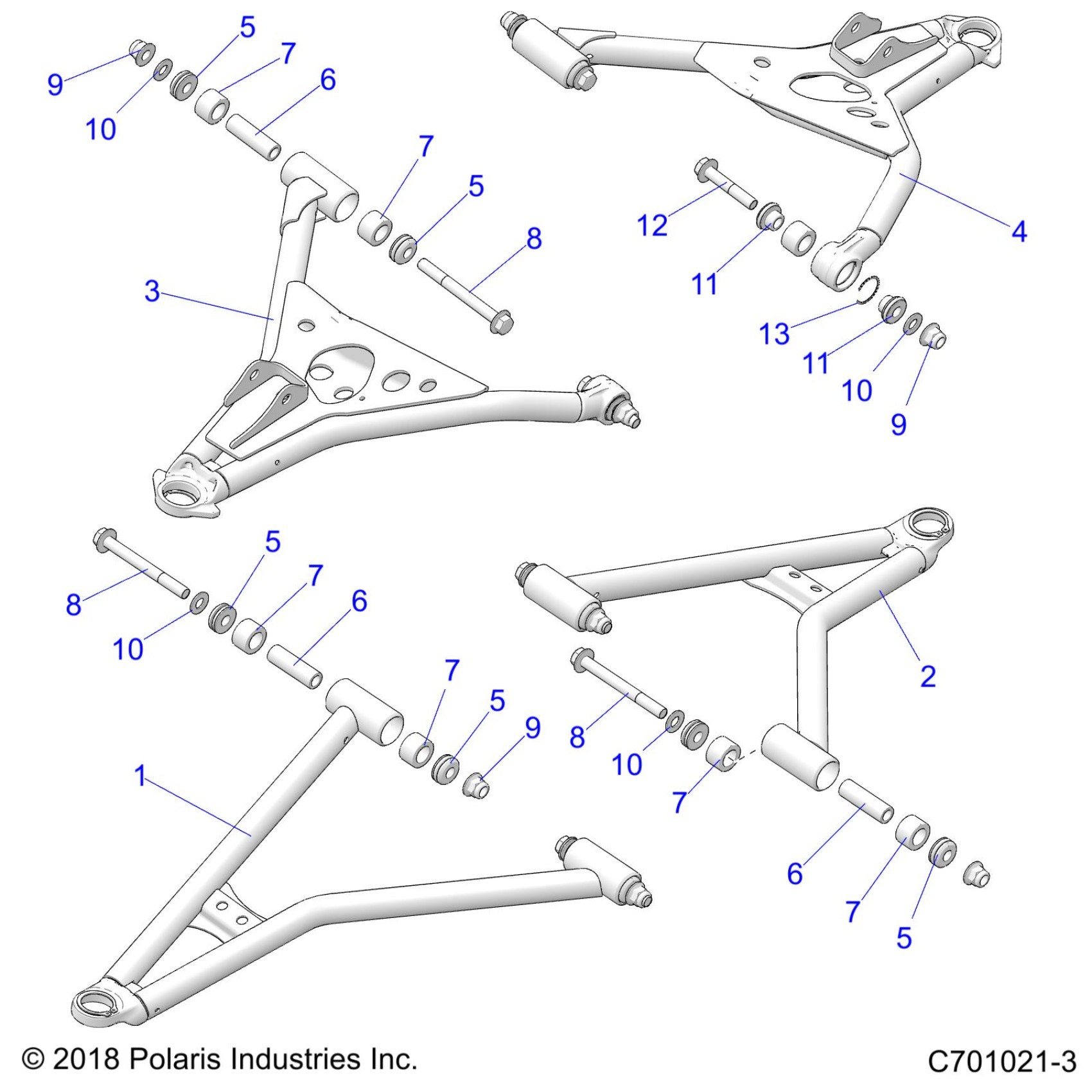

Polaris RZR 900 50 INCH (R03) - Z20A5A87B2/E87BP/BK/BX SUSPENSION, FRONT CONTROL ARMS - Z20A5A87B2/E87BP/BK/BX (C701021-3) Diagram
#
Description
Price
1
WELD-CTRL ARM,LWR,FRT,LH,50,BL
1021404-458
$140.79
2
WELD-CTRL ARM,LWR,FRT,RH,50,BL
1021405-458
$140.79
3
WELD-CTRL ARM,UPR,FRT,LH,50,BL
1021406-458
$255.99
4
WELD-CTRL ARM,UPR,FRT,RH,50,BL
1021407-458
$255.99
5
ASM-PIVOT CAP,SEALED,M10
1543611
$5.59
5
ASM-PIVOT CAP,SEALED,M10
1543611
$5.59
5
ASM-PIVOT CAP,SEALED,M10
1543611
$5.59
5
ASM-PIVOT CAP,SEALED,M10
1543611
$5.59
5
ASM-PIVOT CAP,SEALED,M10
1543611
$5.59
6
SHAFT-PIVOT,SHORT,M10 [TO 2/1/2025]
5139966
$5.59
6
SHAFT-PIVOT,SHORT,M10 [FROM 2/1/2025]
5144658
$5.59
6
SHAFT-PIVOT,SHORT,M10 [TO 2/1/2025]
5139966
$5.59
6
SHAFT-PIVOT,SHORT,M10 [FROM 2/1/2025]
5144658
$5.59
6
SHAFT-PIVOT,SHORT,M10 [TO 2/1/2025]
5139966
$5.59
6
SHAFT-PIVOT,SHORT,M10 [FROM 2/1/2025]
5144658
$5.59
7
BUSHING-STANDARD,SUSP,M10
5452233
$2.39
7
BUSHING-STANDARD,SUSP,M10
5452233
$2.39
7
BUSHING-STANDARD,SUSP,M10
5452233
$2.39
7
BUSHING-STANDARD,SUSP,M10
5452233
$2.39
7
BUSHING-STANDARD,SUSP,M10
5452233
$2.39
7
BUSHING-STANDARD,SUSP,M10
5452233
$2.39
8
SCREW, HEX FLANGE
7519043
$9.59
8
SCREW, HEX FLANGE
7519043
$9.59
8
SCREW, HEX FLANGE
7519043
$9.59
9
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
9
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
9
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
10
WASHER
7556153
$1.99
10
WASHER
7556153
$1.99
10
WASHER
7556153
$1.99
10
WASHER
7556153
$1.99
11
ASM-PIVOT CAP,SEALED,SLIM,M10
1543735
$13.59
11
ASM-PIVOT CAP,SEALED,SLIM,M10
1543735
$13.59
12
SCREW, HEX FLANGE
7519285
$2.39
13
28MM SPIRAL RING,STEEL
7710845
$3.59
