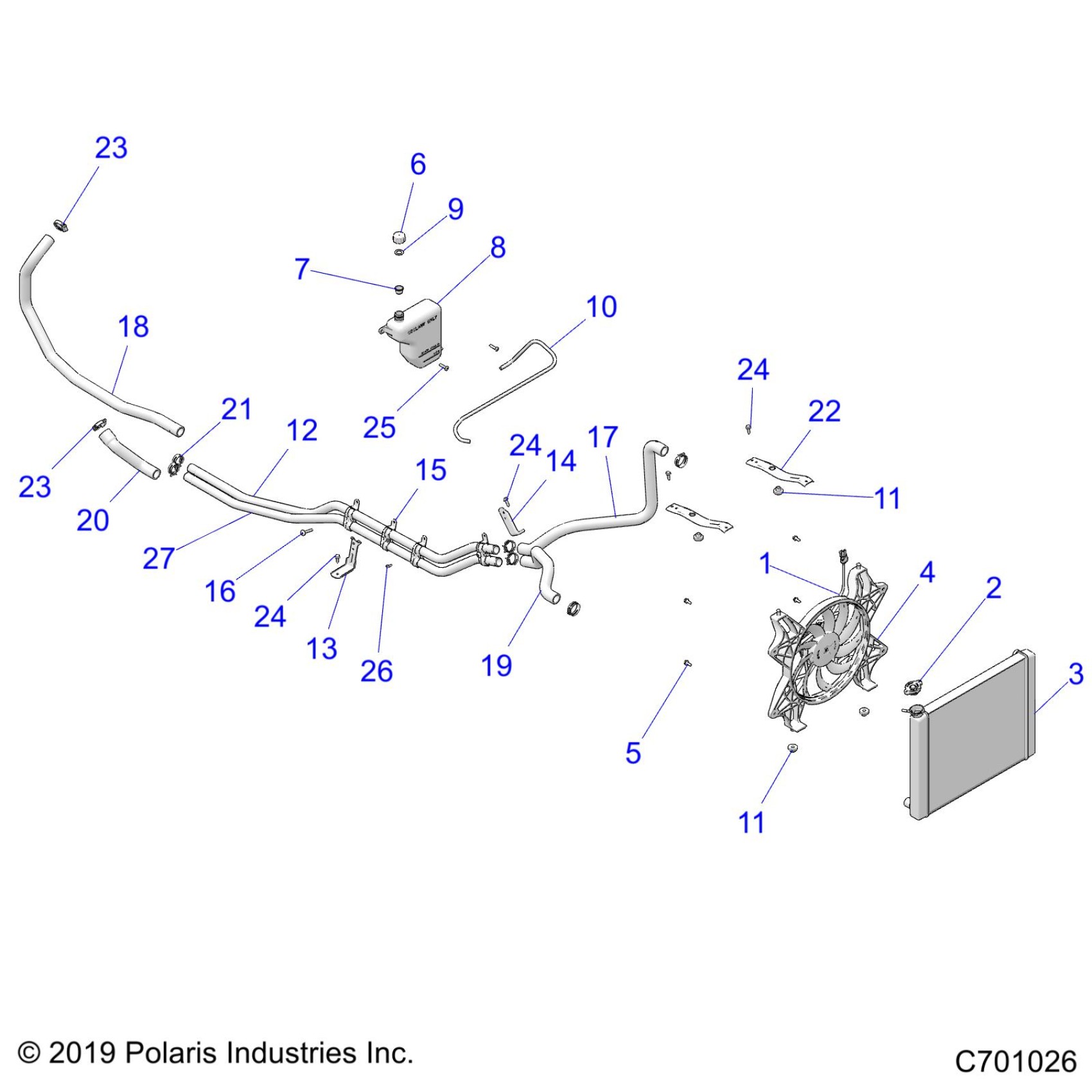

Polaris RZR 900 50 INCH (R03) - Z20A5A87B2/E87BP/BK/BX ENGINE, COOLING SYSTEM - Z20A5A87B2/E87BP/BK/BX (C701026) Diagram

#

Description
Price

1

ASM-RADIATOR [INCL. 2-5]

1241270

Unavailable

2

CAP-PRESSURE

1240300

$40.46

3

ASM-RADIATOR,CORE

1241050

Unavailable

4

FAN-ASSEMBLY

2412447

$239.99

5

SCR-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.73

6

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

7

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

8

TANK-SURGE

5439202

$91.99

9

GASKET-OVERFLOW CAP

5810279

$2.41

10

FUEL LINE-95 CENTIMETERS

8450003-95

Unavailable

11

GROMMET, FLANGED

7052028

$6.39

11

GROMMET, FLANGED

7052028

$6.39

12

TUBE-COOLANT,1"

5141611

$53.24

13

BRACKET, COOLANT TUBE, BLACK

5259433-329

$27.99

14

BRACKET, COOLANT TUBE, BLACK

5260766-329

$27.99

15

BRACKET-COOLANT TUBE

5451221

$8.79

16

SCREW

7519001

$3.99

17

HOSE, UPPER, RADIATOR

5414528

$63.99

18

HOSE, ENGINE OUTLET, REAR

5415451

$43.99

19

HOSE, LOWER, RADIATOR, LONG

5414532

$43.99

20

HOSE, ENGINE INLET, REAR

5414533

$31.99

21

SPRINGBAND, CLAMP

7080844

$10.39

22

BRACKET, UPPER RADIATOR MOUNT, BLACK

5256879-329

$31.99

23

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

23

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

24

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

24

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

24

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

25

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.79

26

SCREW

7512026

$1.49

27

TUBE-COOLANT,1"

5141612

$62.92
