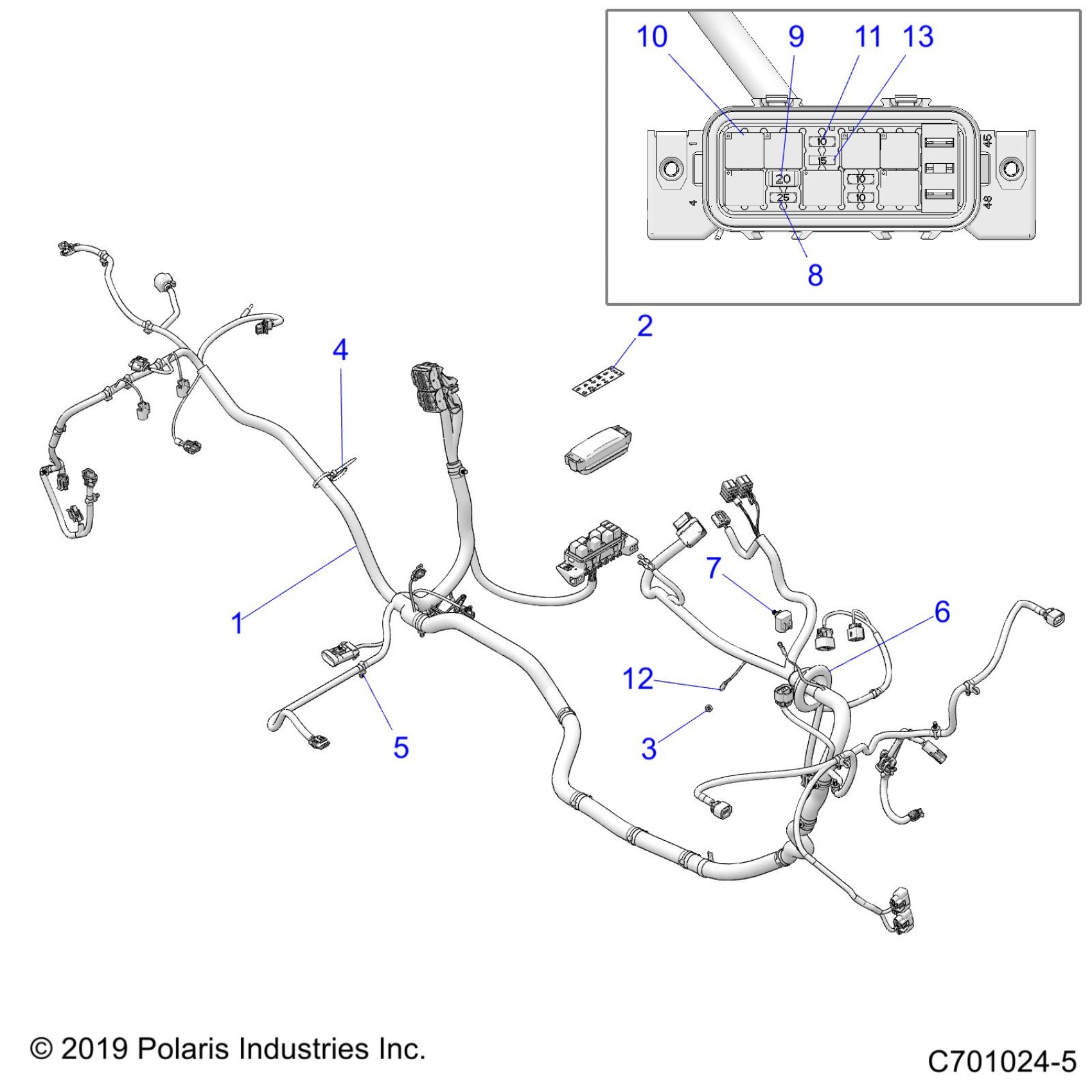

Polaris RZR 900 50 INCH (R03) - Z20A5A87B2/E87BP/BK/BX ELECTRICAL, WIRE HARNESS - Z20A5E87BP/BK/BX (C701024-5) Diagram

#

Description

Price

1

HARNESS-CHASSIS,RZR,900,EPS [INCL. 2-13]

2414026

$1,121.99

2

LABEL-FUSE BOX

7186513

Unavailable

3

CLIP-ROUTING,DIN BOX

7082020

$5.59

4

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

5

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

6

GROMMET-65MM,BLK

5813954

$7.19

7

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

8

FUSE-25A,MINI BLADE

4011653

$7.99

9

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

10

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

11

FUSE-IGNITION,10 AMP

2434016

$4.79

12

LED-PANEL MNT,12V,BLUE

2413217

$51.99

13

FUSE-MINI BLADE,15 AMP

2410280

Unavailable
