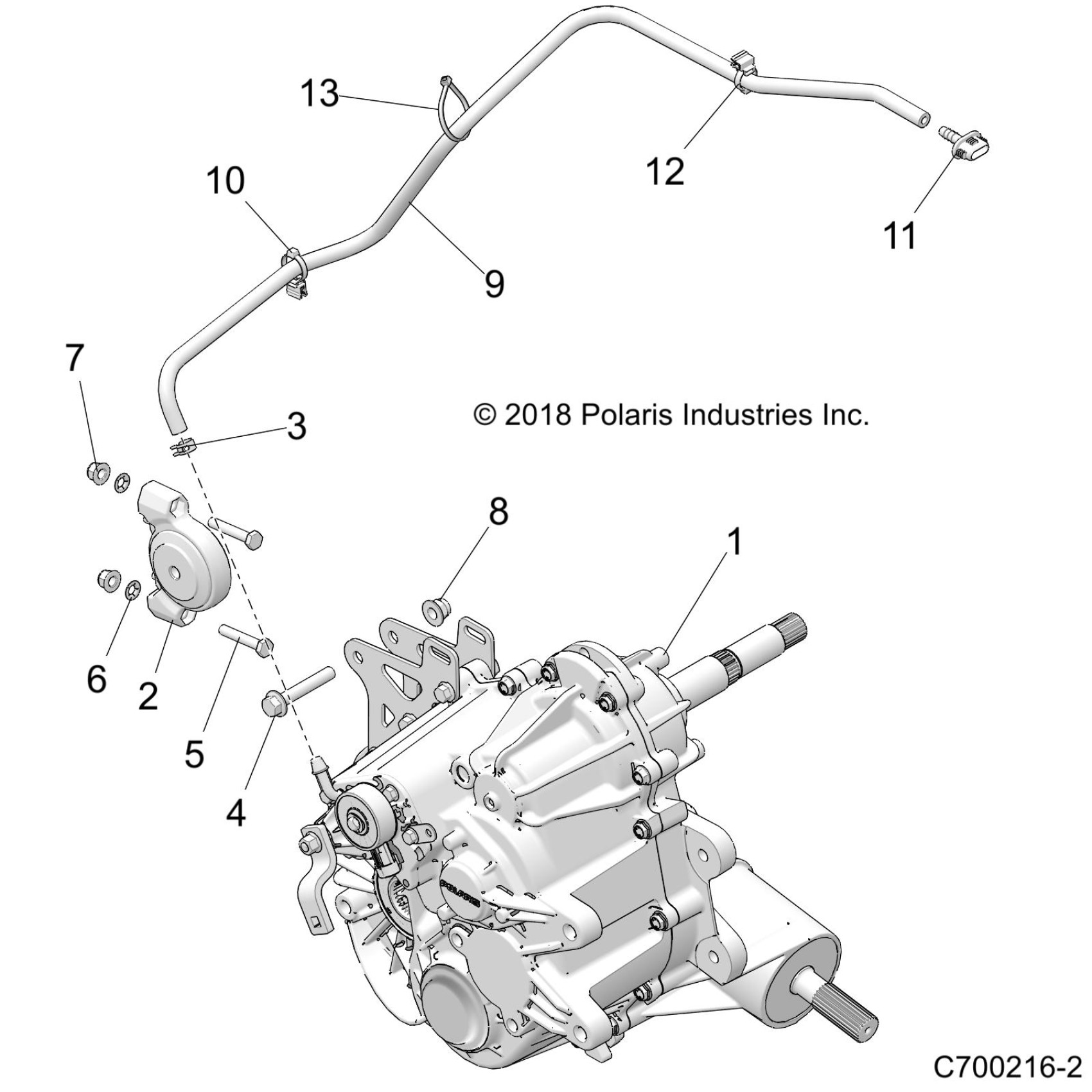

Polaris RZR 900 50 INCH (R03) - Z20A5A87B2/E87BP/BK/BX DRIVE TRAIN, MAIN GEARCASE MOUNTING - Z20A5A87B2/E87BP/BK/BX (C700216-2) Diagram

#

Description
Price

1

ASM., GEARCASE, COMPLETE

-------

Unavailable

2

MOUNT-ISOLATOR,DRIVELINE

1332955

$71.99

3

CLAMP-HOSE, 17/32, GREEN

7081432

$3.99

4

BOLT

7518563

$3.19

5

SCREW

7519097

$1.59

6

NUT

7547030

$4.79

7

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

8

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

9

LINE, FUEL

8450040-100

Unavailable

10

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

11

FITTING-VENT LINE

5453465

$5.59

12

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.19

13

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

13

CLIP-EDGE,HARNESS [NOT ILLUSTRATED]

7081890

$10.39
