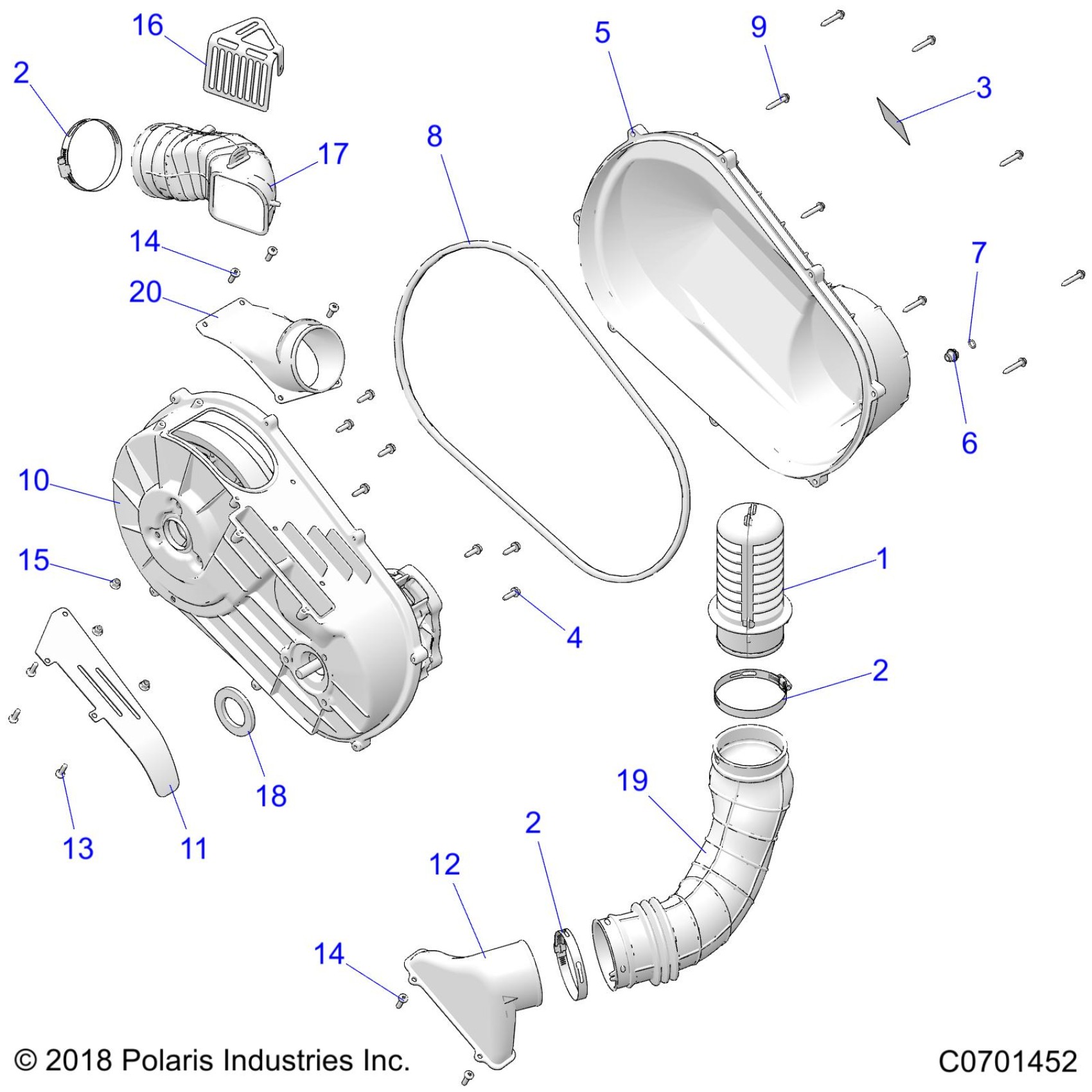

Polaris RZR 900 50 INCH (R03) - Z20A5A87B2/E87BP/BK/BX DRIVE TRAIN, CLUTCH COVER AND DUCTING - Z20A5A87B2/E87BP/BK/BX (C0701452) Diagram

#

Description
Price

1

ASM., INTAKE, CLUTCH DUCT

2635411

$31.99

2

CLAMP-HOSE SLOTTED,92-100 DIA

7081969

$10.39

2

CLAMP-HOSE SLOTTED,92-100 DIA

7081969

$10.39

2

CLAMP-HOSE SLOTTED,92-100 DIA

7081969

$10.39

3

DECAL-BELT,WARNING/CHECK

7177469

Unavailable

4

ASM., BOLT AND WASHER

7519278

$4.79

5

ASM., COVER, CLUTCH, OUTER [INCL. 6,7]

2634179

$175.99

6

O RING-.364X.504X.07

5410542

Unavailable

7

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

8

SEAL, COVER, CLUTCH, OUTER

5521831

Unavailable

9

SCREW-NXFL-M6X35 ZOD HILO

7519330

$3.99

10

ASM., COVER, CLUTCH, INNER [INCL. 11-15, 20]

2634863

$159.99

11

BRKT-GUARD,CLUTCH COVER

5256223

$35.99

12

DUCT, CLUTCH, AIR INLET

5450051

$43.99

13

SCR-M6X1.0X20MM,TX,PH,8.8-B

7518546

$3.19

14

SCR-#14X3/4 HI/LO-PH-PN TRX-M

7519205

$1.59

14

SCR-#14X3/4 HI/LO-PH-PN TRX-M

7519205

$1.59

15

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

16

BRACKET, SCREEN, BELT

5256732

$11.19

17

HOSE, CLUTCH, AIR OUTLET

5451061

$107.99

18

SEAL-COVER,PTO

5813708

$23.99

19

HOSE, CLUTCH, AIR INLET

5451062

$43.99

20

DUCT, CLUTCH, AIR OUTLET

5450846

Unavailable
