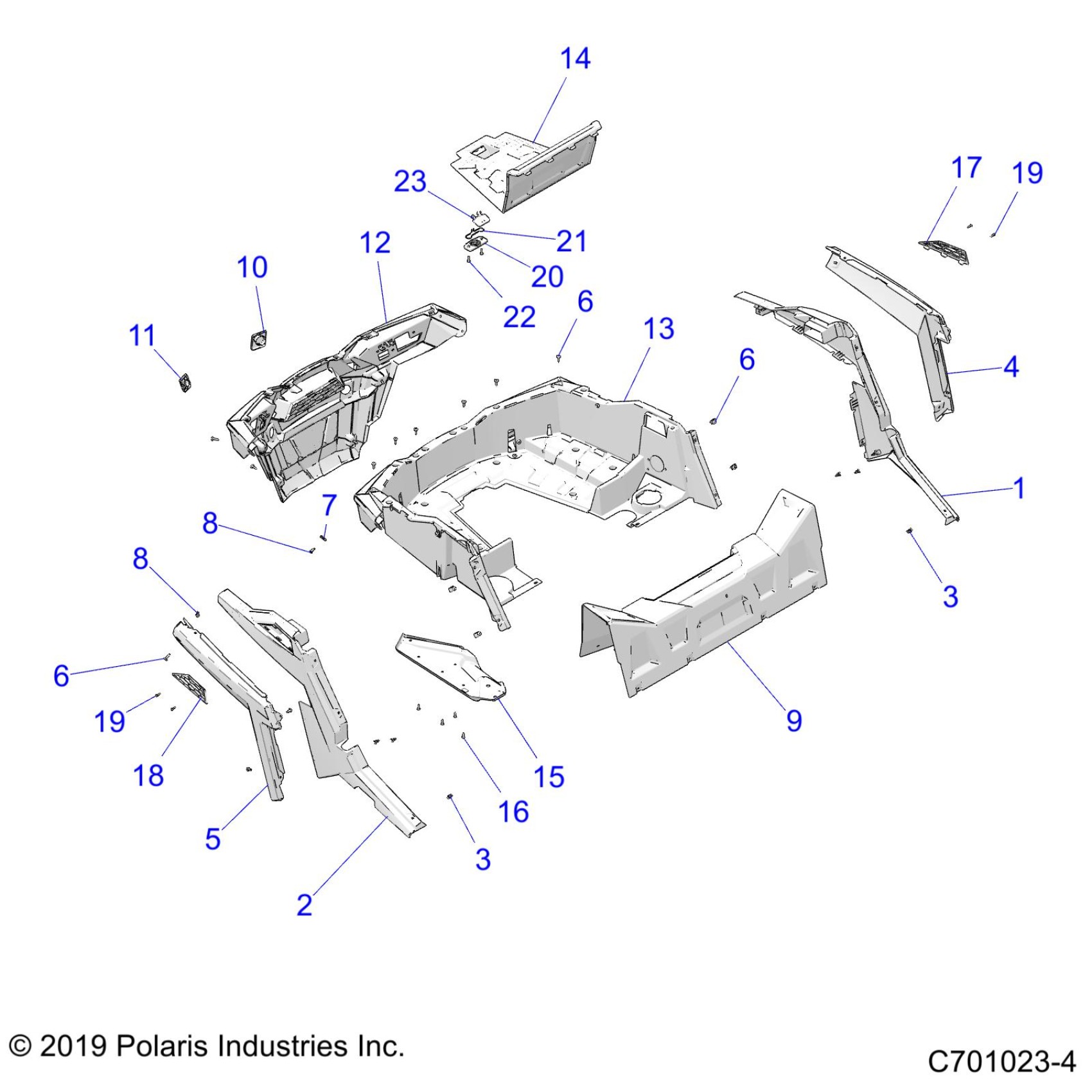

Polaris RZR 900 50 INCH (R03) - Z20A5A87B2/E87BP/BK/BX BODY, REAR RACK AND FENDERS - Z20A5A87B2/E87BP/BK/BX (C701023-4) Diagram

#

Description
Price

1

ASM., FENDER, REAR, CLIP, LH, PAINTED, BLACK PEARL [INCL. QTY 6 OF 3][BK]

2635493-666

$409.99

1

ASM-FNDR,PNT,RR,CLIP,LH,M.N.BR [INCL. QTY 6 OF 3][BX]

2635493-731

Unavailable

1

ASM-FNDR,PNT,RR,CLIP,LH,R.BLUE [INCL. QTY 6 OF 3][BP]

2635493-724

$404.99

1

ASM., FENDER, REAR, CLIP, LH, WHITE LIGHTNING [INCL. QTY 6 OF 3][B2]

2635495-599

$218.56

2

ASM., FENDER, REAR, CLIP, RH, PAINTED, BLACK PEARL [INCL. QTY 6 OF 3][BK]

2635494-666

$429.99

2

ASM-FNDR,PNT,RR,CLIP,RH,M.N.BR [INCL. QTY 6 OF 3][BX]

2635494-731

$429.99

2

ASM-FNDR,PNT,RR,CLIP,RH,R.BLUE [INCL. QTY 6 OF 3][BP]

2635494-724

$429.99

2

ASM., FENDER, REAR, CLIP, RH, WHITE LIGHTNING [INCL. QTY 6 OF 3][B2]

2635496-599

$218.56

3

CLIP-DASH,TRIM,METAL

7519806

$3.97

3

CLIP-DASH,TRIM,METAL

7519806

$3.97

4

FENDER, REAR FLAIR, LH, BLACK

5439776-070

$48.56

5

FENDER, REAR FLAIR, RH, BLACK

5439777-070

$48.56

6

SCR-TXTH-M6X1.0X25 ZFB

7519650

Unavailable

6

SCR-TXTH-M6X1.0X25 ZFB

7519650

Unavailable

6

SCR-TXTH-M6X1.0X25 ZFB

7519650

Unavailable

7

NUT-M6-1.0, U-TYPE (2.5-3.8)

7547674

Unavailable

8

RIVET-TUFLOK,.315-.325X.787

7661855

Unavailable

8

RIVET-TUFLOK,.315-.325X.787

7661855

Unavailable

9

HOUSING, AIR INTAKE, BLACK

5454276

$169.43

10

PLUG, REAR, FASCIA, LH, BLACK

5415121-070

$5.56

11

PLUG, REAR, FASCIA, RH, BLACK

5415122-070

$5.56

12

FASCIA, REAR, BLACK

5451117-070

$437.13

13

ASM-REAR BOX,BLK [INCL. 15-16]

2637552

$493.79

14

ASM-PANEL-BOX,ACCESS [INCL. 20-23, WARNING DECAL]

2636748

$130.70

14

PANEL-BOX,ACCESS

5454275

$116.17

15

SHIELD-BOX MOUNT,INNER

5263555

$47.49

16

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.17

17

GRILL, INTAKE COVER, LH, BLACK

5451188-070

$40.46

18

GRILL, INTAKE COVER, RH, BLACK

5451189-070

$40.46

19

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.19

19

SCREW-#10X3/4-HI/LO-PN-T25,TRX-M

7512026

$1.19

20

LATCH, COVER PLATE, BLACK

5450510-070

$5.65

21

SPRING, LATCH, SEAT

7081466

$39.99

22

SCR-TXPH-#14X3/4 HI/LO CLR

7519290

$3.97

23

HANDLE-SEAT BASE LATCH

5437121

$4.84
