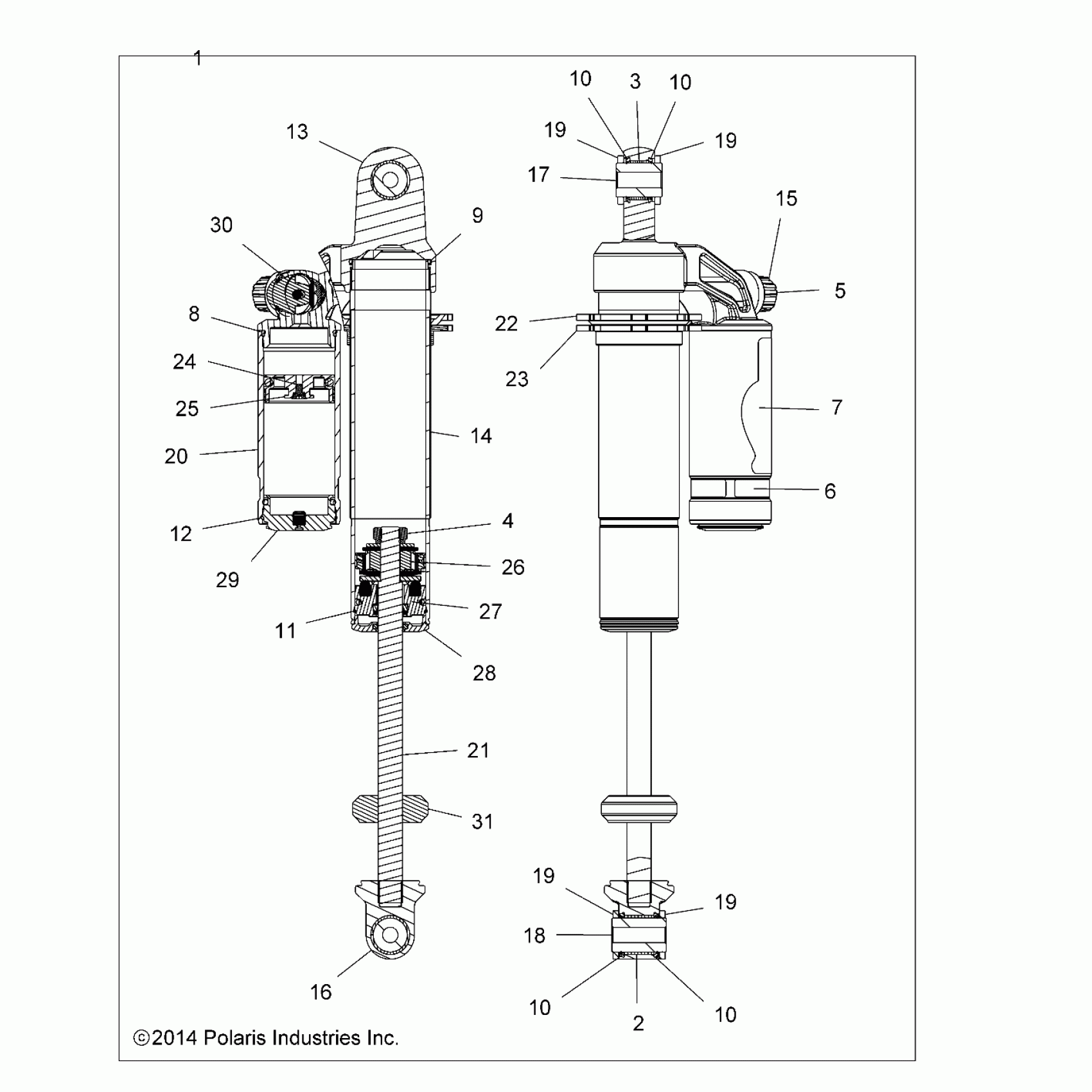

Polaris RZR 900 50/55 INCH ALL OPTIONS - Z15VAA87/E87/X87 SUSPENSION, REAR SHOCK INTERNALS - Z15VAX87AL (49RGRSHOCKRR70442912) Diagram

#

Description
Price

1

SHOCK, REAR RH, 2 RESIVOIRS, PIGGYBACK

7044292

$889.99

1

SHOCK, REAR LH, 2 RESIVOIRS, PIGGYBACK

7044291

$774.99

2

BUSHING, EYELET

1501035

$34.90

3

BUSHING, EYELET

1501010

$19.84

4

NUT, CENTER LOCK

1500871

$23.81

5

SCREW

1501011

$13.49

6

DECAL, PERFORMANCE

1501012

$15.37

7

DECAL, RESERVOIR

1501013

$11.32

8

O-RING,.103W-1.737ID

1500623

$6.46

9

O-RING

1500510

$6.46

10

SEAL, WEATHER

1501014

$8.89

10

SEAL, WEATHER

1501014

$8.89

10

SEAL, WEATHER

1501014

$8.89

10

SEAL, WEATHER

1501014

$8.89

11

RING, RETAINING

1500236

$9.52

12

RING-RETAINING, WIRE 2.050

1501015

$9.52

13

BODY, CAP [USED W/7044292]

1501017

$244.99

13

BODY, CAP [USED W/7044291]

1501016

$239.98

14

BODY

1501040

$111.33

15

KNOB, LOW SPEED

1501019

$11.32

16

EYELET

1501037

Unavailable

17

SLEEVE

1501020

$44.51

18

SLEEVE, EYELET

1501038

$39.99

19

SPACER, EYELET

1501022

$6.35

19

SPACER, EYELET

1501022

$6.35

19

SPACER, EYELET

1501022

$6.35

19

SPACER, EYELET

1501022

$6.35

20

RESERVOIR

1501023

$64.99

21

SHAFT

1500948

$17.99

22

RING, PRELOAD, BACK

1500872

$48.56

23

RING, PRELOAD

1500873

$52.60

24

SCREW, W/O RING

1500161

$44.99

25

ASM., PISTON, FLOAT

1501026

$54.99

26

ASM., VALVING

----

Unavailable

27

ASM., BEARING

1500940

$114.99

28

ASM., BEARING CAP

1500835

$109.99

29

ASM., END CAP, RESERVOIR

1501027

$114.99

30

ASM., DAMPING, ADJUSTER, LSC

1501006

Unavailable

31

BUMPER, B/O SHAFT

1500866

$32.37
