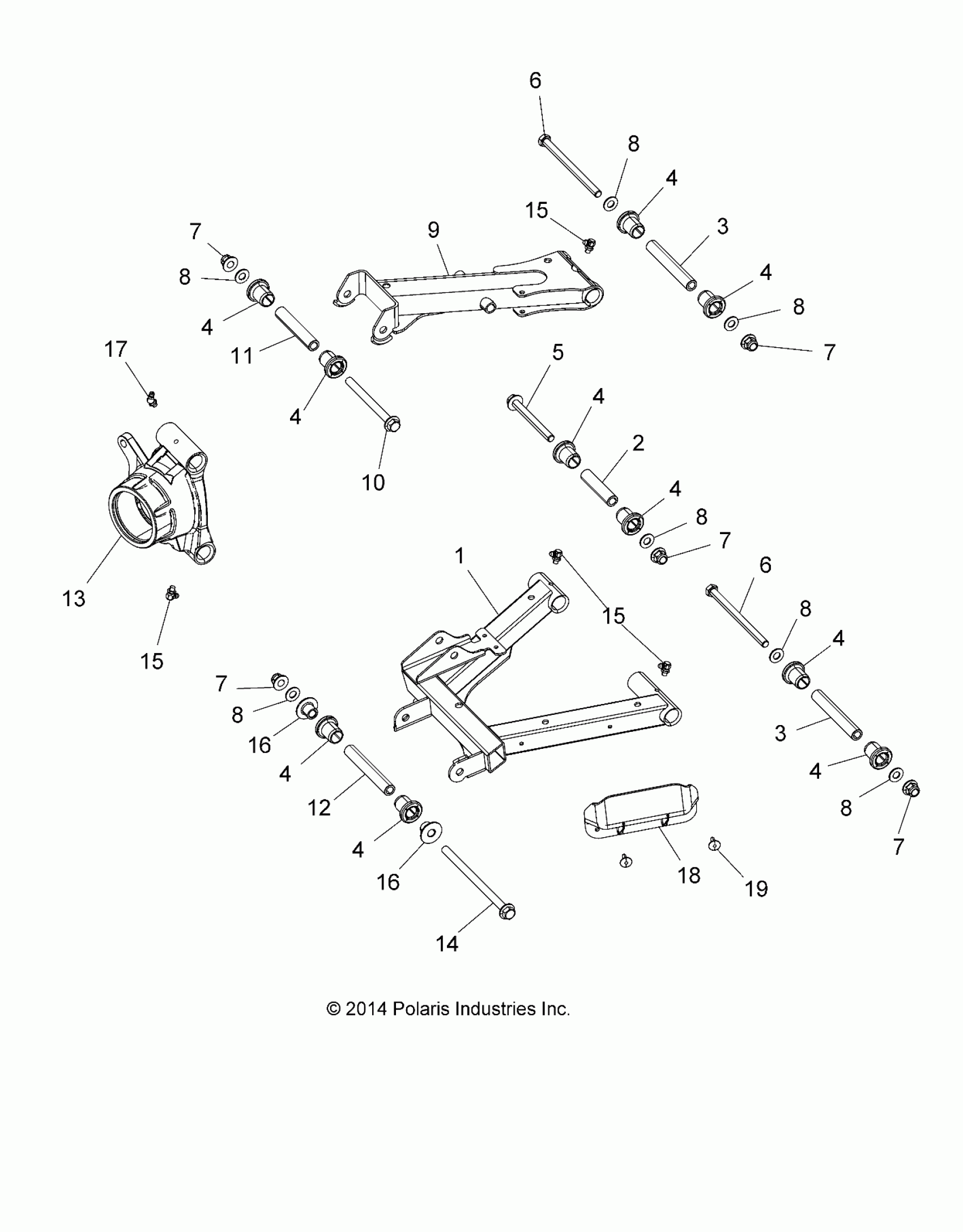

Polaris RZR 900 50/55 INCH ALL OPTIONS - Z15VAA87/E87/X87 SUSPENSION, REAR CONTROL ARMS - Z15VA87 ALL OPTIONS (49RGRSUSPRR15Z90050) Diagram

#

Description
Price

1

A-ARM, REAR, LOWER, RH, MATTE BLACK [AC][AJ][AL]

1019948-458

$159.75

1

A-ARM, REAR, LOWER, LH, MATTE BLACK [AC][AJ][AL]

1019947-458

$159.75

1

A-ARM, REAR, LOWER, LH, CLOUD SILVER [AK][AS][AI][AN]

1019947-385

Unavailable

1

A-ARM, REAR, LOWER, RH, CLOUD SILVER [AK][AS][AI][AN]

1019948-385

Unavailable

2

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$10.44

3

SHAFT, PIVOT

5138798

$28.32

3

SHAFT, PIVOT

5138798

$28.32

4

BUSHING-STANDARD,ORV

5439874

$2.38

4

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

4

BUSHING-STANDARD,ORV

5439874

$2.38

4

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

4

BUSHING-STANDARD,ORV

5439874

$2.38

4

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

4

BUSHING-STANDARD,ORV

5439874

$2.38

4

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

4

BUSHING-STANDARD,ORV

5439874

$2.38

4

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

4

BUSHING-STANDARD,ORV

5439874

$2.38

4

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

4

BUSHING-STANDARD,ORV

5439874

$2.38

4

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

4

BUSHING-STANDARD,ORV

5439874

$2.38

4

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

4

BUSHING-STANDARD,ORV

5439874

$2.38

4

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

4

BUSHING-STANDARD,ORV

5439874

$2.38

4

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

5

SCREW, HEX FLANGE

7519043

$9.52

6

SCREW

7519897

$13.49

6

SCREW

7519897

$13.49

7

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

7

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

7

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

7

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

7

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

8

WASHER

7556153

$1.98

8

WASHER

7556153

$1.98

8

WASHER

7556153

$1.98

8

WASHER

7556153

$1.98

8

WASHER

7556153

$1.98

8

WASHER

7556153

$1.98

8

WASHER

7556153

$1.98

9

A-ARM, REAR, UPPER, RH, MATTE BLACK [AC][AJ][AL]

1019946-458

$121.02

9

A-ARM, REAR, UPPER, LH, MATTE BLACK [AC][AJ][AL]

1019945-458

$121.02

9

A-ARM, REAR, UPPER, LH, CLOUD SILVER [AK][AS][AI][AN]

1019945-385

$121.02

9

A-ARM, REAR, UPPER, RH, CLOUD SILVER [AK][AS][AI][AN]

1019946-385

Unavailable

10

SCREW, HEX FLANGE

7519365

$13.49

11

SHAFT, PIVOT

5138794

$5.65

12

SHAFT, PIVOT

5138798

$28.32

13

CARRIER, BEARING, WHEEL, LH

5139770

$129.99

13

CARRIER, BEARING, WHEEL, RH

5139771

$113.99

14

SCREW, HEX FLANGE

7519042

$9.52

15

FITTING, ZERK

7080510

$5.56

15

FITTING, ZERK

7080510

$5.56

15

FITTING, ZERK

7080510

$5.56

16

BUSHING, PIVOT

5136102

$10.32

16

BUSHING, PIVOT

5136102

$10.32

17

FITTING

7080438

$10.32

17

FITTING, ZERK [AI][AN]

7080510

$5.56

18

GUARD, SHOCK ROD, BLACK

5451898-070

$24.27

19

RIVET

7621467

$1.19
