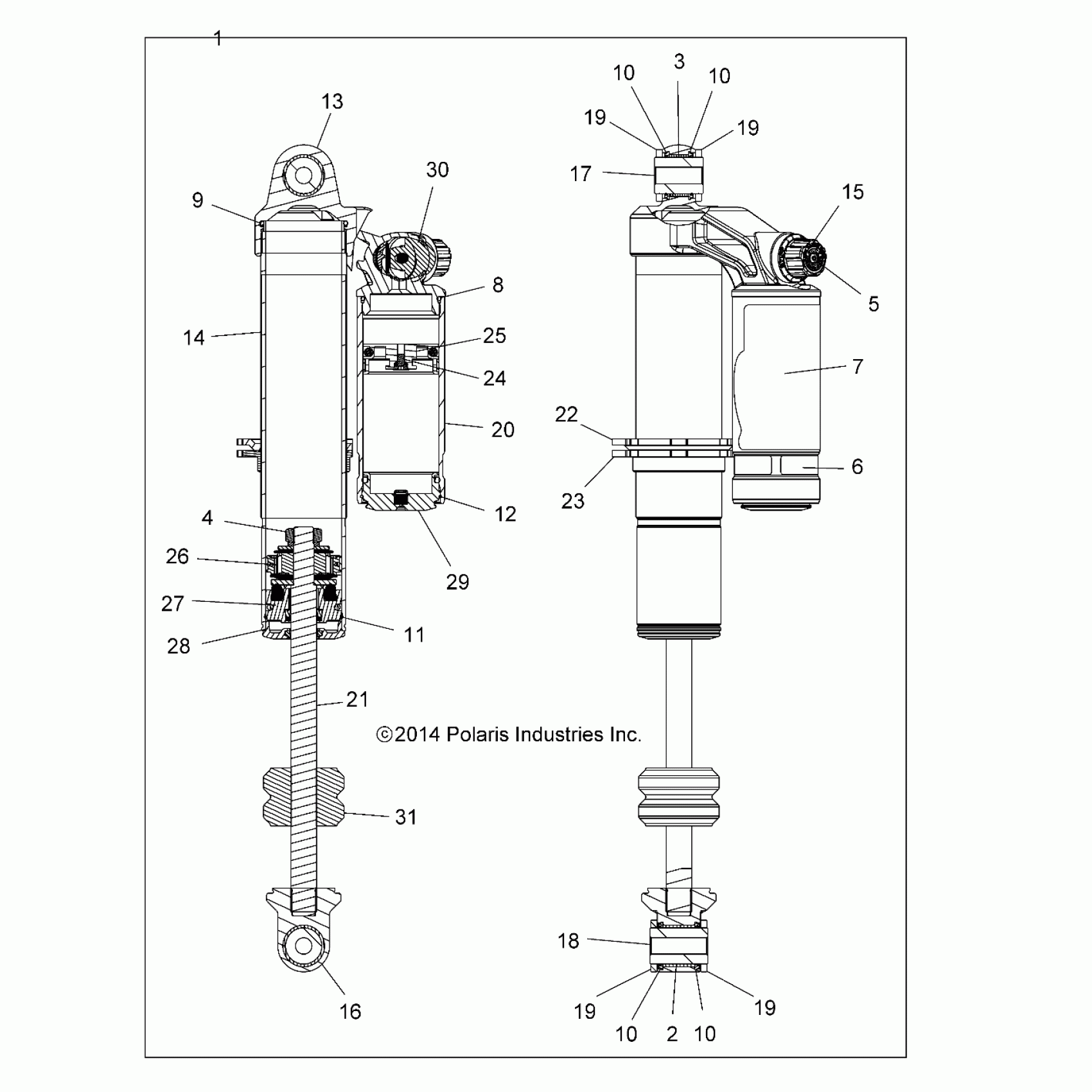

Polaris RZR 900 50/55 INCH ALL OPTIONS - Z15VAA87/E87/X87 SUSPENSION, FRONT SHOCK INTERNALS - Z15VAX87AL (49RGRSHOCKFRT7442890) Diagram

#

Description
Price

1

SHOCK, FRONT RIGHT, 2 RESERVOIRS, PIGGYBACK

7044290

Unavailable

1

SHOCK, FRONT LEFT, 2 RESERVOIRS, PIGGYBACK

7044289

$698.09

2

BUSHING, EYELET

1501035

$31.99

3

BUSHING, EYELET

1501010

$19.99

4

NUT, CENTER LOCK

1500871

Unavailable

5

SCREW

1501011

$13.59

6

DECAL, PERFORMANCE

1501012

$14.39

7

DECAL, RESERVOIR

1501013

$10.39

8

O-RING,.103W-1.737ID

1500623

$6.39

9

O-RING

1500510

$6.39

10

SEAL, WEATHER

1501014

$8.79

10

SEAL, WEATHER

1501014

$8.79

10

SEAL, WEATHER

1501014

$8.79

10

SEAL, WEATHER

1501014

$8.79

11

RING, RETAINING

1500236

$9.59

12

RING-RETAINING, WIRE 2.050

1501015

$9.59

13

BODY, CAP [USED W/7044289]

1501029

$136.39

13

BODY, CAP [USED W/7044290]

1501030

$136.39

14

BODY

1501036

$63.99

15

KNOB, LOW SPEED

1501019

$10.39

16

EYELET

1501037

$131.99

17

SLEEVE

1501020

$39.99

18

SLEEVE, EYELET

1501038

Unavailable

19

SPACER, EYELET

1501022

Unavailable

19

SPACER, EYELET

1501022

Unavailable

19

SPACER, EYELET

1501022

Unavailable

19

SPACER, EYELET

1501022

Unavailable

20

RESERVOIR

1501023

$57.19

21

SHAFT

1501039

$48.40

22

RING, PRELOAD, BACK

1500872

$43.99

23

RING, PRELOAD

1500873

$47.99

24

SCREW, W/O RING

1500161

Unavailable

25

ASM., PISTON, FLOAT

1501026

$48.39

26

ASM., VALVING

-------

Unavailable

27

ASM., BEARING

1500940

$101.19

28

ASM., BEARING CAP

1500835

$96.79

29

ASM., END CAP, RESERVOIR

1501027

$101.19

30

ASM., DAMPING, ADJUSTER, LSC

1501034

$109.99

31

BUMPER, B/O SHAFT

1501028

$26.39
