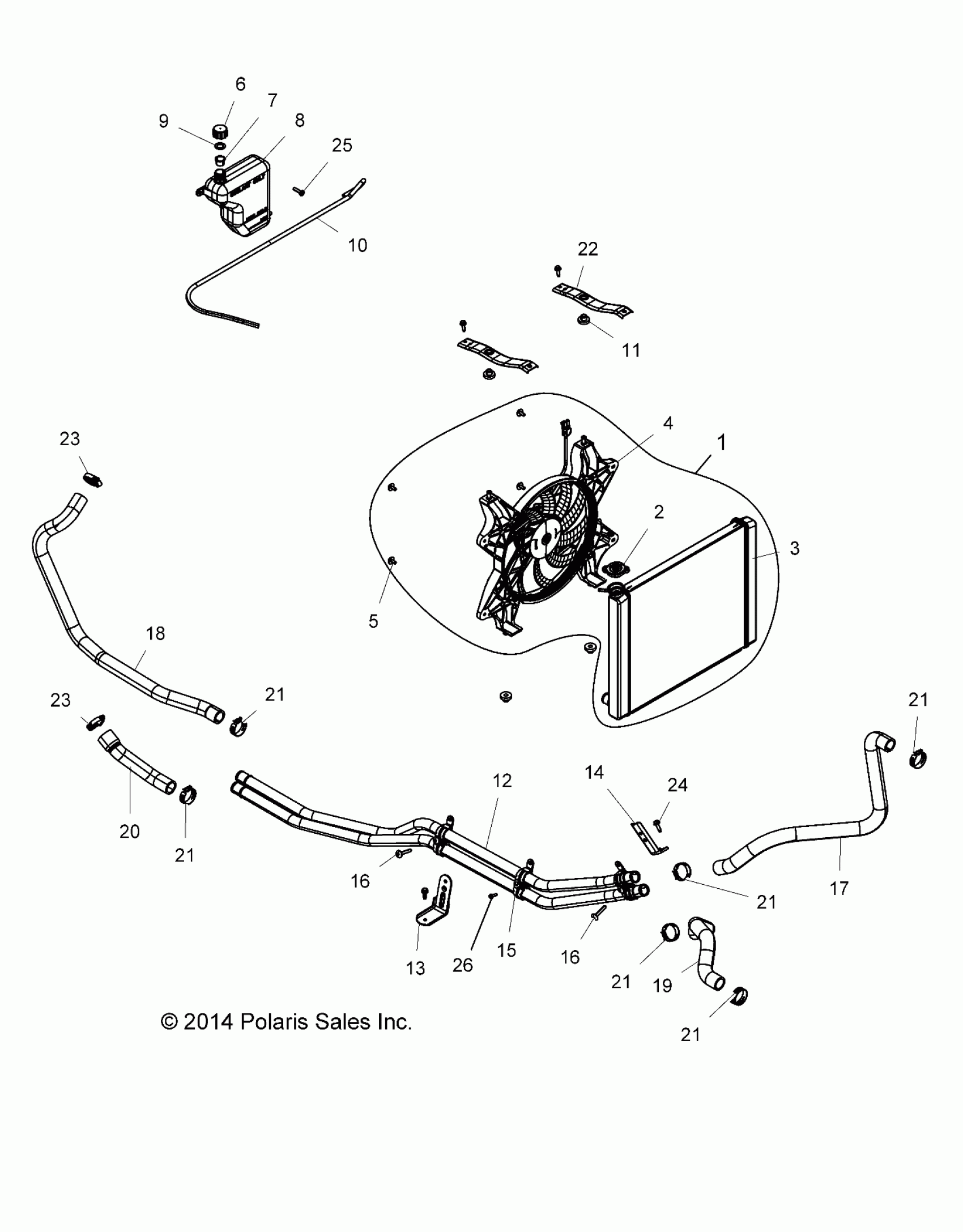

Polaris RZR 900 50/55 INCH ALL OPTIONS - Z15VAA87/E87/X87 ENGINE, COOLING SYSTEM - Z15VA87 ALL OPTIONS (49RGRCOOL15Z90050) Diagram

#

Description
Price

1

ASM., RADIATOR [INCL. 2-5]

1240712

$545.99

2

CAP

1240694

$39.99

3

ASM., RADIATOR, CORE

1240745

$440.69

4

FAN, ASM.

2412447

$239.99

5

BOLT

7519585

$9.59

6

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

7

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

8

TANK-SURGE

5439202

$91.99

9

GASKET-OVERFLOW CAP

5810279

$2.41

10

Line, Fuel

8450003-1525

Unavailable

11

GROMMET, FLANGED

7052028

$6.39

12

ASM., COOLANT TUBE [AI][AN]

1240716

Unavailable

12

ASM., COOLANT TUBE [BUILT 10/1/14 AND BEFORE]

1240716

Unavailable

12

ASM., COOLANT TUBE [BUILT 10/2/14 AND AFTER]

1240873

Unavailable

13

BRACKET, COOLANT TUBE, BLACK [BUILT 10/2/14 AND AFTER]

5259433-329

$27.99

13

BRACKET, COOLANT TUBE, BLACK [AI][AN]

5256495-329

Unavailable

13

BRACKET, COOLANT TUBE, BLACK [BUILT 10/1/14 AND BEFORE]

5256495-329

Unavailable

14

BRACKET, COOLANT TUBE, BLACK

5257294-329

$27.99

15

BRACKET-COOLANT TUBE [BUILT 10/2/14 AND AFTER]

5451221

$8.79

15

BRACKET, COOLANT TUBE [AI][AN]

5450301

$5.59

15

BRACKET, COOLANT TUBE [BUILT 10/1/14 AND BEFORE]

5450301

$5.59

16

SCREW [BUILT 10/2/14 AND AFTER]

7519001

$3.99

16

SCREW [AI][AN]

7518914

$3.19

16

SCREW [BUILT 10/1/14 AND BEFORE]

7518914

$3.19

16

SCREW [BUILT 10/2/14 AND AFTER]

7519001

$3.99

16

SCREW [AI][AN]

7518914

$3.19

16

SCREW [BUILT 10/1/14 AND BEFORE]

7518914

$3.19

17

HOSE, UPPER, RADIATOR

5414528

$63.99

18

HOSE, ENGINE OUTLET, REAR

5414531

$43.99

19

HOSE, LOWER, RADIATOR, LONG

5414532

$43.99

20

HOSE, ENGINE INLET, REAR

5414533

$31.99

21

SPRINGBAND, CLAMP

7080844

$10.39

21

SPRINGBAND, CLAMP

7080844

$10.39

21

SPRINGBAND, CLAMP

7080844

$10.39

21

SPRINGBAND, CLAMP

7080844

$10.39

21

SPRINGBAND, CLAMP

7080844

$10.39

21

SPRINGBAND, CLAMP

7080844

$10.39

22

BRACKET, UPPER RADIATOR MOUNT, BLACK

5256879-329

$31.99

23

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

23

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

24

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

25

SCR-#14X1 HI/LO-PH-PN TRX-M

7518158

$4.79

26

SCREW

7512026

$1.49
