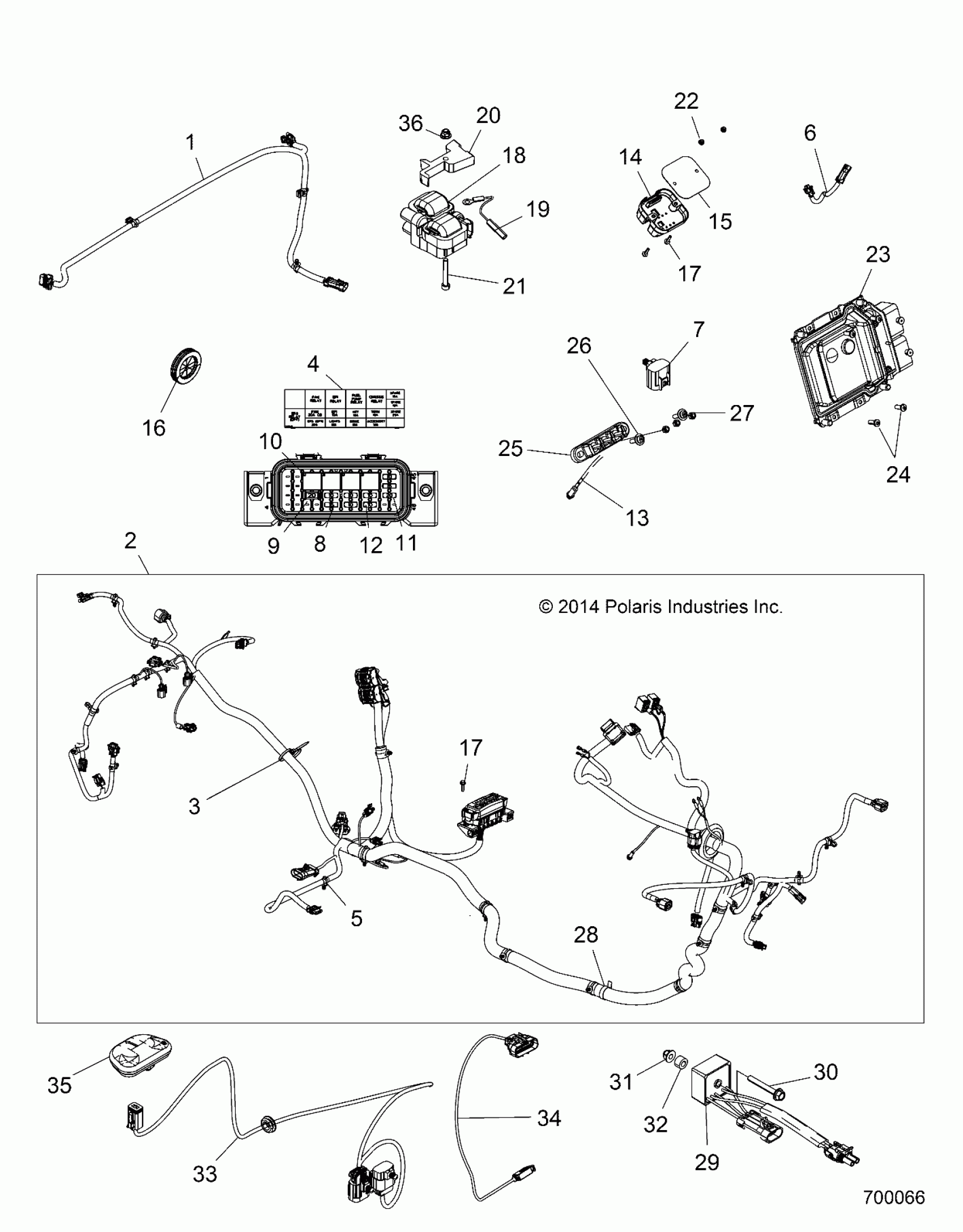

Polaris RZR 900 50/55 INCH ALL OPTIONS - Z15VAA87/E87/X87 ELECTRICAL, WIRE HARNESS - Z15VA87 ALL OPTIONS (700066) Diagram

#

Description
Price

1

HARNESS, BOX

2412287

$51.99

2

HARNESS, CHASSIS [AK][AS][AL][AI][AN][BUILT 2/25/15 AND BEFORE]

2412276

Unavailable

2

HARNESS, CHASSIS [AK][AS][AL][AI][AN][BUILT 2/26/15 AND AFTER]

2413236

$998.79

2

HARNESS, CHASSIS [AJ][AC][INCL. 3-5,7-13]

2412725

Unavailable

3

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

4

LABEL, FUSE BOX

7179870

Unavailable

5

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

6

WIRE, THERMISTER LEAD

4014319

$75.99

7

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

8

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

9

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

10

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

11

FUSE-PARK,20 AMP

2434017

Unavailable

12

FUSE-IGNITION,10 AMP

2434016

$4.79

13

LED, PANEL MOUNT

2412443

Unavailable

14

REGULATOR-3PH,50A,SERIES,HISPD

4014856

Unavailable

15

PLATE, HEAT SINK, REGULATOR

5254970

Unavailable

16

GROMMET

5414440

$7.19

17

BOLT, FLANGE, BLACK

7518576

$3.19

17

BOLT, FLANGE, BLACK

7518576

$3.19

18

COIL-EFI

4010425

Unavailable

19

JUMPER ,COIL GROUND

4014422

$27.99

20

SPACER-COIL MOUNT

5436577

$3.99

21

SCREW

7518780

$3.99

22

NUT- M8X1.25, FLG, NYLOC-OLIVE D [AI][AN]

7547332

$3.99

22

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

23

ECM, NO START

4014125

$694.99

24

SCREW

7519091

$3.19

25

BLOCK, TERMINAL, 3 POST

4011892

$27.99

26

Screw

7518196

$1.49

27

NUT

7547341

$1.49

28

CABLE-TIE,DIA12-50MM,WTHR-RES. [AK][AS][AL][AI][AN]

7080138

$2.41

29

RELAY [AK][AS][AL][AI][AN]

4012829

$71.99

30

SCREW [AK][AS][AL]

7519257

$3.99

30

BOLT [AI][AN]

7518612

$4.79

31

NUT- M8X1.25, FLG, NYLOC-OLIVE D [AK][AS][AL][AI][AN]

7547332

$3.99

32

SPACER-.26X.50X.31 [AK][AS][AL]

7556318

$2.39

33

HARNESS, GPS RECEIVER, MFD [AL]

2412817

$75.99

34

HARNESS, USB, MFD [AL]

2412818

$47.99

35

GPS, ANTENNA, RECEIVER, CAN [AL]

4014811

$387.19

36

NUT-M6 FLANGE,NYLOC [AI][AN]

7547274

$1.49
