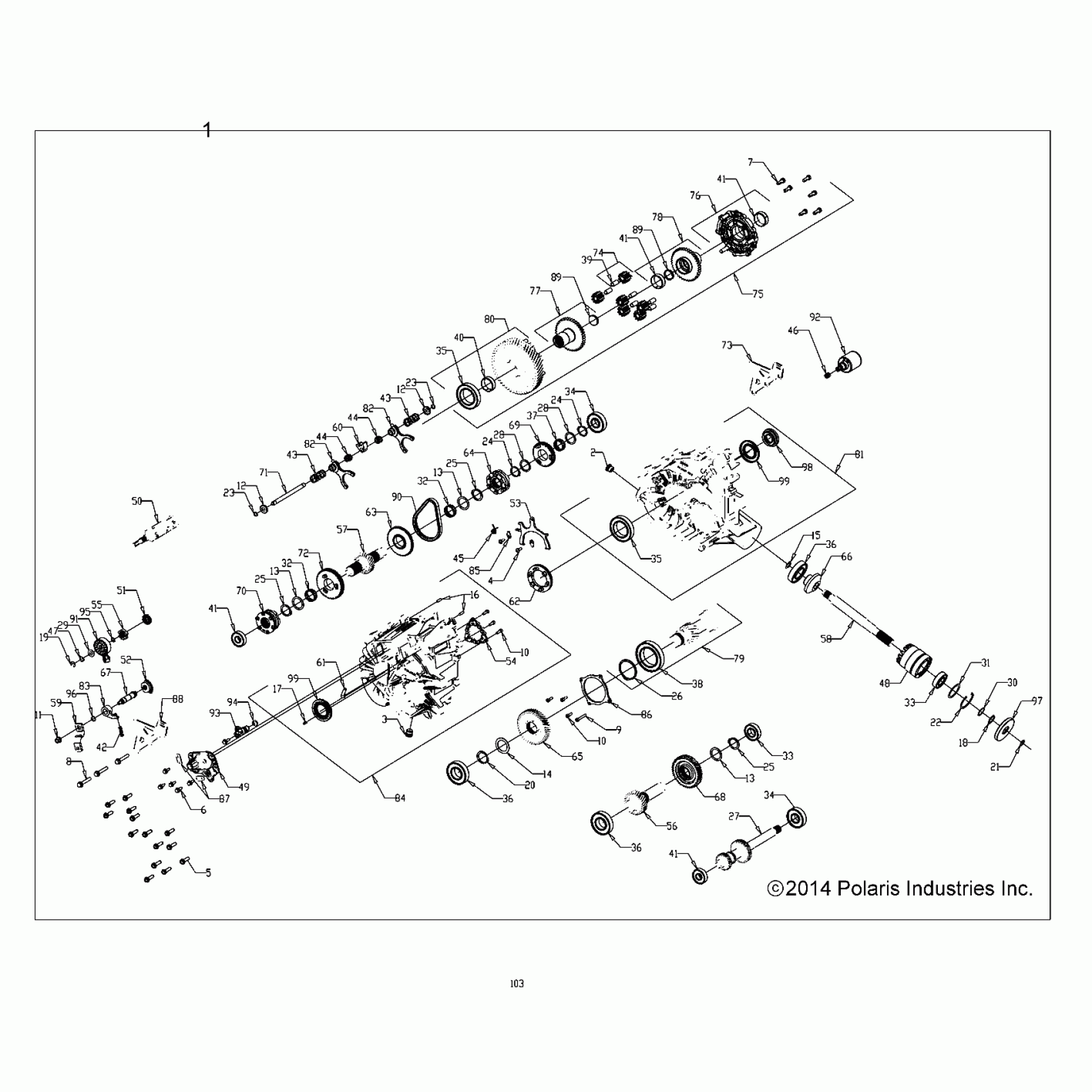

Polaris RZR 900 50/55 INCH ALL OPTIONS - Z15VAA87/E87/X87 DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z15VAE87AK/AS/AI/AN/X87AL (49RGRGEARCASE1333267) Diagram

#

Description
Price

1

ASM., GEARCASE, COMPLETE

1333267

$4,119.99

2

PLUG, M18 X 1.5

3234755

$27.99

3

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

4

SCREW, TORX, PAN HEAD

3234309

$7.19

5

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

6

SCREW, HEX FLANGE

3235206

$7.19

7

SCREW

3235096

Unavailable

8

SCREW, HEX FLANGE

3235207

$10.39

9

SCREW, SOCKET HEAD

3235208

$11.19

10

SCREW, SOCKET HEAD

3235332

$3.99

10

SCREW, SOCKET HEAD

3235332

$3.99

11

NUT, FLANGE, NYLON

3235210

$7.99

12

WASHER-CUP

3234091

$9.59

12

WASHER-CUP

3234091

$9.59

13

WASHER

3235211

$10.39

13

WASHER

3235211

$10.39

13

WASHER

3235211

$10.39

14

WASHER

3235212

$13.59

15

WASHER

3235213

$15.99

16

PIN, DOWEL 6 X 20

3234330

$7.19

17

SPRING, SLOTTED PIN

7043746

$7.19

18

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

19

RING, SNAP

3233834

$10.39

20

RING, RETAINING

3233364

$6.39

21

RING, RETAINING, EXTERNAL

3234318

$3.19

22

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.59

23

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

23

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

24

RING, RETAINING

3234205

$11.19

24

RING, RETAINING

3234205

$11.19

25

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

25

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

25

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

26

REING, RETAINING

3235216

$10.39

27

SHAFT, INPUT

3235560

$219.99

28

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

28

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

29

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

30

SHIM

3234272

$31.99

31

SHIM

3234273

$12.79

32

BEARING, NEEDLE

3233014

$43.99

32

BEARING, NEEDLE

3233014

$43.99

33

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

33

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

34

BEARING

3233020

$47.99

34

BEARING

3233020

$47.99

35

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

35

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

36

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

36

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

36

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

37

BEARING, NEEDLE, CAGED

3233384

$31.99

38

BEARING, BALL

3235218

$59.99

39

BEARING

3234239

$15.99

40

BEARING

3234241

$15.99

41

BEARING, BALL

3234652

$15.99

41

BEARING, BALL

3234652

$15.99

41

BEARING, BALL

3234652

$15.99

41

BEARING, BALL

3234652

$15.99

42

SPRING, COMPRESSION

3233830

$10.39

43

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

43

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

44

SPRING, COMPRESSION

3234089

$23.99

44

SPRING, COMPRESSION

3234089

$23.99

45

SPRING, TORSION, RETURN

3234276

$7.99

46

SPRING, COMPRESSION 0.54 X 0.44 X 0.05 WIRE

3234277

$12.79

47

SPRING, WASHER

3235327

$9.59

48

TUBE, SNORKLE

3234278

$95.99

49

COVER, SECTOR GEARS

3234188

$107.99

50

DRUM-SHIFT,MACH.(255289)

3235463

$263.99

51

GEAR, SECTOR 16T

3233839

$31.99

52

GEAR-SECTOR,31T

3233832

$31.99

53

SHAFT, BOSS, LOWER, INPUT

3235560

$219.99

54

PARK PLATE

3235456

$35.99

55

DETENT STAR

3235603

$35.99

56

SHAFT, IDLER, 29T

3235223

$107.99

57

SHAFT-REVERSE,27T(285878)

3235380

$243.99

58

SHAFT, FRONT OUTPUT

3235394

$131.99

59

BELLCRANK, 92 DEG

3235581

$39.99

60

COLLAR-SHIFT

3234073

$31.99

61

TUBE, VENT HOSE

3234230

$9.59

62

DOG, ENGAGEMENT

3234928

$67.99

63

SPROCKET, 48T, 6- FACE

3235231

$79.99

64

ENGAGEMENT DOG, 6-FACE

3235233

$119.99

65

GEAR, 46T, STAGE 3

3235236

$103.99

66

GEAR, 13T, FRONT OUTPUT

3235237

$123.99

67

SHAFT-SHIFT(352973)

3235238

$37.61

68

GEAR, 46T, STAGE 2

3235381

$123.99

69

GEAR, 49T

3235396

$123.99

70

SHIFT DOG, PARK/LOW

3235457

$135.99

71

RAIL, SHIFT SHAFT

3235542

$27.99

72

GEAR, LOW 61T

3235561

$79.99

73

BRACKET, REAR MOUNT

3235399

$47.99

74

GEAR SUBASSEMBLY [INCL. BUSHING]

3234469

$67.99

75

SUBASM., AVALANCHE DIFFERENTIAL

3235373

$431.19

76

SUBASM., DIFFERENTIAL COVER [INCL., PLUG, BUSHING]

3235376

$131.99

77

SUBASM., 39T, SIDE GEAR [INCL. PLUG]

3235374

$179.99

78

SUBASM., 39T, SIDE GEAR [INCL. PLUG, BUSHING]

3235375

$179.99

79

SUBASM.,SHAFT [INCL. BEARING & RETAINER RING]

3235336

$355.99

80

SUBASM., 53T, GEAR [INCL. PINS, BUSHING, BEARING]

3235378

$379.99

81

SUBASM., LH, CASE [INCL. ALL HARDWARE]

3235422

$616.98

82

SUBASM., SHIFT FORK

3235454

$83.99

82

SUBASM., SHIFT FORK

3235454

$83.99

83

ROLLER PAWL

3235452

$31.99

84

SUBASM., RH, CASE [INCL. ALL HARDWARE]

3235444

$480.30

85

RETAINER-FORK

3234934

$10.39

86

COVER-BEARING,CNTR DR.

3235241

$43.99

87

BRACKET, WIRE HARNESS

3235350

$8.79

88

BRACKET, MOUNT, REAR

3235398

$67.99

89

PLUG,EXPANSION,1 1/4

3234249

$13.59

89

PLUG,EXPANSION,1 1/4

3234249

$13.59

90

CHAIN,SIL 101,.25P X .40W X58L

3234737

$159.99

91

SWITCH, ROTARY 2 PIN RESISTIVE

7661999

$111.99

92

SOLENOID

3235478

$275.99

93

SENSOR-SPEED

4082135

$103.99

94

O-RING, -016 VITON

3236279

$7.19

95

O-RING

3233836

$6.87

96

O-RING

3233828

$6.79

97

SEAL, TRIPLE LIP

3234113

$35.99

98

SEAL

3234851

$35.99

99

SEAL, TRIPLE LIP, VITON

3235052

$31.99

99

SEAL, TRIPLE LIP, VITON

3235052

$31.99
