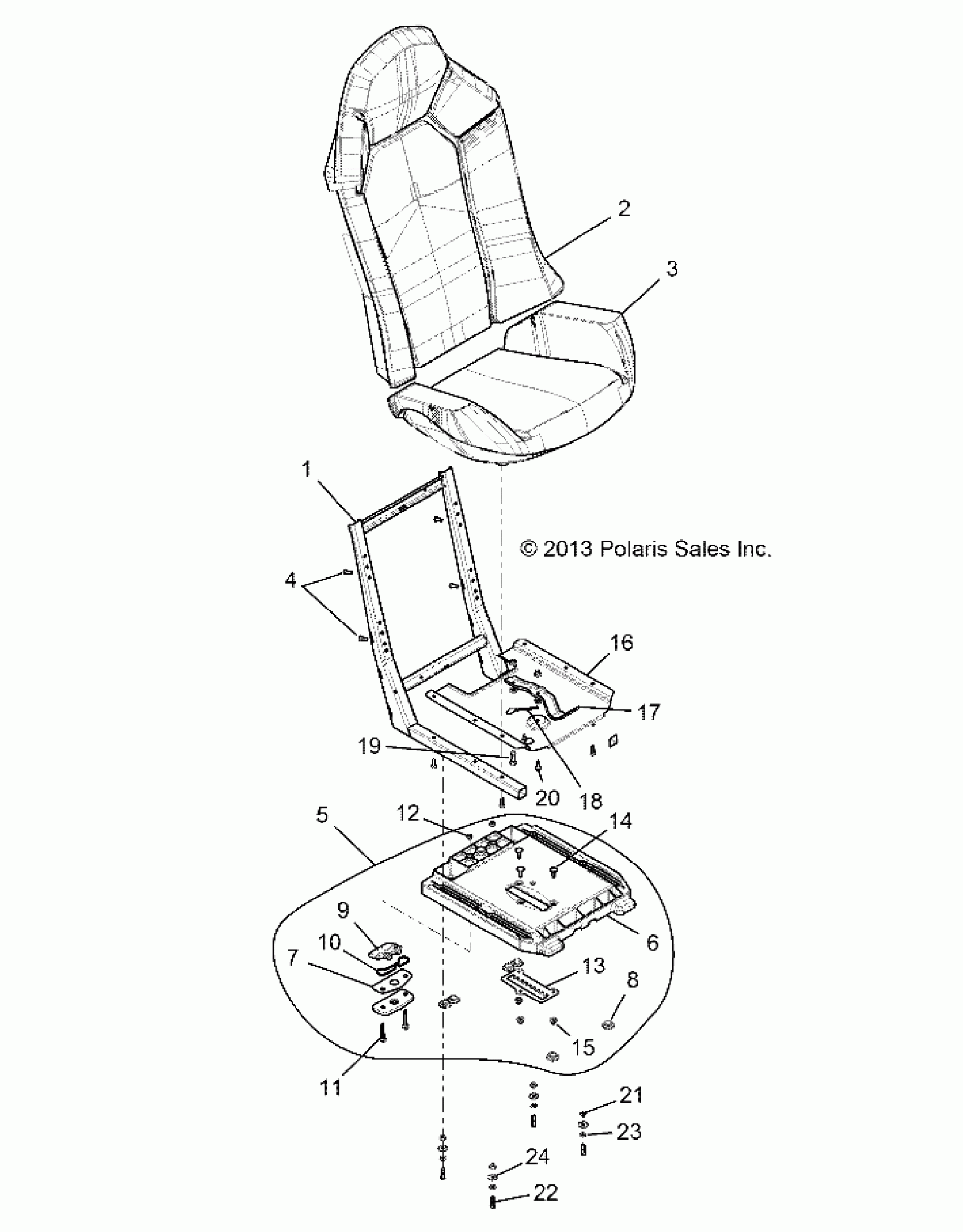

Polaris RZR 900 50/55 INCH ALL OPTIONS - Z15VAA87/E87/X87 BODY, SEAT ASM. AND SLIDER - Z15VAE87AK/AS/AI/AN/X87AL (49RGRSEAT14RZR1000) Diagram

#

Description
Price

1

FRAME, SEAT

1019447

$215.99

2

ASM., SEAT BACK, BLACK/WHITE [AK][AS][AI][AN]

2686277

$355.99

2

ASM., SEAT BACK, BLACK/SILVER [AL]

2685638

Unavailable

3

ASM., SEAT BOTTOM, BLACK/WHITE [AK][AS][AI][AN]

2686280

$355.99

3

ASM., SEAT BOTTOM, BLACK/SILVER [AL]

2686011

Unavailable

4

SCREW

7515177

$3.19

5

ASM., BASE, SEAT SLIDER [INCL. 6-14, QTY 6 OF 15]

2685704

$195.99

6

ASM., BASE, SEAT [INCL. 7-12]

2634889

$123.99

7

PLATE-LATCH,SEAT

5258647

$6.39

8

GROMMET, SEAT BASE

5413441

$3.99

9

HANDLE-SEAT BASE LATCH

5437121

$4.84

10

SPRING, LATCH, SEAT

7081466

$39.99

11

Screw

7517610

$1.59

12

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

13

BRACKET, SEAT SLIDER ADJUSTMENT PLATE

5257975

Unavailable

14

BOLT, CARRIAGE

7518994

$3.22

15

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

16

BRACKET, SEAT SLIDER MOUNTING PLATE

5257974

$63.99

17

BRACKET, SEAT SLIDER LEVER

5260101

Unavailable

18

SPRING

7044099

$5.59

19

BOLT, SHOULDER

7518786

$2.39

20

BOLT, SHOULDER

7518897

$1.59

21

TUBE, SPACER

5337939

Unavailable

22

SCREW

7519296

$1.59

23

WASHER, SPRING LOCK

7552801

$1.59

24

Washer, Flat

7555859

$1.49
