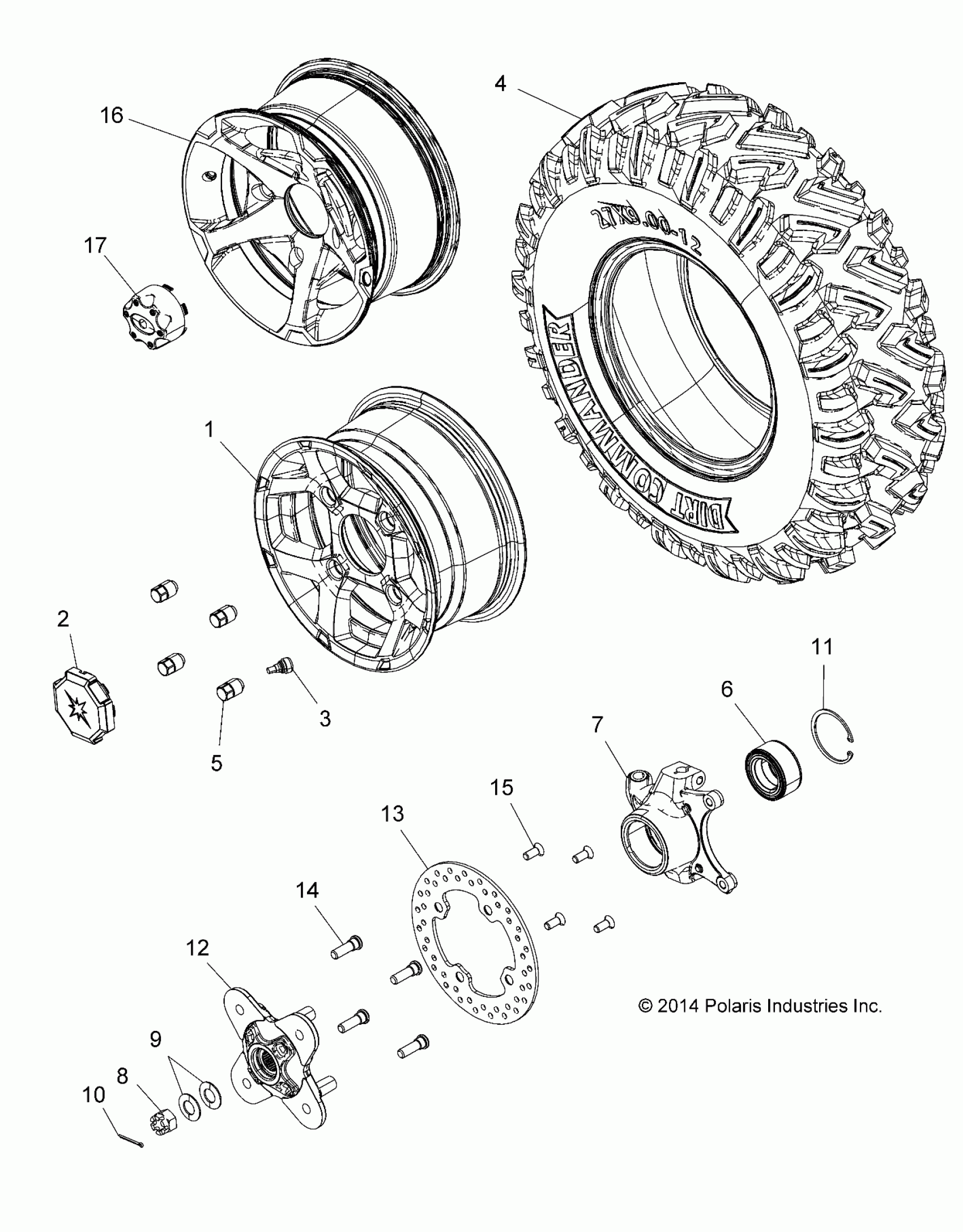

Polaris RZR 900 50/55 INCH ALL OPTIONS (R18) - Z16VAA87/E87/X87 WHEELS, FRONT - Z16VAE87A9/AL/AR/AU/AW (49RGRWHEELFRT15Z900AL) Diagram

#

Description
Price

1

RIM, CAST [A9][AR][AU][AW][AL]

1522230-655

$125.99

2

CAP, RIM, BLACK [A9][AR][AU][AW]

1522216-655

$38.71

3

VALVE-RIM

1525017

$5.59

4

TIRE, FRONT, 26X8-12 [A9][AR][AU][AW][AL]

5412686

Unavailable

5

NUT, WHEEL, TAPERED

7547489

$9.59

6

BEARING, BALL, SEALED

3514822

Unavailable

6

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.99

7

CARRIER, BEARING, WHEEL, LH

5139093

Unavailable

7

CARRIER, BEARING, WHEEL, RH

5139094

Unavailable

8

NUT, CASTLE, ZINC/YELLOW

7547337

$1.99

9

WASHER, CONE

7555796

$7.99

10

PIN, COTTER

7661404

$4.79

11

RING-RETAINING,2.835,INTERNAL

7710780

$9.59

12

HUB, WHEEL, MATTE BLACK

5139978-458

Unavailable

13

DISC, BRAKE

5254999

$67.99

14

STUD, WHEEL

7519753

$4.79

15

SCREW

7518978

$3.99

17

CAP, RIM [AL]

1521509-521

$13.37
