- RZR 900 50/55 INCH ALL OPTIONS (R18) - Z16VAA87/E87/X87
SUSPENSION, FRONT SHOCK INTERNALS - Z16VAX87AL/AW (700262)

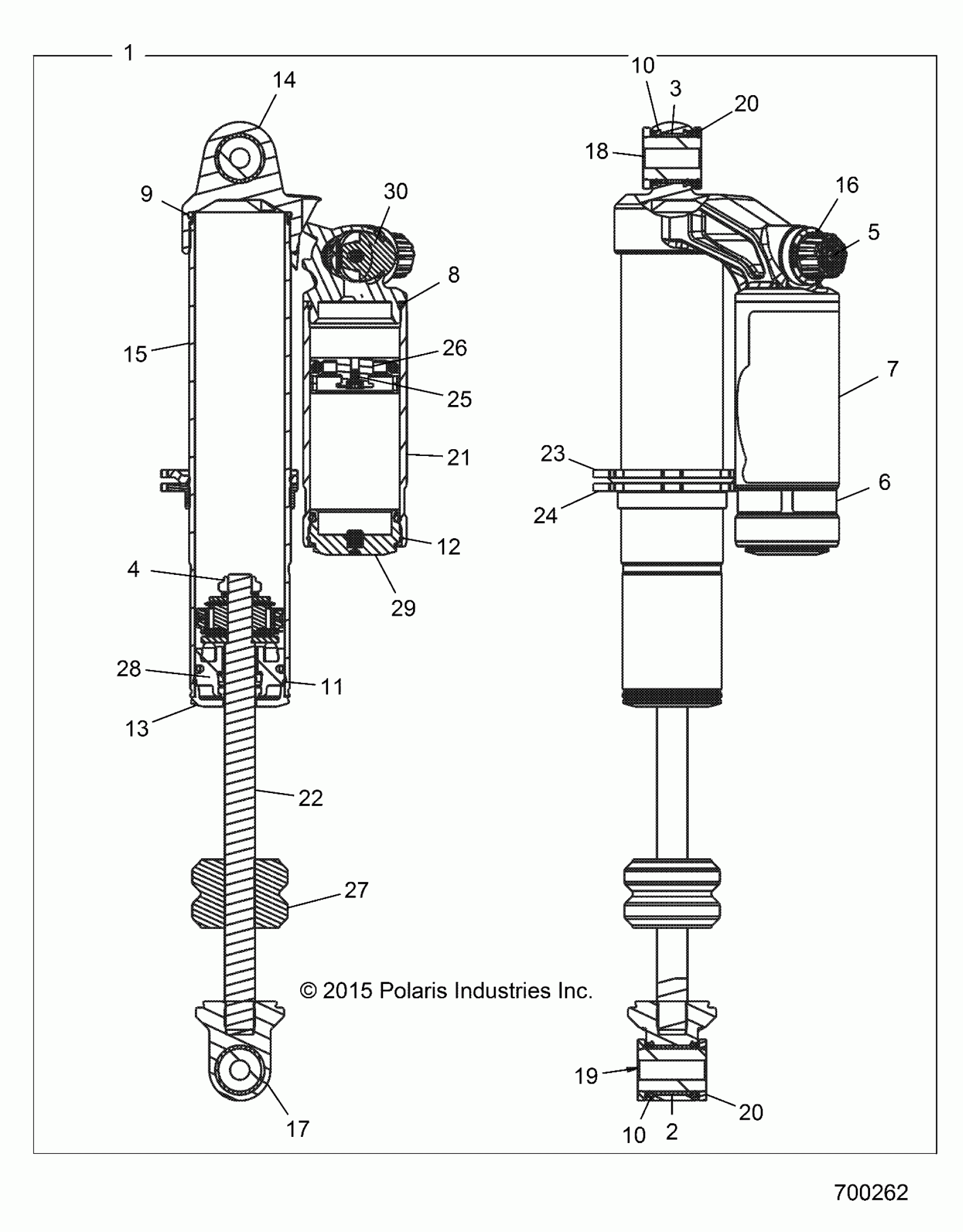

Polaris RZR 900 50/55 INCH ALL OPTIONS (R18) - Z16VAA87/E87/X87 SUSPENSION, FRONT SHOCK INTERNALS - Z16VAX87AL/AW (700262) Diagram
#
Description
Price
1
PLATE, TOP OUT
1500943
$31.99
1
PLATE: TOP-OUT [1.570 OD X 0.503 ID X 0.128 TH, � 0.620 SHAFT]
1500838
$12.79
1
SHOCK, FRONT RIGHT, 2 RESERVOIRS, PIGGYBACK [INCL ALL]
7044486
$866.79
1
SHOCK, FRONT LEFT, 2 RESERVOIRS, PIGGYBACK [INCL ALL]
7044485
$840.39
2
BUSHING, EYELET .875 SHAFT
1501035
$31.99
3
BUSHING, EYELET
1501010
$19.99
4
FASTENER, STANDARD: NUT, LOCK [1/2-20 X 0.313 TLG]
1500842
Unavailable
5
SCREW, #4, SS PAN
1501011
$13.59
6
DECAL, PERF SERIES
1501012
$14.39
7
DECAL, RESERVOIR
1501013
$10.39
8
O-RING,.103W-1.737ID
1500623
$6.39
9
SEALS:O-RING [(-135) .103 C.S. X 1.925 ID] STANDARD, N-70, STATIC
1500510
$6.39
10
SEAL, WEATHER
1501014
$8.79
10
SEAL, WEATHER
1501014
$8.79
11
RETAINING RING: WIRE [0.062 CS X 1.850 ID] 17-7 SS
1500236
$9.59
12
RING-RETAINING, WIRE 2.050
1501015
$9.59
13
CAP, BEARING
1501100
$39.99
14
BODY CAP 135DEG. PG [USE W/7044485]
1501029
$136.39
14
BODY CAP 45DEG. PB [USE W/7044486]
1501030
$136.39
15
BODY, 1.834X9.9TLG
1501036
$63.99
16
KNOB, LOW SPEED
1501019
$10.39
17
EYELET
1501037
$131.99
18
EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG
1501087
$23.99
19
EYELET PARTS: (T) SLEEVE [0.397 ID X 0.875 OD X 1.400 TLG] SNAP FIT SPACER, CHRO
1501090
$23.99
20
EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG
1501088
$6.39
20
EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG
1501088
$6.39
21
RESERVOIR, 5" THD.
1501023
$57.19
22
SHAFT, .62X9.4TLG
1501039
$48.40
23
SPRING HARDWARE: PRELOAD RING BACK UP [3.250 OD X 0.280 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED
1500872
$43.99
24
SPRING HARDWARE: PRELOAD RING [3.250 OD X 0.515 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED
1500873
$47.99
25
SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE, COMPLETE
1500161
Unavailable
26
ASM., PISTON, FLOAT
1501026
$48.39
27
BUMPER, B/O SHAFT
1501028
$26.39
28
ASM., BEARING
1501099
$69.99
29
ASM., END CAP, RESERVOIR
1501027
$101.19
30
ASM., DAMP. ADJ. LSC
1501034
$109.99
