- RZR 900 50/55 INCH ALL OPTIONS (R18) - Z16VAA87/E87/X87
SUSPENSION, FRONT CONTROL ARMS - Z16VA87 ALL OPTIONS (49RGRSUSPFRT15Z90050)

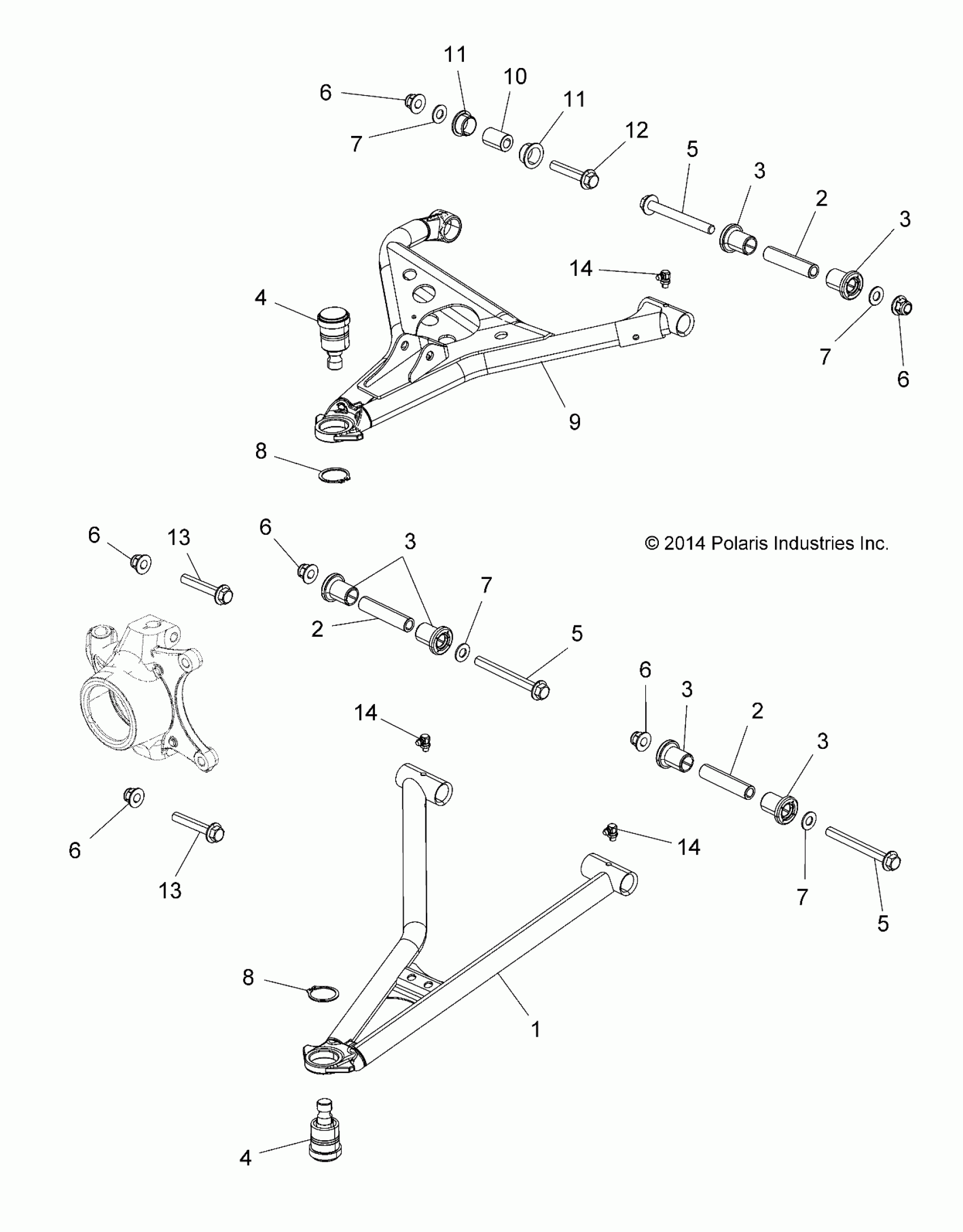

Polaris RZR 900 50/55 INCH ALL OPTIONS (R18) - Z16VAA87/E87/X87 SUSPENSION, FRONT CONTROL ARMS - Z16VA87 ALL OPTIONS (49RGRSUSPFRT15Z90050) Diagram
#
1
CONTROL ARM, LOWER, FRONT, LH, 50, MATTE BLACK [A2][AL][A9]
1018816-458
$131.99
1
CONTROL ARM, LOWER, FRONT, RH, 50, MATTE BLACK [A2][AL][A9]
1018817-458
$131.99
1
CONTROL ARM, LOWER, FRONT, LH, 50, CLOUD SILVER [AR][AU][AW]
1018816-385
$131.99
1
CONTROL ARM, LOWER, FRONT, RH, 50, CLOUD SILVER [AR][AU][AW]
1018817-385
$131.99
2
SHAFT-PIVOT,70.99MM,15.88OD
5138797
$8.79
2
SHAFT-PIVOT,70.99MM,15.88OD
5138797
$8.79
2
SHAFT-PIVOT,70.99MM,15.88OD
5138797
$8.79
3
BUSHING-STANDARD,ORV
5439874
$2.39
3
ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]
1543367
$10.39
3
BUSHING-STANDARD,ORV
5439874
$2.39
3
ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]
1543367
$10.39
3
BUSHING-STANDARD,ORV
5439874
$2.39
3
ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]
1543367
$10.39
3
BUSHING-STANDARD,ORV
5439874
$2.39
3
ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]
1543367
$10.39
3
BUSHING-STANDARD,ORV
5439874
$2.39
3
ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]
1543367
$10.39
4
BALL, JOINT
7081924
Unavailable
4
BALL, JOINT
7081924
Unavailable
5
SCREW, HEX FLANGE
7519043
$9.59
5
SCREW, HEX FLANGE
7519043
$9.59
5
SCREW, HEX FLANGE
7519043
$9.59
6
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
6
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
6
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
6
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
6
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
6
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
7
WASHER
7556153
$1.99
7
WASHER
7556153
$1.99
7
WASHER
7556153
$1.99
7
WASHER
7556153
$1.99
8
RING, RETAINER
7710533
$2.39
8
RING, RETAINER
7710533
$2.39
9
CONTROL ARM, UPPER, FRONT, LH, 50, MATTE BLACK [A2][AL][A9]
1018818-458
$183.99
9
CONTROL ARM, UPPER, FRONT, RH, 50, MATTE BLACK [A2][AL][A9]
1018819-458
$183.99
9
CONTROL ARM, UPPER, FRONT, LH, 50, CLOUD SILVER [AR][AU][AW]
1018818-385
$183.99
9
CONTROL ARM, UPPER, FRONT, RH, 50, CLOUD SILVER [AR][AU][AW]
1018819-385
$183.99
10
TUBE, PIVOT
5138276
$23.99
11
BUSHING
5450095
$2.39
11
BUSHING
5450095
$2.39
12
SCREW, HEX FLANGE
7519285
$2.39
13
SCREW, HEX FLANGE
7519306
$5.59
13
SCREW, HEX FLANGE
7519306
$5.59
14
FITTING, ZERK
7080510
$5.59
14
FITTING, ZERK
7080510
$5.59
14
FITTING, ZERK
7080510
$5.59
