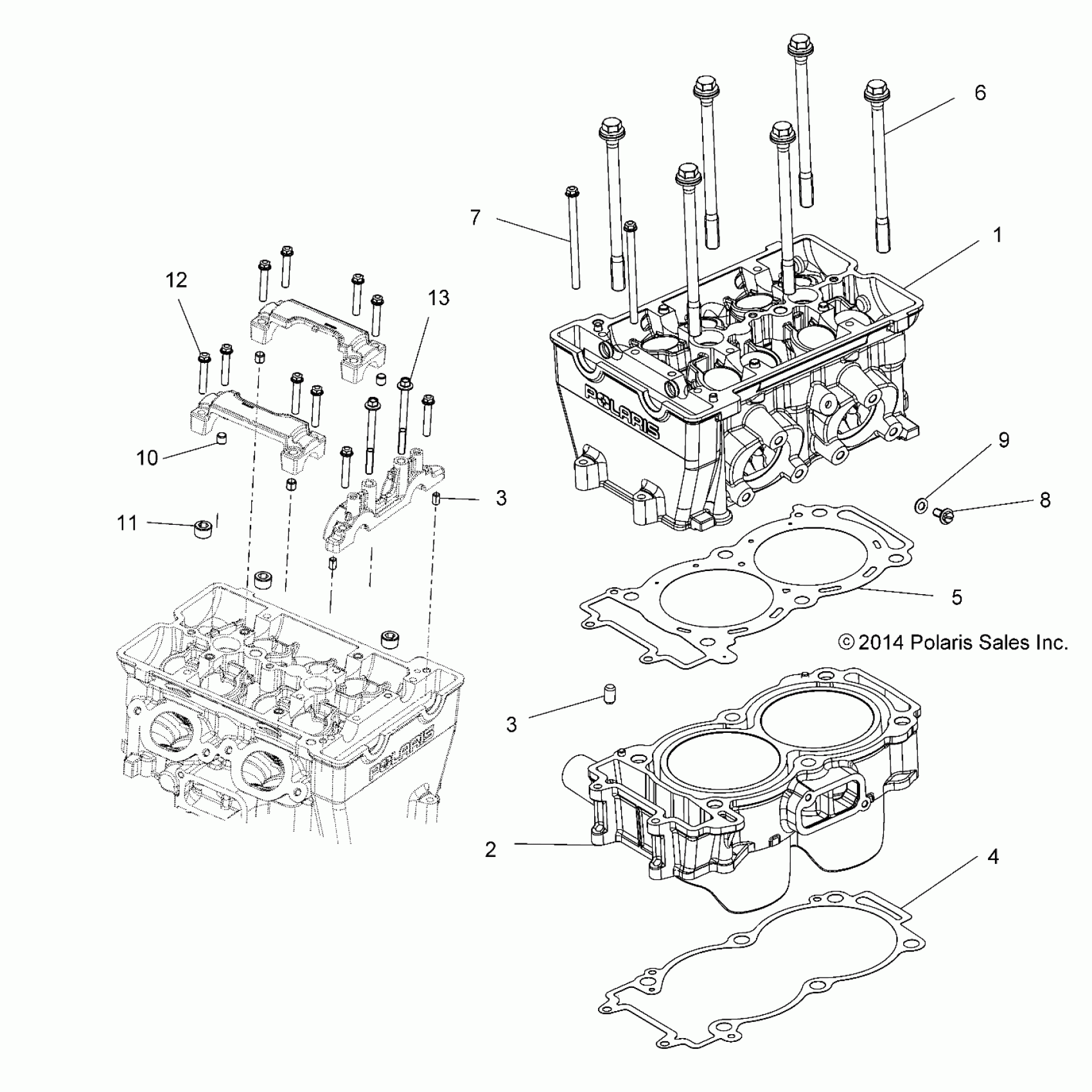

Polaris RZR 900 50/55 INCH ALL OPTIONS (R18) - Z16VAA87/E87/X87 ENGINE, CYLINDER and HEAD - Z16VA87 ALL OPTIONS (49RGRCYLINDER15RZR900) Diagram

#

Description
Price

1

ASM., CYLINDER HEAD [INCL. HEAD, SEATS, GUIDES, CARRIERS, 10-13, QTY. 2 OF 3]

3022441

$1,111.49

2

ASM., CYLINDER [INCL. CYLINDER, DOWEL PINS]

3022579

$593.74

3

PIN-DOWEL,M6X10

5132835

$2.38

3

PIN-DOWEL,M6X10

5132835

$2.38

4

GASKET, BASE

5253037

$32.37

5

GASKET, CYLINDER HEAD

5813737

$72.60

6

BOLT, HEAD

7519123

$23.81

7

SCREW

7519153

$5.56

8

SCREW, BLEED

7517679

$13.49

9

WASHER, FLAT

7555998

$1.19

10

DWL-HOL,M8X8

7661977

$8.08

11

PLUG

7052413

$4.03

12

SCREW

7519996

$9.51

13

SCREW

7519197

$0.79
