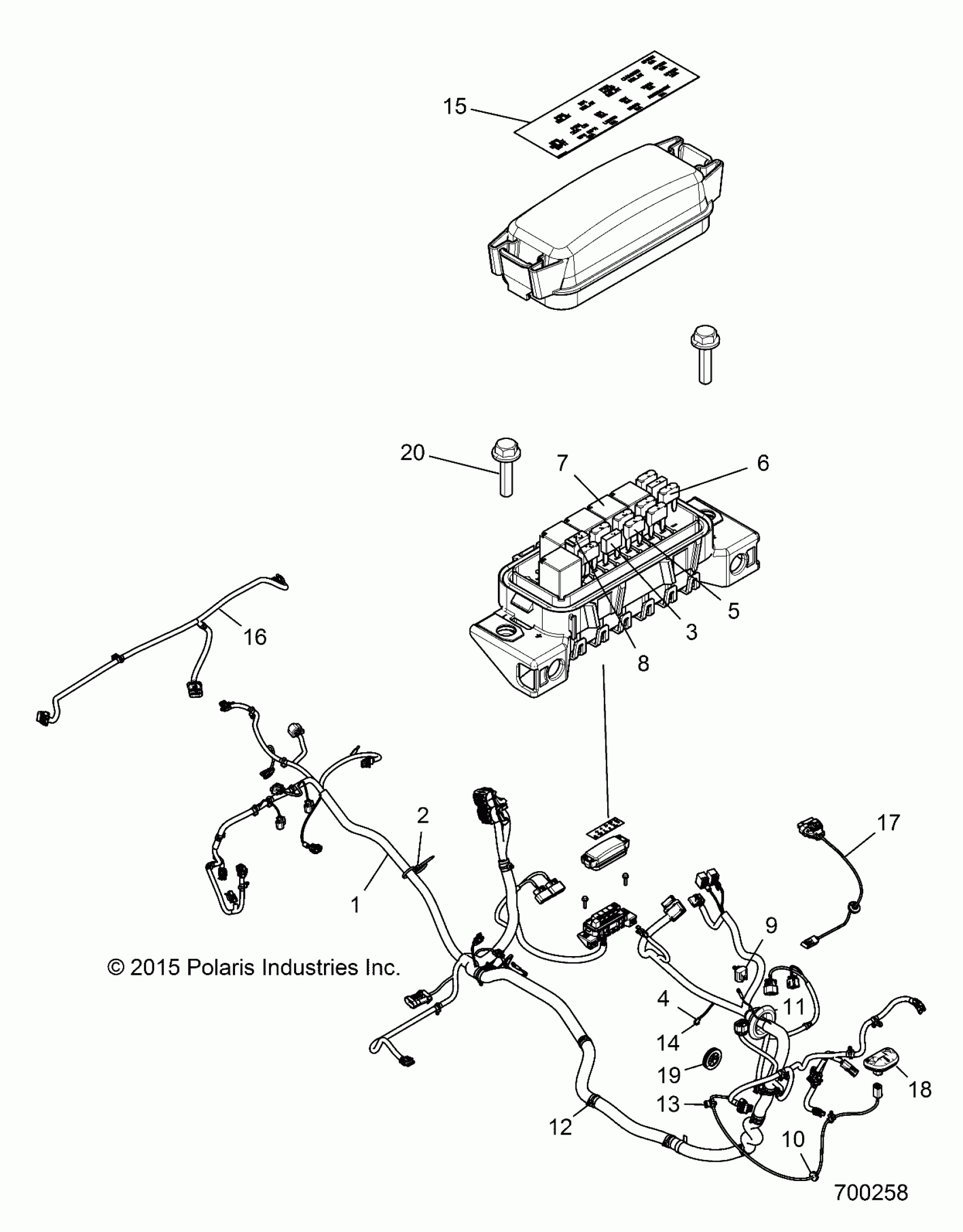

Polaris RZR 900 50/55 INCH ALL OPTIONS (R18) - Z16VAA87/E87/X87 ELECTRICAL, WIRE HARNESS GPS - Z16VAX87AL (700258) Diagram

#

Description
Price

1

HARNESS-CHASSIS,RZR,900,XC [INCL 2-15]

2413111

$972.39

2

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

3

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

4

LED-PANEL MNT,12V,BLUE

2413217

$51.99

5

FUSE-IGNITION,10 AMP

2434016

$4.79

6

FUSE-PARK,20 AMP

2434017

Unavailable

7

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

8

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

9

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

10

GROMMET-SPEAKER,VOLUME

5413027

$2.39

11

GROMMET-65MM,BLK

5813954

$7.19

12

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

13

CLIP-EDGE,HARNESS

7081890

$10.39

14

CLIP-ROUTING,DIN BOX

7082020

$5.59

15

LABEL-FUSE BOX

7179870

Unavailable

16

HARNESS-BOX,RZR

2412287

$51.99

17

HARNESS, USB, MFD

2412818

$47.99

18

GPS, ANTENNA, RECEIVER, CAN

4014811

$387.19

19

GROMMET

5414440

$7.19

20

BOLT, FLANGE, BLACK

7518576

$3.19
