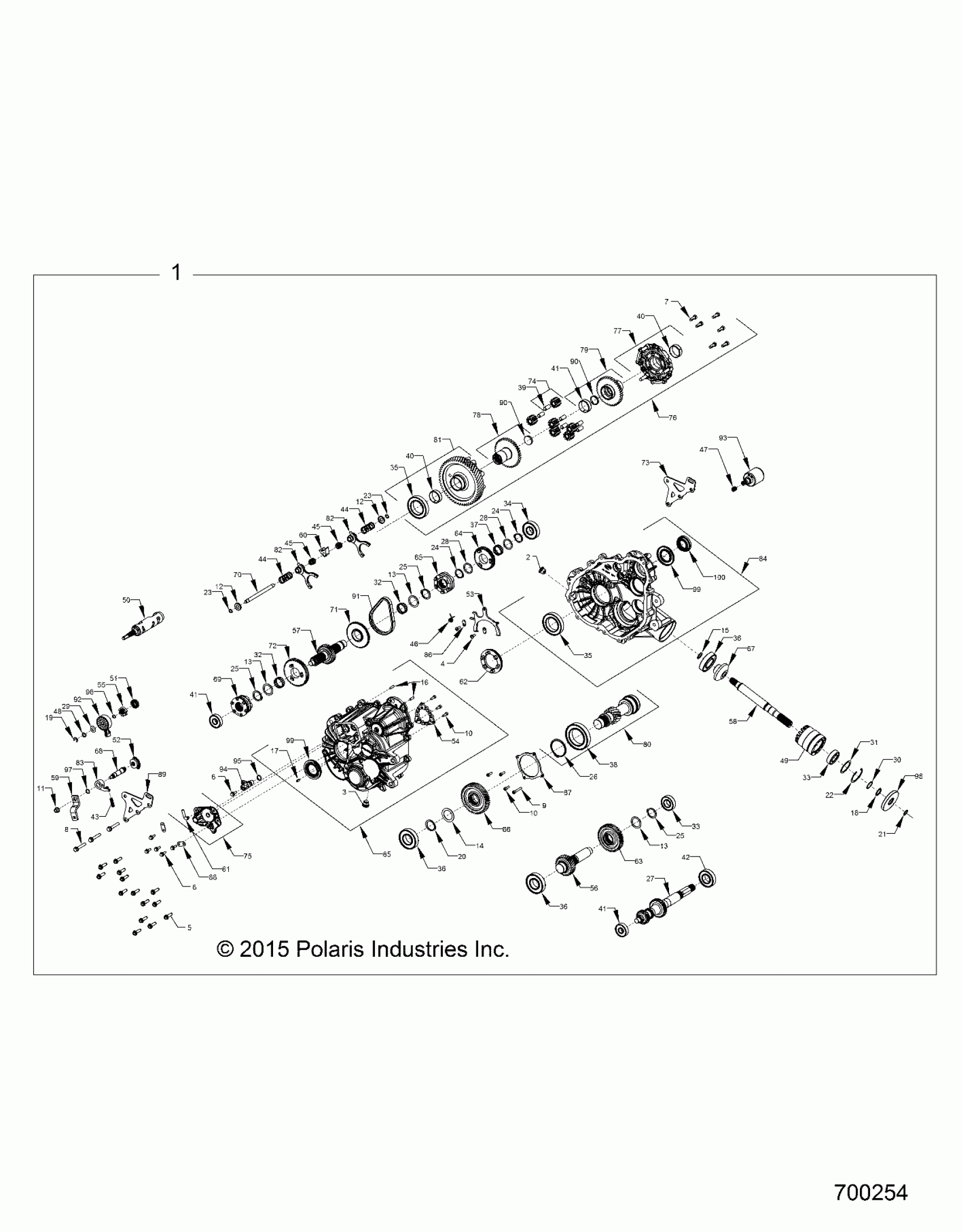

Polaris RZR 900 50/55 INCH ALL OPTIONS (R18) - Z16VAA87/E87/X87 DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z16VAE87A9/AL/AR/AU/AW (700254) Diagram

#

Description
Price

1

ASM-GEARCASE,COMPLETE,DIFF [INCL ALL]

1333462

$3,799.99

2

PLUG, M18 X 1.5

3234755

$27.78

3

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

4

SCREW, TORX PAN HD M6 X 1 X 16

3234309

$7.14

5

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

6

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.14

6

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.14

7

SCREW, CAP HH M8 X 1.25 X 25

3235096

$9.70

8

SCREW, HEX FLANGE M8 X 50

3235207

$10.32

9

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40

3235208

$11.11

10

SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18

3235332

$3.97

11

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

3235210

$7.94

12

WASHER-CUP

3234091

$9.52

13

WASHER, 32.3 X 42 X 1.5

3235211

$10.32

13

WASHER, 32.3 X 42 X 1.5

3235211

$10.32

14

WASHER, 35.6 X 57 X 1.5

3235212

$13.49

15

WASHER, 17.3 X 25 X 1.5

3235213

$15.87

16

PIN, DOWEL 6 X 20

3234330

$7.14

17

PIN, SPRING, SLOTTED 6 X 12

7043746

$8.08

18

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

19

RING, SNAP

3233834

$10.32

20

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.46

21

RING, RETAINING, EXTERNAL SHR-66

3234318

$3.17

22

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.52

23

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.32

24

RING, RETAINING

3234205

$11.11

25

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

25

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.52

26

RING, RETAINING, VSH-237

3235216

$10.32

27

SHAFT, INPUT 42T/20T/29T

3235763

$182.13

28

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.52

29

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

30

SHIM, 1.180 OD X .995 ID

3234272

$36.41

31

SHIM, 2.040 OD X 1.63 ID

3234273

$13.75

32

BEARING, NEEDLE

3233014

$43.65

33

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

33

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

34

BEARING

3233020

$47.62

35

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

35

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.59

36

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

36

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

36

BEARING,BALL 6207 C3 35X72X17

3234065

$47.62

37

BEARING, NEEDLE, CAGE ASSY

3233384

$31.75

38

BEARING, BALL, 6012 C3 60 X 95 X 18

3235218

$59.52

39

BEARING, PLAIN 10 X 12 X 25

3234239

$15.87

40

BEARING, PLAIN 40 X 44 X 15

3234241

$15.87

41

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.87

41

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.87

41

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.87

42

BEARING BALL 6206 RSH2 30X62X16

3235496

$37.99

43

SPRING, COMPRESSION .360 X 1.125

3233830

$10.32

44

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$24.27

45

SPRING, COMPRESSION, .46 I.D. X .73

3234089

$28.32

46

SPRING, TORSION, RETURN

3234276

$8.89

47

SPRING, COMPRESSION 0.54 X 0.44 X 0.05 WIRE

3234277

$13.75

48

SPRING, WASHER

3235327

$9.52

49

TUBE, SNORKEL MACH

3234278

$101.17

50

DRUM-SHIFT,MACH.(255289)

3235463

$279.27

51

GEAR, SECTOR 16T

3233839

$36.41

52

GEAR-SECTOR,31T

3233832

$36.41

53

FORK, PIVOT SHIFT REAR DIFF

3235455

$93.08

54

PLATE, PARK 12-FACE

3235456

$40.46

55

DETENT STAR

3235603

$40.46

56

SHAFT, IDLER 29T

3235223

$128.24

57

SHAFT, REVERSE 29T

3235224

$145.70

58

SHAFT, FRONT OUTPUT

3235394

$133.56

59

BELLCRANK, 92 DEG

3235581

$44.51

60

COLLAR-SHIFT

3234073

$31.75

61

TUBE, VENT, 90 -1/4" HOSE

3234230

$10.51

62

DOG, ENGAGEMENT

3234928

$87.13

63

GEAR-44T,STAGE2

3235229

$109.24

64

GEAR, 53T

3235234

$99.74

65

DOG, ENGAGEMENT 6-FACE

3235233

$129.51

66

GEAR, 46T STAGE 3

3235236

$128.24

67

GEAR, 13T SNORKEL

3235237

$156.74

68

SHAFT-SHIFT(352973)

3235238

$42.74

69

SHIFT DOG, PARK

3235457

$145.70

70

RAIL, SHIFT SHAFT

3235542

$28.32

71

SPROCKET, 48T 6-FACE

3235755

$80.94

72

GEAR, LOW 64T

3235774

$94.99

73

WELDMENT, REAR MOUNT BRACKET

3235399

$48.56

74

GEAR SUBASSEMBLY [INCLUDES BUSHING]

3234469

$72.84

75

SUBASSEMBLY, SECTOR COVER [INCLUDES ALL HARDWARE]

3235713

$135.54

76

SUBASSEMBLY, AVALANCHE DIFFERENTIAL

3235373

$489.24

77

SUBASSEMBLY, DIFF COVER [INCLUDES PLUG,BUSHING]

3235376

$169.43

78

SUBASSEMBLY, 39T SIDE GEAR [INCLUDES PLUG]

3235374

$223.24

79

SUBASSY, 39T SIDE GEAR [INCL. PLUG, BUSHING]

3235375

$223.24

80

SUBASM.,SHAFT [INCL. BEARING, RET. RING]

3235336

$446.49

81

SUBASSY, GEAR 53T [INCL. PINS, BUSHING, BEARING]

3235378

$484.11

82

SUBASSY, SHIFT FORK

3235454

$89.03

82

SUBASSY, SHIFT FORK

3235454

$89.03

83

SUBASSEMBLY, PAWL, DETENT, ROLLER

3235452

$36.41

84

SUBASSEMBLY LH CASE [INCLUDES ALL HARDWARE]

3235757

$517.74

85

SUBASSEMBLY RH COVER [INCLUDES ALL HARDWARE]

3235756

$549.99

86

RETAINER-FORK

3234934

$12.34

87

COVER-BEARING,CNTR DR. [CENTER DRIVE]

3235241

$48.56

88

BRACKET, WIRE HARNESS

3235350

$8.89

89

BRACKET, REAR MOUNT

3235398

$68.79

90

PLUG,EXPANSION,1 1/4

3234249

$13.49

91

CHAIN,SIL 101,.25P X .40W X58L

3234737

$169.98

92

SWITCH, ROTARY , 2 PIN RESISTIVE

7661999

$117.37

93

SOLENOID

3235478

$295.46

94

SENSOR-SPEED,TRANS

4013908

$109.27

95

O-RING

3234302

$7.27

96

O-RING, -012 VITON

3233836

$6.87

97

O-RING, -014 VITON

3233828

$6.87

98

SEAL, TRIPLE LIP, 25 X 80 X 10

3234113

$36.41

99

SEAL, TRIPLE LIP, VITON, 40 X 70 X 7

3235052

$32.37

99

SEAL, TRIPLE LIP, VITON, 40 X 70 X 7

3235052

$32.37

100

SEAL, DUAL LIP, 30 X 47 VITON

3235495

$47.49
