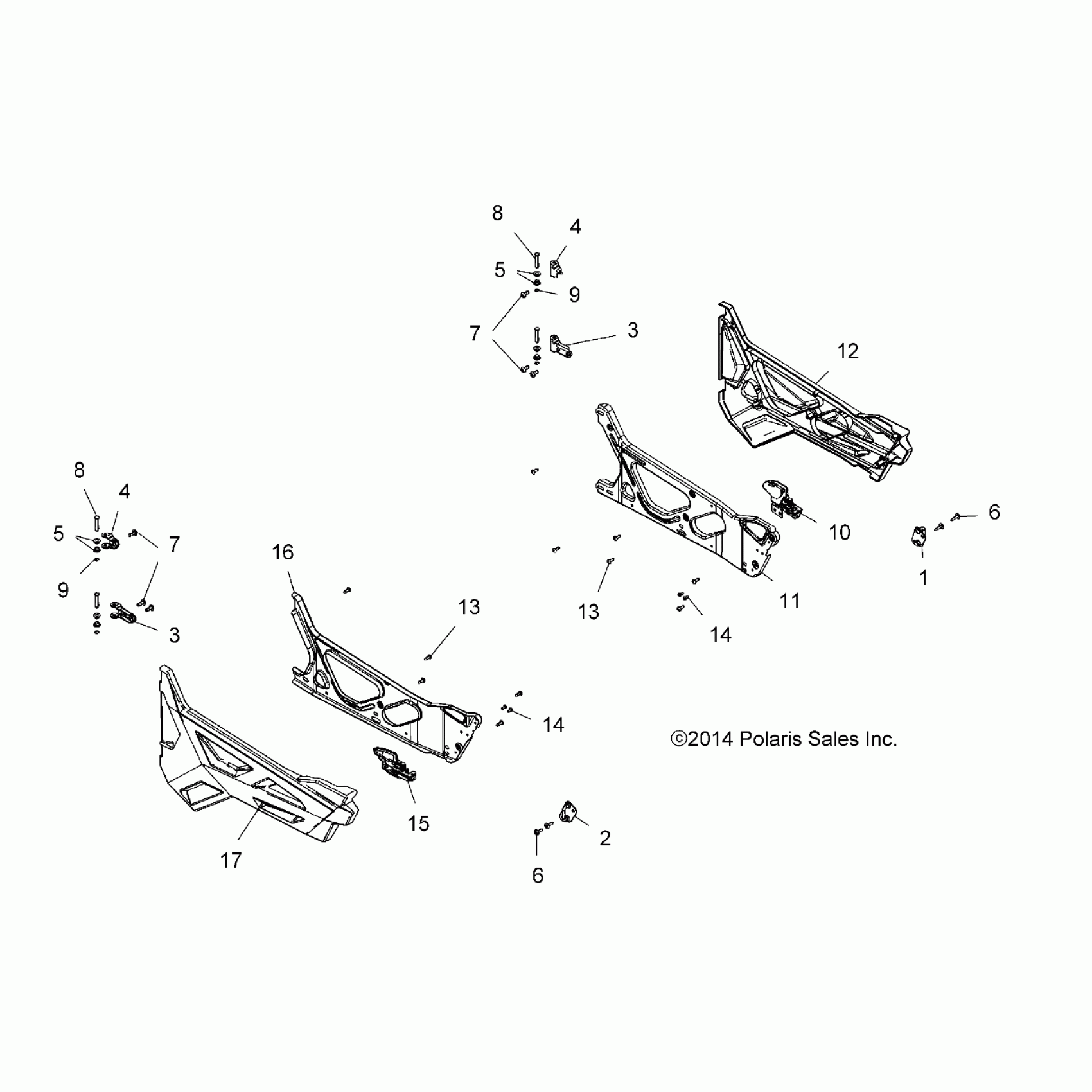

Polaris RZR 900 50/55 INCH ALL OPTIONS (R18) - Z16VAA87/E87/X87 BODY, DOORS - Z16VAA87A2/E87A9/AR/AU/AW (49RGRDOOR15Z90050) Diagram

#

Description
Price

1

STRIKER, LH

1021237

$39.68

2

STRIKER, RH

1021238

$39.68

3

BRACKET, DOOR HINGE

5258008

$28.32

3

BRACKET, DOOR HINGE

5258008

$28.32

3

BRACKET, DOOR HINGE

5258008

$28.32

4

BRACKET, DOOR HINGE, UPPER

5259048

$11.32

4

BRACKET, DOOR HINGE, UPPER

5259048

$11.32

5

BUSHING, DOOR PIVOT

5450592

$2.38

5

BUSHING, DOOR PIVOT

5450592

$2.38

6

SCREW

7519112

$3.17

6

SCREW

7519112

$3.17

7

SCREW

7519997

$3.97

7

SCREW

7519997

$3.97

8

PIN, DOOR HINGE

7662138

$4.76

8

PIN, DOOR HINGE

7662138

$4.76

9

E-CLIP,M6, DIN 6799

7710466

$3.17

9

E-CLIP,M6, DIN 6799

7710466

$3.17

10

ASM., LATCH, DOOR, LH

2635305

$90.24

11

DOOR, FRAME, 50, LH, BLACK

5259046-458

$135.54

12

DOOR, SKIN, LH

5451119

Unavailable

13

SCREW

7519045

$3.17

13

SCREW

7519045

$3.17

14

SCREW

7519063

$3.99

14

SCREW

7519063

$3.99

15

ASM., LATCH, DOOR, RH

2635306

$90.24

16

DOOR, FRAME 50, RH, BLACK

5259047-458

$135.54

17

DOOR, SKIN, RH

5451120

$151.99
