Description

Price

1

PLATE: BACK-UP [0.750 OD X 0.503 ID X 0.100 TH, � 0.620 SHAFT]

1500516

$8.08

1

PLATE: TOP-OUT [1.570 OD X 0.503 ID X 0.128 TH, � 0.620 SHAFT]

1500838

Unavailable

1

SHOCK, REAR LH, 2 RESIVOIRS, PIGGYBACK [INCL ALL]

7044487

$999.99

1

SHOCK, REAR RH, 2 RESIVOIRS, PIGGYBACK [INCL ALL]

7044488

$999.99

2

BUSHING, EYELET .875 SHAFT

1501035

$34.90

3

BUSHING, EYELET

1501010

$19.84

4

FASTENER, STANDARD: NUT, LOCK [1/2-20 X 0.313 TLG]

1500842

$23.81

5

SCREW, #4, SS PAN

1501011

$13.49

6

DECAL, PERF SERIES

1501012

$15.37

7

DECAL, RESERVOIR

1501013

$11.32

8

O-RING,.103W-1.737ID

1500623

$6.46

9

SEALS:O-RING [(-135) .103 C.S. X 1.925 ID] STANDARD, N-70, STATIC

1500510

$6.46

10

SEAL, WEATHER

1501014

$8.89

10

SEAL, WEATHER

1501014

$8.89

11

RETAINING RING: WIRE [0.062 CS X 1.850 ID] 17-7 SS

1500236

$9.52

12

RING-RETAINING, WIRE 2.050

1501015

$9.52

13

CAP, BEARING

1501100

$49.99

14

CAP, BODY, PB [USED W/7044488]

1501017

$244.99

14

CAP, BODY, PB [USED W/7044487]

1501016

$239.98

15

BODY, 1.834X9.4TLG

1501040

$111.33

16

KNOB, LOW SPEED

1501019

$11.32

17

EYELET

1501037

Unavailable

18

EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG

1501087

$23.81

19

EYELET PARTS: (T) SLEEVE [0.397 ID X 0.875 OD X 1.400 TLG] SNAP FIT SPACER, CHRO

1501090

$23.81

20

EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG

1501088

$6.35

20

EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG

1501088

$6.35

21

RESERVOIR, 5" THD.

1501023

$64.99

22

SHAFT, .62X9.8

1500948

$17.99

23

SPRING HARDWARE: PRELOAD RING BACK UP [3.250 OD X 0.280 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED

1500872

$48.56

24

SPRING HARDWARE: PRELOAD RING [3.250 OD X 0.515 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED

1500873

$52.60

25

SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE, COMPLETE

1500161

$44.99

26

ASM., PISTON, FLOAT

1501026

$54.99

27

BUMPER: B/O [� 0.620 SHAFT, .700 TLG] MCU, BLACK

1500866

$32.37

28

ASM., BEARING

1501185

$69.99

29

ASM., END CAP, RESERVOIR

1501027

$114.99

30

ASM., DAMP. ADJ. LSC

1501034

$129.99

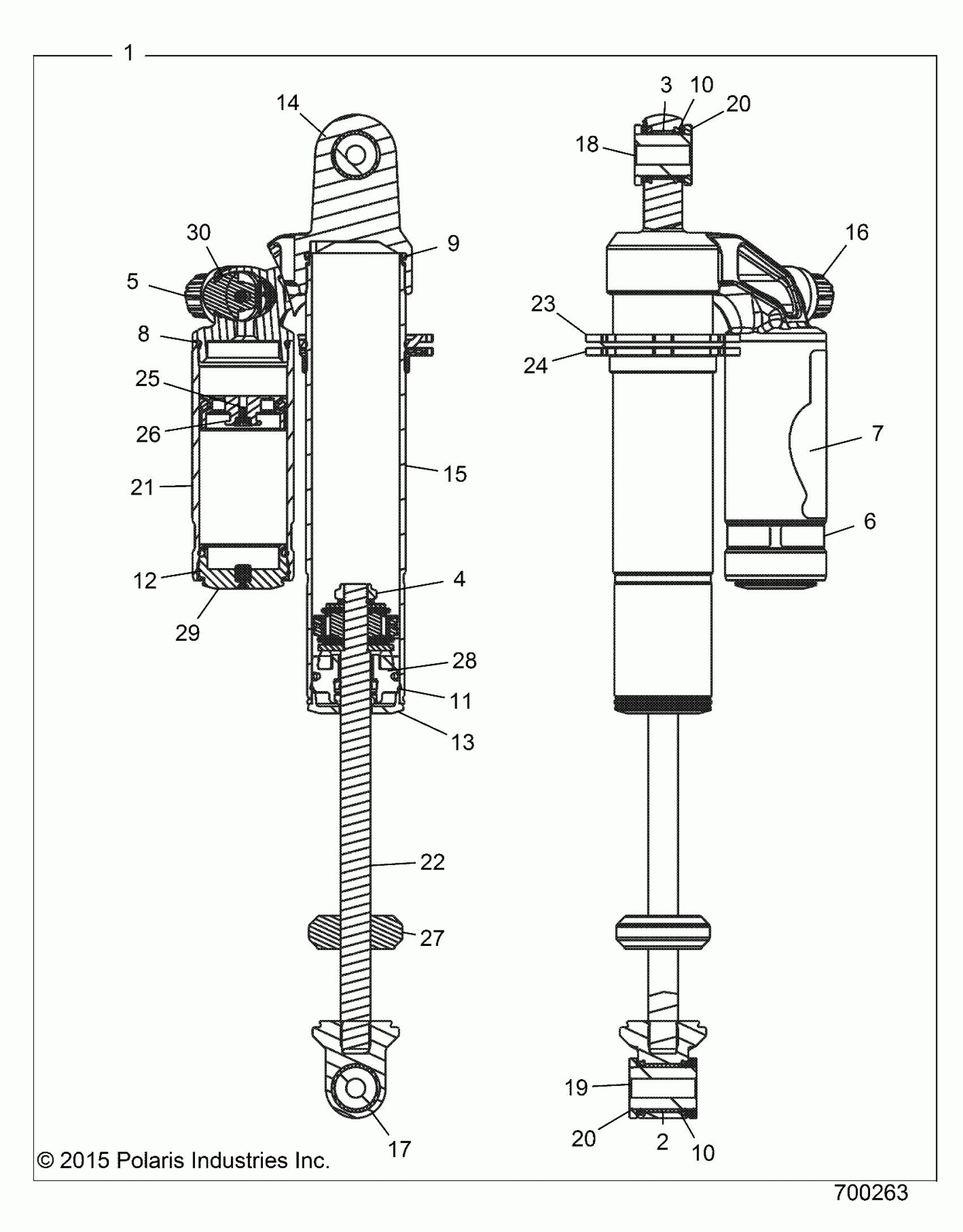

Polaris RZR 900 50/55 INCH ALL OPTIONS (R08) - Z17VAA87/E87/X87 SUSPENSION, REAR SHOCK INTERNALS - Z17VAX87AK (700263) Diagram

PLATE: BACK-UP [0.750 OD X 0.503 ID X 0.100 TH, � 0.620 SHAFT]

PLATE: TOP-OUT [1.570 OD X 0.503 ID X 0.128 TH, � 0.620 SHAFT]

SHOCK, REAR LH, 2 RESIVOIRS, PIGGYBACK [INCL ALL]

SHOCK, REAR RH, 2 RESIVOIRS, PIGGYBACK [INCL ALL]

BUSHING, EYELET .875 SHAFT

BUSHING, EYELET

FASTENER, STANDARD: NUT, LOCK [1/2-20 X 0.313 TLG]

SCREW, #4, SS PAN

DECAL, PERF SERIES

DECAL, RESERVOIR

O-RING,.103W-1.737ID

SEALS:O-RING [(-135) .103 C.S. X 1.925 ID] STANDARD, N-70, STATIC

SEAL, WEATHER

SEAL, WEATHER

RETAINING RING: WIRE [0.062 CS X 1.850 ID] 17-7 SS

RING-RETAINING, WIRE 2.050

CAP, BEARING

CAP, BODY, PB [USED W/7044488]

CAP, BODY, PB [USED W/7044487]

BODY, 1.834X9.4TLG

KNOB, LOW SPEED

EYELET

EYELET PART: SLEEVE, .397 ID X .875 OD X 1.181 TLG

EYELET PARTS: (T) SLEEVE [0.397 ID X 0.875 OD X 1.400 TLG] SNAP FIT SPACER, CHRO

EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG

EYELET PART: SPACER, .876 ID X 1.25 OD X .150 TLG

RESERVOIR, 5" THD.

SHAFT, .62X9.8

SPRING HARDWARE: PRELOAD RING BACK UP [3.250 OD X 0.280 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED

SPRING HARDWARE: PRELOAD RING [3.250 OD X 0.515 TLG, 2.080-14 STUB ACME ID] LOW CARBON STEEL, ZINC PLATED

SCREW ASSEMBLY: [FLAT HEAD SOCKET CAP #10-24 X 0.375 TLG] STEEL BLACK OXIDE, COMPLETE

ASM., PISTON, FLOAT

BUMPER: B/O [� 0.620 SHAFT, .700 TLG] MCU, BLACK

ASM., BEARING

ASM., END CAP, RESERVOIR

ASM., DAMP. ADJ. LSC
