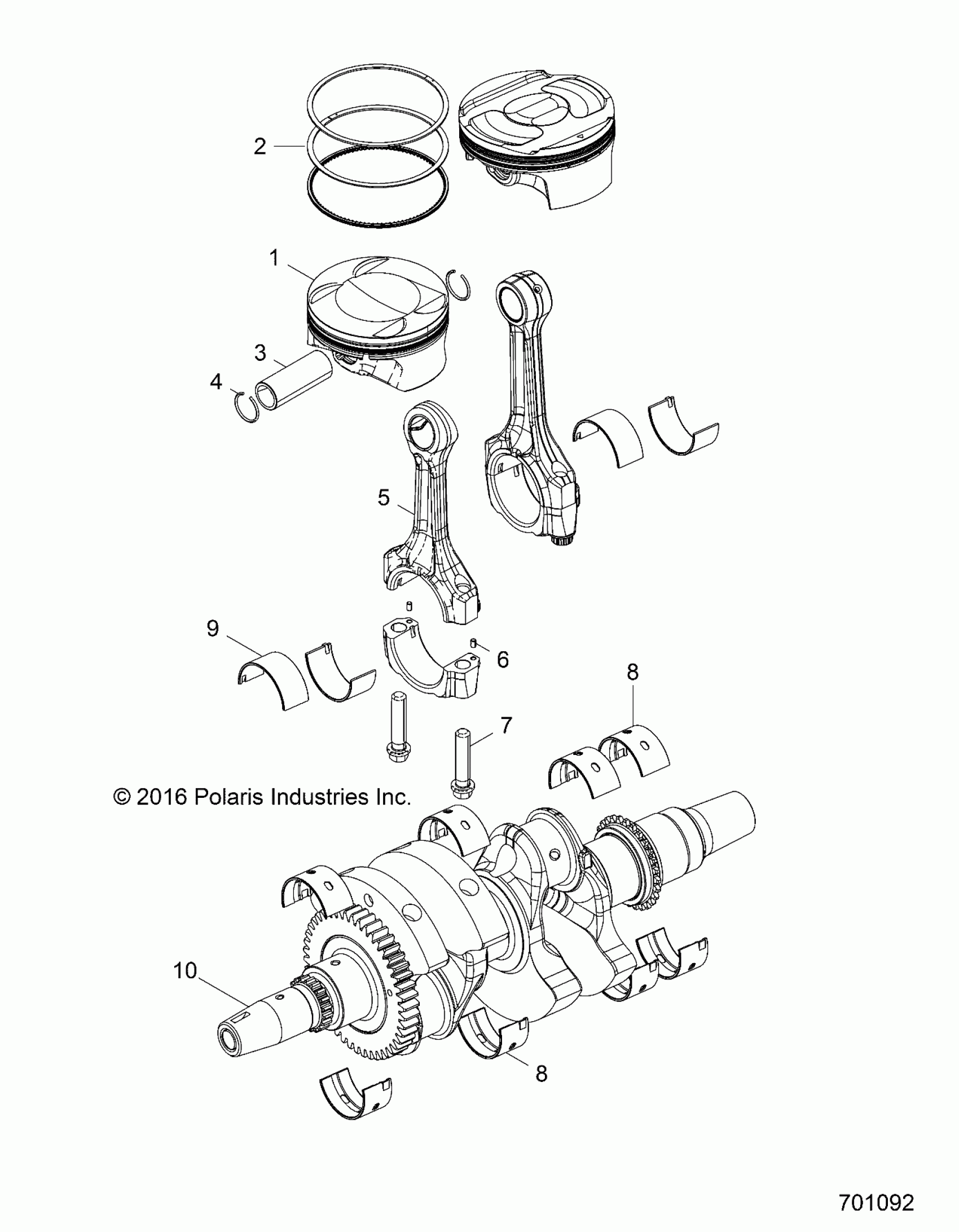

Polaris RZR 900 50/55 INCH ALL OPTIONS (R08) - Z17VAA87/E87/X87 ENGINE, CRANKSHAFT and PISTON - Z17VA/E/X87 ALL OPTIONS (701092) Diagram

KIT-PISTON 3022567 [INCL. 1 PISTON, 1 PIN, 1 RING SET, 2 CLIPS]

2205244

$189.99

KIT-PISTON RINGS [INCL. 1 TOP, 1 MIDDLE AND 1 BOTTOM RING]

2205245

Unavailable

PIN-PISTON

3022358

$23.99

RING, RETAINING

3022413

$3.99

ASM., CONNECTING ROD, FORGED [INCL. 6,7]

3022893

$203.99

PIN-DOWEL-SOL-M3X5 SUJ2

7661972

$10.39

SCREW, CONNECTING ROD

7520349

$11.19

BEARING, MAIN, WHITE

3514662-001

$9.59

BEARING-MAIN,G-90,41MM,BLU

3514662-002

$9.59

BEARING-MAIN,G-90,41MM,GRN

3514662-003

$9.59

BEARING-MAIN,G-90,41MM,YLW

3514662-004

$9.59

BEARING-MAIN,G-90,41MM,RED

3514662-005

$9.59

BEARING, MAIN, WHITE

3514662-001

$9.59

BEARING-MAIN,G-90,41MM,BLU

3514662-002

$9.59

BEARING-MAIN,G-90,41MM,GRN

3514662-003

$9.59

BEARING-MAIN,G-90,41MM,YLW

3514662-004

$9.59

BEARING-MAIN,G-90,41MM,RED

3514662-005

$9.59

BEARING, CONNECTING ROD, WHITE

3514663-001

$8.79

BEARING, CONNECTING ROD, BLUE

3514663-002

$8.79

BEARING, CONNECTING ROD, GREEN

3514663-003

$8.79

BEARING, CONNECTING ROD, YELLOW

3514663-004

$8.79

ASM., CRANKSHAFT

3022793

Unavailable
