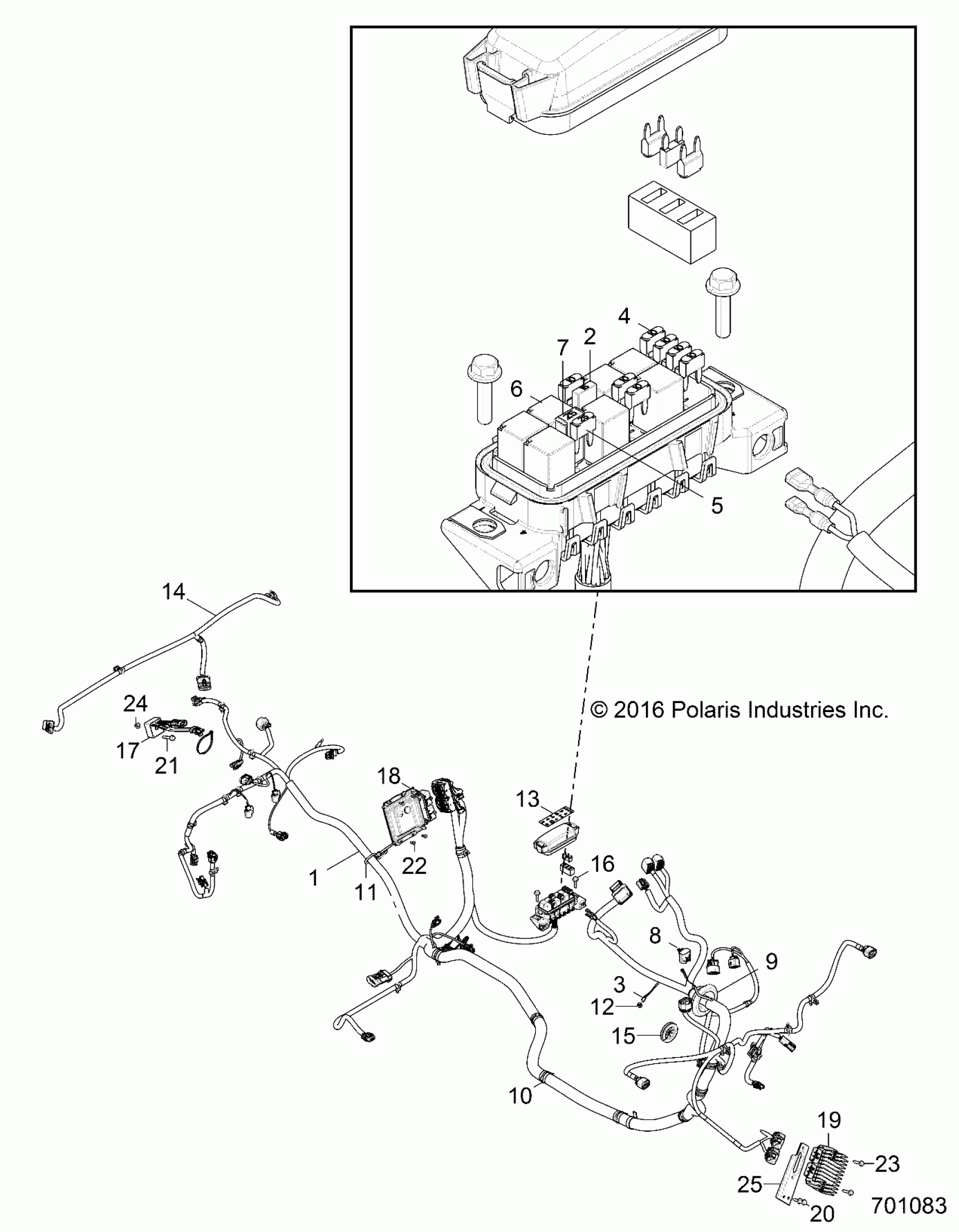

Polaris RZR 900 50/55 INCH ALL OPTIONS (R08) - Z17VAA87/E87/X87 ELECTRICAL, WIRE HARNESS - Z17VAA87AB/E87AK (701083) Diagram

#

Description
Price

1

HARNESS-CHASSIS,RZR,TURF [INCL 2-13]

2413490

$1,082.39

2

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

3

LED-PANEL MNT,12V,BLUE

2413217

$51.99

4

FUSE-IGNITION,10 AMP

2434016

$4.79

5

FUSE-25A,MINI BLADE

4011653

$7.99

6

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

7

BRAEAKER, CIRCUIT, 25 AMP

4015771

$63.99

8

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

9

GROMMET-65MM,BLK

5813954

$7.19

10

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

11

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

12

CLIP-ROUTING,DIN BOX

7082020

$5.59

13

LABEL-FUSE BOX

7184204

Unavailable

14

HARNESS-BOX,RZR

2412287

$51.99

15

GROMMET

5414440

$7.19

16

BOLT-M6X1.0X25,HXHD,FLG,BLK

7518576

$3.19

17

RELAY

4012829

$71.99

18

ECM-NO START,ME17

4014125

$694.99

19

REGULATOR-3PH,50A,SERIES,HISPD

4014856

Unavailable

20

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

21

BOLT

7518612

$4.79

22

SCR-#10X1/2-HI/LO-PN-T25,TRX-M

7519091

$3.19

23

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

24

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

25

BRKT-MOUNT,REGULATOR,BLK

5262740-329

$31.99
