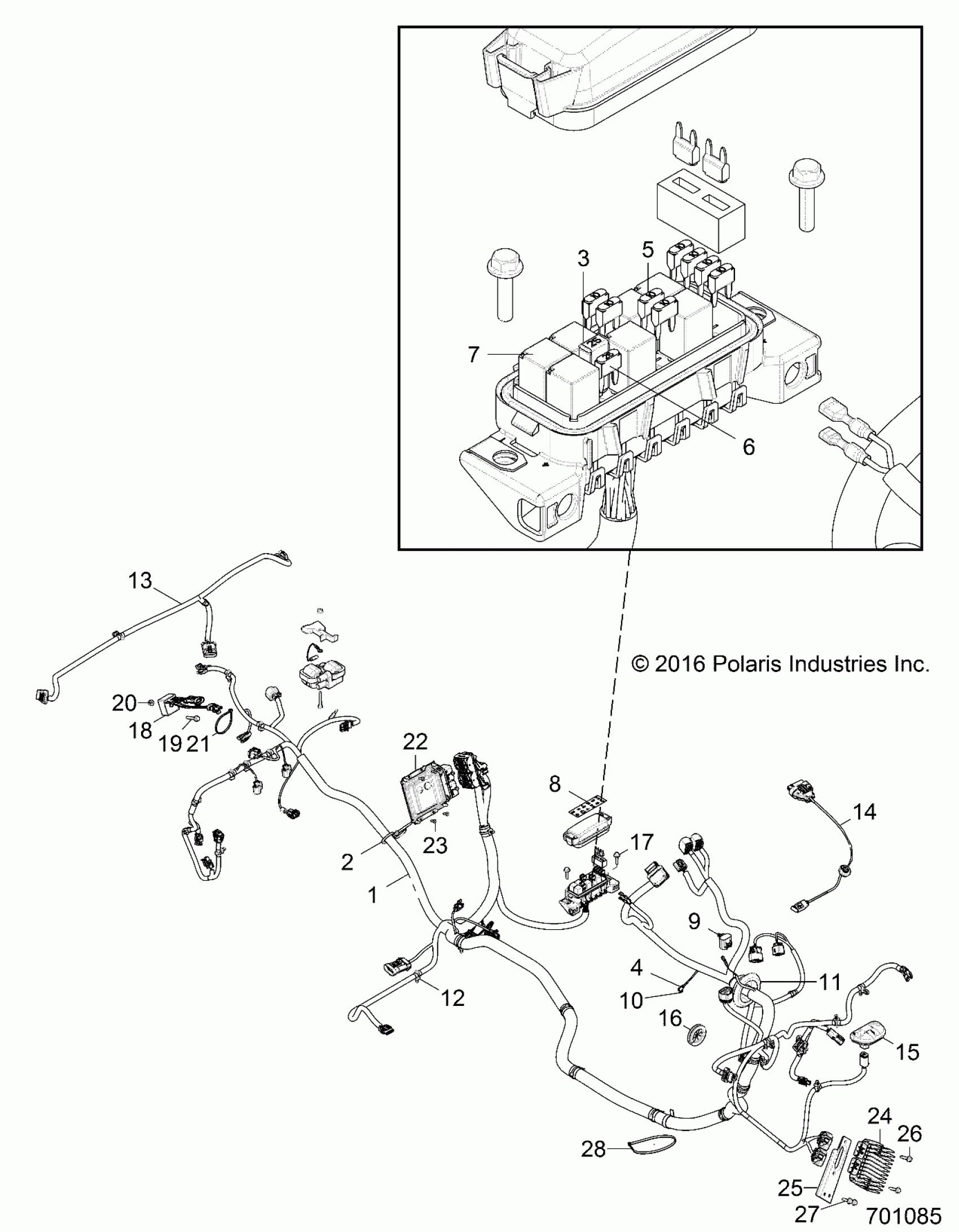

Polaris RZR 900 50/55 INCH ALL OPTIONS (R08) - Z17VAA87/E87/X87 ELECTRICAL, WIRE HARNESS GPS - Z17VAX87AK (701085) Diagram

HARNESS-CHASSIS,RZR,900,XC [INCL 2-12]

2413492

$1,038.39

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79

BREAKER, CIRCUIT 25 AMP

4015771

$63.99

LED-PANEL MNT,12V,BLUE

2413217

$51.99

FUSE-IGNITION,10 AMP

2434016

$4.79

FUSE-25A,MINI BLADE

4011653

$7.99

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

LABEL-FUSE BOX

7184131

Unavailable

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

CLIP-ROUTING,DIN BOX

7082020

$5.59

GROMMET-65MM,BLK

5813954

$7.19

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

HARNESS-BOX,RZR

2412287

$51.99

HARNESS, USB, MFD

2412818

$47.99

GPS, ANTENNA, RECEIVER, CAN

4014811

$387.19

GROMMET

5414440

$7.19

BOLT, FLANGE, BLACK

7518576

$3.19

RELAY, SOLID STATE,9A,LONG LD

4012829

$71.99

SCR-HXFL-M6X1.0X35 8.8 ZOD

7518612

$4.79

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

ECM-NO START,ME17

4014125

$694.99

SCR-#10X1/2-HI/LO-PN-T25,TRX-M

7519091

$3.19

REGULATOR-3PH,50A,SERIES,HISPD

4014856

Unavailable

BRKT-MOUNT,REGULATOR,BLK

5262740-329

$31.99

SCR-TFHFL-M6X1.0X25,ZOD

7519342

$1.86

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39
