Description

Price

1

ASM-GEARCASE,COMPLETE,DIFF [INCL ALL]

1333697

$3,172.39

2

PLUG, M18 X 1.5

3234755

$27.99

3

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

4

SCREW, TORX PAN HD M6 X 1 X 16

3234309

$7.19

5

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

6

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.19

6

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

3235206

$7.19

7

SCREW, CAP HH M8 X 1.25 X 25

3235096

Unavailable

8

SCREW, HEX FLANGE M8 X 50

3235207

$10.39

9

SCREW, SOCKET HEAD, CAP, M6 X 1 X 40

3235208

$11.19

10

SCREW, SOCKET HEAD, CAP, M6 X 1 X 18

3235332

$3.99

10

SCREW, SOCKET HEAD, CAP, M6 X 1 X 18

3235332

$3.99

11

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

3235210

$7.99

12

WASHER-CUP

3234091

$9.59

12

WASHER-CUP

3234091

$9.59

13

WASHER, 32.3 X 42 X 1.5

3235211

$10.39

13

WASHER, 32.3 X 42 X 1.5

3235211

$10.39

13

WASHER, 32.3 X 42 X 1.5

3235211

$10.39

14

WASHER, 35.6 X 50 X 1.5

3235212

$13.59

15

WASHER, 17.3 X 25 X 1.5

3235213

$15.99

16

PIN, DOWEL 6 X 20

3234330

$7.19

17

PIN, SPRING, SLOTTED 6 X 12

7043746

$7.19

18

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

19

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

20

RING, SNAP

3233834

$10.39

21

RING, RETAINING, SHAFT, DIA. 1.375

3233364

$6.39

22

RING, RETAINING, EXTERNAL SHR-66

3234318

$3.19

23

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.59

24

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

24

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

25

RING, RETAINING

3234205

$11.19

25

RING, RETAINING

3234205

$11.19

26

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

26

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

26

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

27

RING, RETAINING, VSH-237

3235216

$10.39

28

SHAFT, INPUT 42T/20T/29T

3235763

$179.99

29

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

29

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

30

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

31

SHIM, 1.18 OD X 0.995 ID

3234272

$31.99

32

SHIM, 2.04 OD X 1.63 ID

3234273

$12.79

33

SPACER, 19.4 X 34 X 2

3235883

$23.99

34

BEARING, NEEDLE

3233014

$43.99

34

BEARING, NEEDLE

3233014

$43.99

35

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

35

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

36

BEARING

3233020

$47.99

37

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

37

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

38

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

38

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

38

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

39

BEARING, NEEDLE, CAGE ASSY

3233384

$31.99

40

BEARING, BALL, 6012 C3 60 X 95 X 18

3235218

$59.99

41

BEARING, PLAIN 10 X 12 X 25

3234239

$15.99

42

BEARING, PLAIN 40 X 44 X 15

3234241

$15.99

42

BEARING, PLAIN 40 X 44 X 15

3234241

$15.99

43

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.99

43

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.99

43

BEARING, BALL 6303, 17 X 47 X 14

3234652

$15.99

44

BEARING BALL 6206 RSH2 30X62X16

3235496

$31.99

45

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

45

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

46

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$23.99

46

SPRING, COMPRESSION, 0.46 I.D. X 0.73

3234089

$23.99

47

SPRING, TORSION, RETURN

3234276

$7.99

48

SPRING, COMPRESSION 0.54 X 0.44 X 0.05 WIRE

3234277

$12.79

49

SPRING, COMPRESSION

3234578

$12.79

50

SPRING, TORSION

3235885

$19.99

51

SPRING, WASHER

3235327

$9.59

52

TUBE, SNORKEL MACH

3234278

$95.99

53

GEAR, SECTOR 16T

3233839

$31.99

54

GEAR-SECTOR,31T

3233832

$31.99

55

FORK, PIVOT SHIFT REAR DIFF

3235455

$87.99

56

PLATE, PARK 12-FACE

3235456

$35.99

57

STAR, DETENT

3235982

$31.99

58

SHAFT, IDLER 29T

3235223

$107.99

59

SHAFT, REVERSE 29T

3235224

$143.99

60

SHAFT, FRONT OUTPUT

3235394

$131.99

61

BELLCRANK, 92 DEG

3235581

$39.99

62

COLLAR-SHIFT

3234073

$31.99

63

TUBE, VENT, 90 -1/4" HOSE

3234230

$9.59

64

DOG, ENGAGEMENT

3234928

$67.99

65

GEAR-44T,STAGE2

3235229

$87.99

66

GEAR, 53T

3235234

$79.99

67

DOG, ENGAGEMENT 6-FACE

3235233

$119.99

68

GEAR, 46T STAGE 3

3235236

$103.99

69

GEAR, 13T SNORKEL

3235237

$123.99

70

SHAFT-SHIFT(352973)

3235238

$37.61

71

SHIFT DOG, PARK

3235457

$135.99

72

RAIL, SHIFT SHAFT

3235542

$27.99

73

SPROCKET, 48T 6-FACE

3235755

$79.99

74

GEAR, LOW 64T

3235774

$75.99

75

PARK CAM

3235983

$151.99

76

DRUM, SHIFT MACH

3235984

$263.99

77

WELDMENT, REAR MOUNT BRACKET

3235399

$47.99

78

GEAR SUBASSEMBLY [INCLUDES BUSHING]

3234469

$67.99

79

SUBASSEMBLY, SECTOR COVER [INCLUDES ALL HARDWARE]

3235713

$107.99

80

SUBASSEMBLY, AVALANCHE DIFFERENTIAL

3235373

$431.19

81

SUBASSEMBLY, DIFF COVER [INCLUDES PLUG, BUSHING]

3235376

$131.99

82

SUBASSEMBLY, 39T SIDE GEAR [INCLUDES PLUG]

3235374

$179.99

83

SUBASSY, 39T SIDE GEAR [INCL. PLUG, BUSHING]

3235375

$179.99

84

SUBASM.,SHAFT [INCL. BEARING, RET. RING]

3235336

$355.99

85

SUBASSY, GEAR 53T [INCL. PINS, BUSHING, BEARING]

3235378

$379.99

86

SUBASSEMBLY, PAWL, DETENT, ROLLER

3235452

$31.99

87

SUBASSEMBLY LH CASE [INCLUDES ALL HARDWARE]

3235757

$405.59

88

SUBASSEMBLY, SHIFT FORK

3235920

$71.99

88

SUBASSEMBLY, SHIFT FORK

3235920

$71.99

89

SUBASSEMBLY RH COVER [INCLUDES ALL HARDWARE]

3235995

$405.59

90

RETAINER-FORK

3234934

$10.39

91

COVER-BEARING,CNTR DR. [CENTER DRIVE]

3235241

$43.99

92

BRACKET, WIRE HARNESS

3235350

$8.79

93

BRACKET, REAR MOUNT

3235398

$67.99

94

CHAIN,SIL 101,.25P X .40W X58L

3234737

$159.99

95

SOLENOID

3235478

$275.99

96

SENSOR-SPEED,TRANS

4013908

Unavailable

97

SWITCH, ROTARY, 2 PIN RESISTIVE

7662299

$111.99

98

PLUG,EXPANSION,1 1/4

3234249

$13.59

98

PLUG,EXPANSION,1 1/4

3234249

$13.59

99

SEAL, TRIPLE LIP, VITON, 40 X 70 X 7

3235052

$31.99

99

SEAL, TRIPLE LIP, VITON, 40 X 70 X 7

3235052

$31.99

100

SEAL, DUAL LIP, 30 X 47 VITON

3235495

$39.99

101

O-RING

3234302

$7.19

102

O-RING, -12 VITON

3233836

$6.87

103

O-RING, -14 VITON

3233828

$6.79

104

SEAL, TRIPLE LIP, 25 X 80 X 10

3234113

$35.99

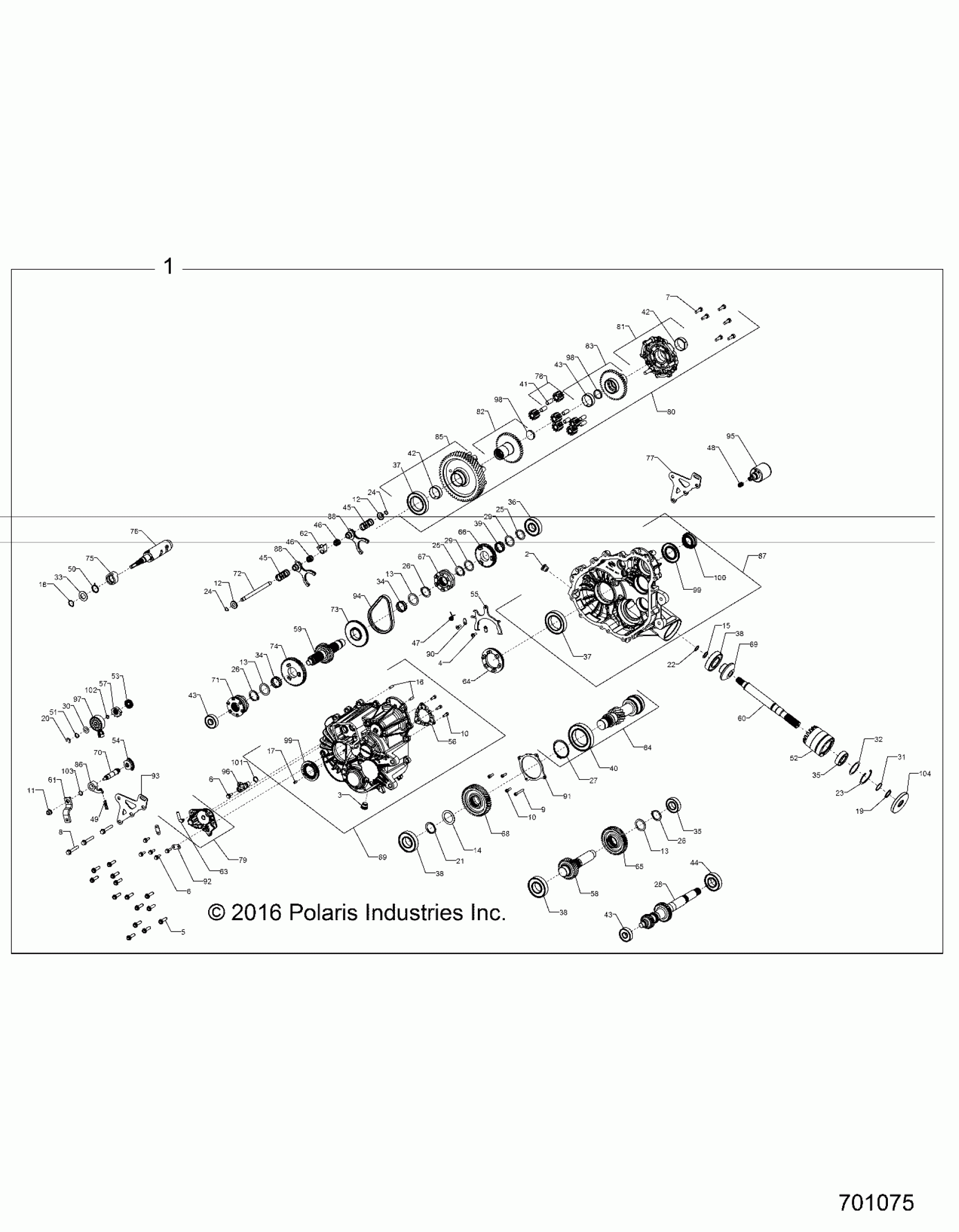

Polaris RZR 900 50/55 INCH ALL OPTIONS (R08) - Z17VAA87/E87/X87 DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z17VAE87AB/E87AK/X87AK (701057) Diagram

ASM-GEARCASE,COMPLETE,DIFF [INCL ALL]

PLUG, M18 X 1.5

PLUG, M18 X 1.5 MAGNETIC

SCREW, TORX PAN HD M6 X 1 X 16

SCREW-HEXFLANGEHEAD,M8X1.25X30

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

SCREW, HEX FLANGE HEAD, M6 X 1 X 20

SCREW, CAP HH M8 X 1.25 X 25

SCREW, HEX FLANGE M8 X 50

SCREW, SOCKET HEAD, CAP, M6 X 1 X 40

SCREW, SOCKET HEAD, CAP, M6 X 1 X 18

SCREW, SOCKET HEAD, CAP, M6 X 1 X 18

NUT, LOCK HEX FLANGE, NYLON M8 X 1.25

WASHER-CUP

WASHER-CUP

WASHER, 32.3 X 42 X 1.5

WASHER, 32.3 X 42 X 1.5

WASHER, 32.3 X 42 X 1.5

WASHER, 35.6 X 50 X 1.5

WASHER, 17.3 X 25 X 1.5

PIN, DOWEL 6 X 20

PIN, SPRING, SLOTTED 6 X 12

RING,RETAINING BASIC,EXTERNAL 0.75

RING,RETAINING BASIC,EXTERNAL 0.984

RING, SNAP

RING, RETAINING, SHAFT, DIA. 1.375

RING, RETAINING, EXTERNAL SHR-66

RING,RETAINING BASIC,INTERNAL 2.047

RING,RETAINING BASIC,EXTERNAL 0.428

RING,RETAINING BASIC,EXTERNAL 0.428

RING, RETAINING

RING, RETAINING

RING-RETAIN,EXT,MSR-32(130296)

RING-RETAIN,EXT,MSR-32(130296)

RING-RETAIN,EXT,MSR-32(130296)

RING, RETAINING, VSH-237

SHAFT, INPUT 42T/20T/29T

WASHER,THRUST,1.187 X 1.500 X .0600

WASHER,THRUST,1.187 X 1.500 X .0600

WASHER,THRUST,0.446 X 0.88 X 0.025

SHIM, 1.18 OD X 0.995 ID

SHIM, 2.04 OD X 1.63 ID

SPACER, 19.4 X 34 X 2

BEARING, NEEDLE

BEARING, NEEDLE

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING

BEARING-BALL 6010 C3 50 X 80 X 10

BEARING-BALL 6010 C3 50 X 80 X 10

BEARING,BALL 6207 C3 35X72X17

BEARING,BALL 6207 C3 35X72X17

BEARING,BALL 6207 C3 35X72X17

BEARING, NEEDLE, CAGE ASSY

BEARING, BALL, 6012 C3 60 X 95 X 18

BEARING, PLAIN 10 X 12 X 25

BEARING, PLAIN 40 X 44 X 15

BEARING, PLAIN 40 X 44 X 15

BEARING, BALL 6303, 17 X 47 X 14

BEARING, BALL 6303, 17 X 47 X 14

BEARING, BALL 6303, 17 X 47 X 14

BEARING BALL 6206 RSH2 30X62X16

SPRING,COMPRESSION, .92 O.D. X 2.000

SPRING,COMPRESSION, .92 O.D. X 2.000

SPRING, COMPRESSION, 0.46 I.D. X 0.73

SPRING, COMPRESSION, 0.46 I.D. X 0.73

SPRING, TORSION, RETURN

SPRING, COMPRESSION 0.54 X 0.44 X 0.05 WIRE

SPRING, COMPRESSION

SPRING, TORSION

SPRING, WASHER

TUBE, SNORKEL MACH

GEAR, SECTOR 16T

GEAR-SECTOR,31T

FORK, PIVOT SHIFT REAR DIFF

PLATE, PARK 12-FACE

STAR, DETENT

SHAFT, IDLER 29T

SHAFT, REVERSE 29T
