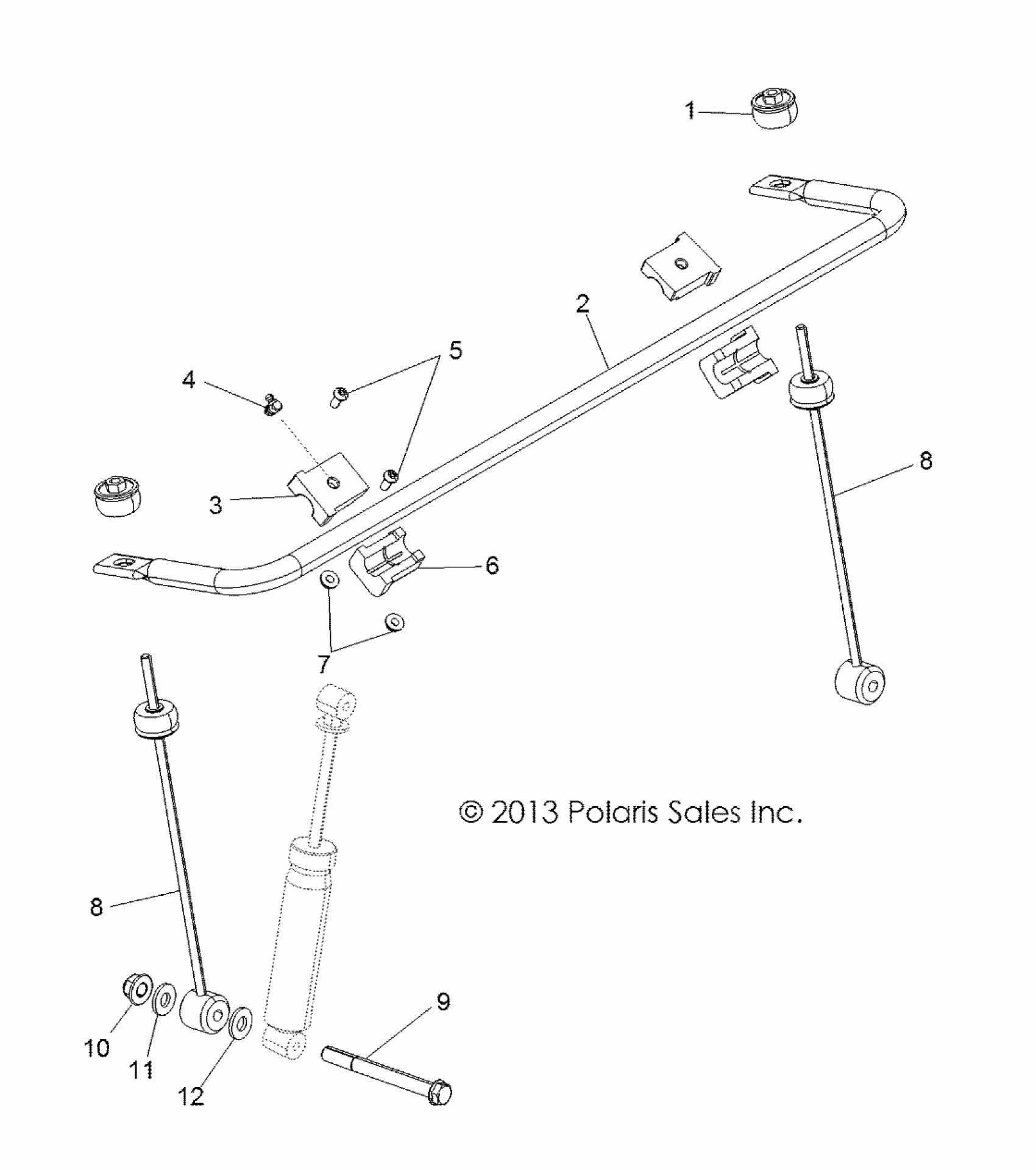

Polaris RZR 800 EFI - R13VH76AC/AD/AN/AS/EAI SUSPENSION, STABILIZER BAR, FRONT - R13VH76AC/AD/AN/AS/EAI (49RGRSTABILIZERFRT13RZR) Diagram

#

Description

Price

1

BUSHING, LINKAGE, TORSION BAR

5413295

$4.76

2

BAR, STABILIZER, FRONT, BLACK

5336152-329

$145.22

3

BUSHING, STABILIZER BAR, LOWER

5438284

$8.54

4

Fitting, Lubricating, 45 Degree

7080438

$10.32

5

BOLT

7518656

$3.97

6

BUSHING, STABILIZER BAR, UPPER

5439734

$8.54

7

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.97

8

ASM., LINK, STABILIZER BAR, FRONT

1542748

$76.89

8

ASM., LINK, STABILIZER BAR, FRONT

1542748

$76.89

9

BOLT [BUILT 4/22/13 AND BEFORE]

7518468

$5.56

9

BOLT [BUILT 4/23/13 AND AFTER]

7518610

$23.81

10

NUT-HXFL M10X1.25 8 ZTB NYL [BUILT 4/23/13 AND AFTER]

7547333

$1.59

10

NUT, FLANGE [BUILT 4/22/13 AND BEFORE]

7547313

$1.19

11

WASHER, FLAT

7555852

$2.38

12

SPACER [BUILT 4/22/13 AND BEFORE]

5334945

$3.97
