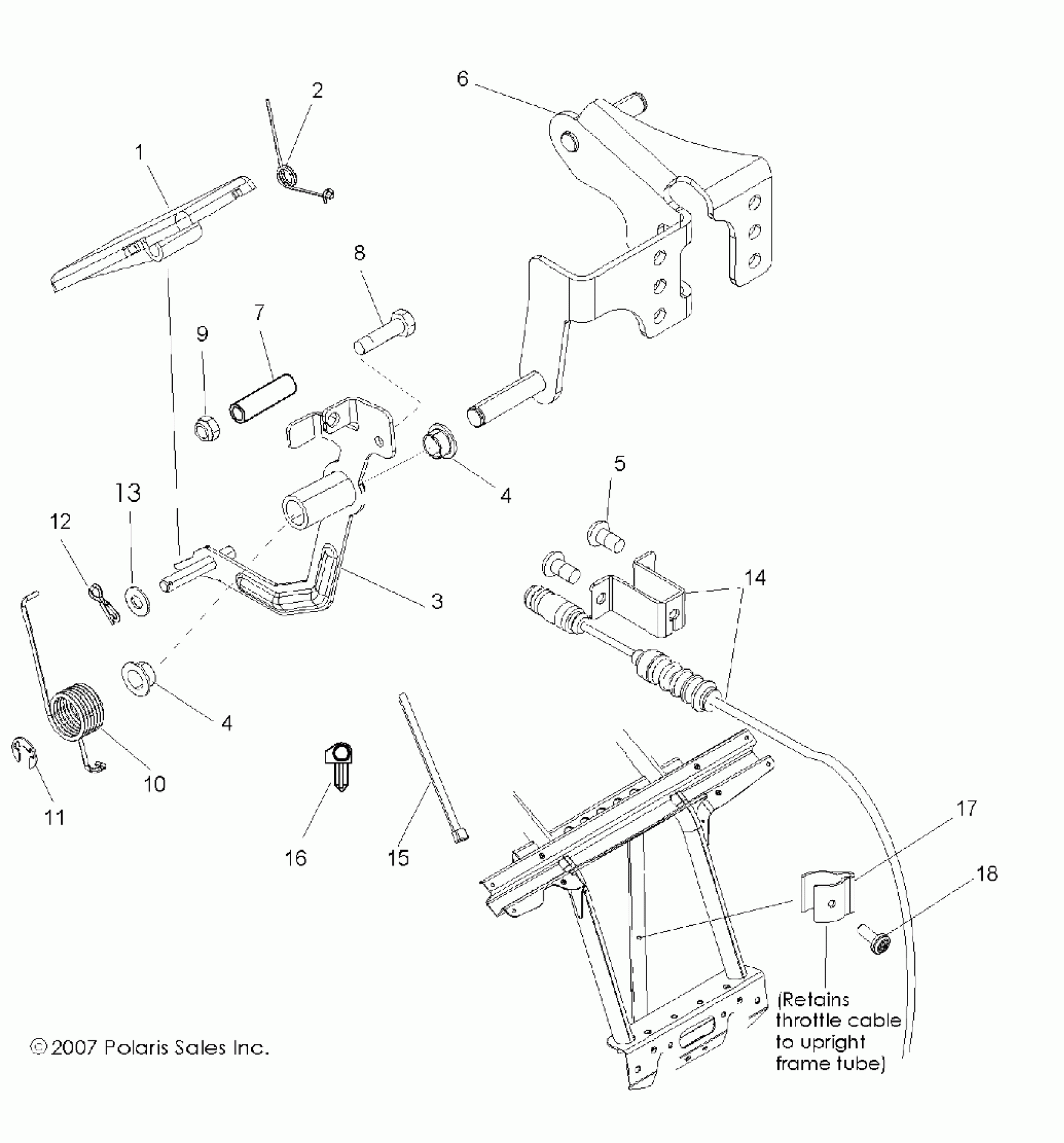

Polaris RZR 800 EFI - R08VH76AD/AG THROTTLE PEDAL - R08VH76AD/AG (49RGRTHROTTLEPEDAL08VISTA) Diagram

#

Description
Price

1

Pedal, Throttle

5437042

Unavailable

2

Spring, Throttle

7043078

$10.51

3

Pedal, Throttle, Matte' Black

1015482-458

$319.99

4

Bushing, Pedal Pivot

5437284

$12.70

4

Bushing, Pedal Pivot

5437284

$12.70

5

SCREW

7515177

$3.17

6

Mount, Pedal

1015840

$25.79

7

Spacer, Throttle

5135416

Unavailable

8

SCREW

7512130

$3.97

9

Nut, Flange

7542153

$1.59

10

Spring, Accelerator

7043418

$8.08

11

RING, RETAINING, E

7710901

$8.08

12

PIN-CLIP,14MM

7661140

$1.19

13

WASHER

7555954

$4.76

14

Cable, Throttle

7081341

$84.98

15

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

16

CLIP, SNAP-IN

7080756

$4.76

17

Retainer, Cable

5437368

$7.79

18

SCREW

7512024

$4.76
